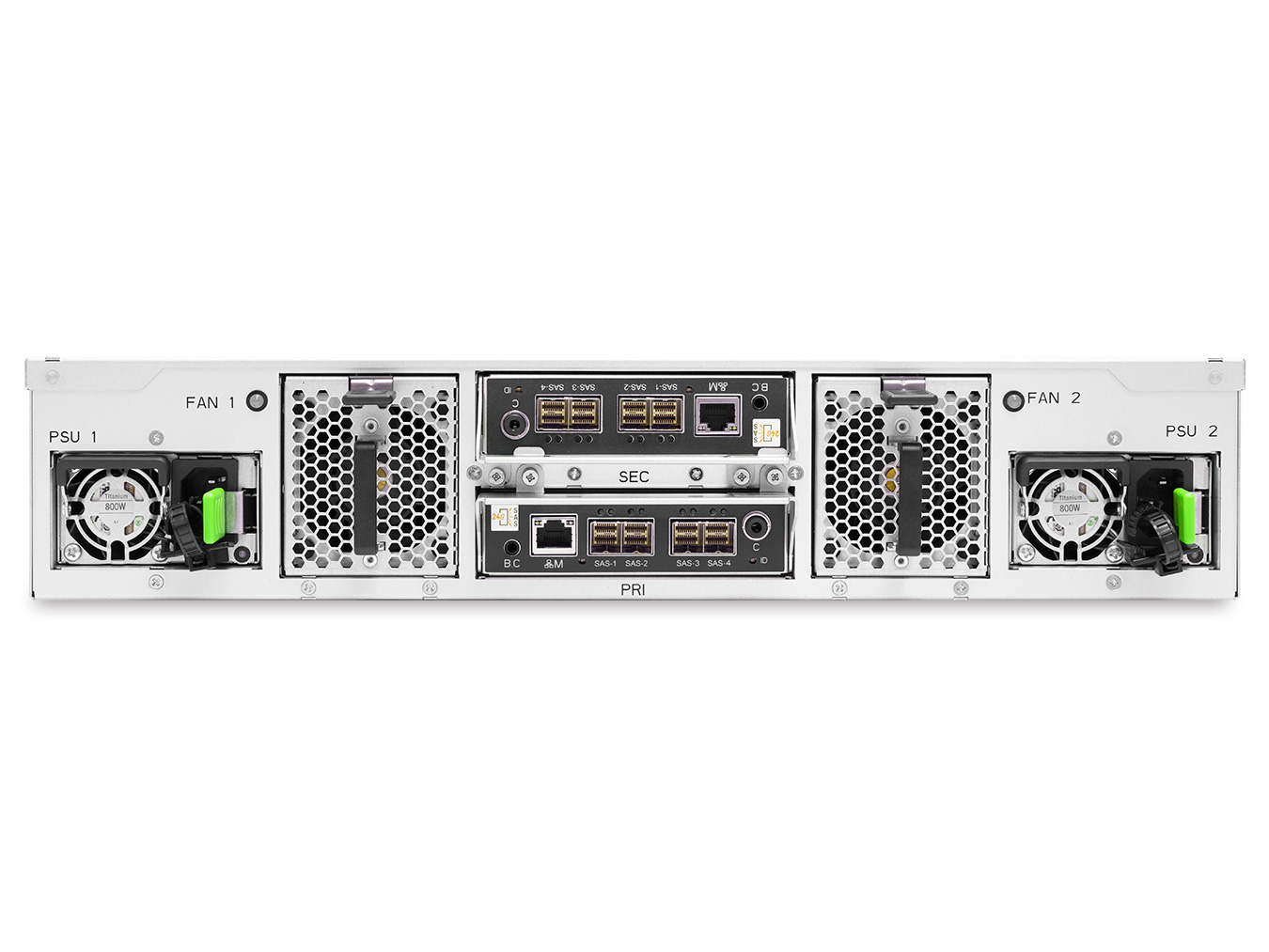

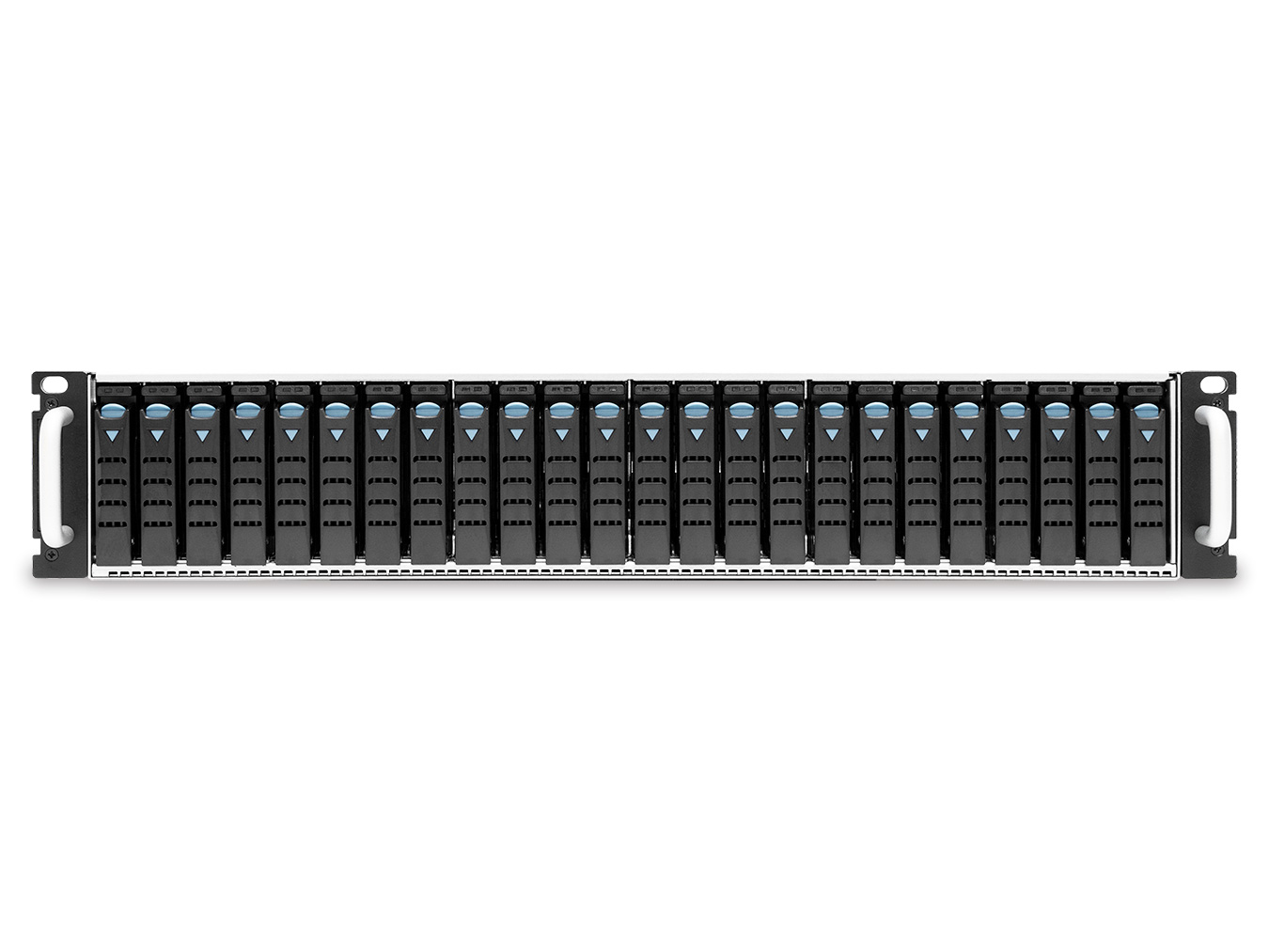

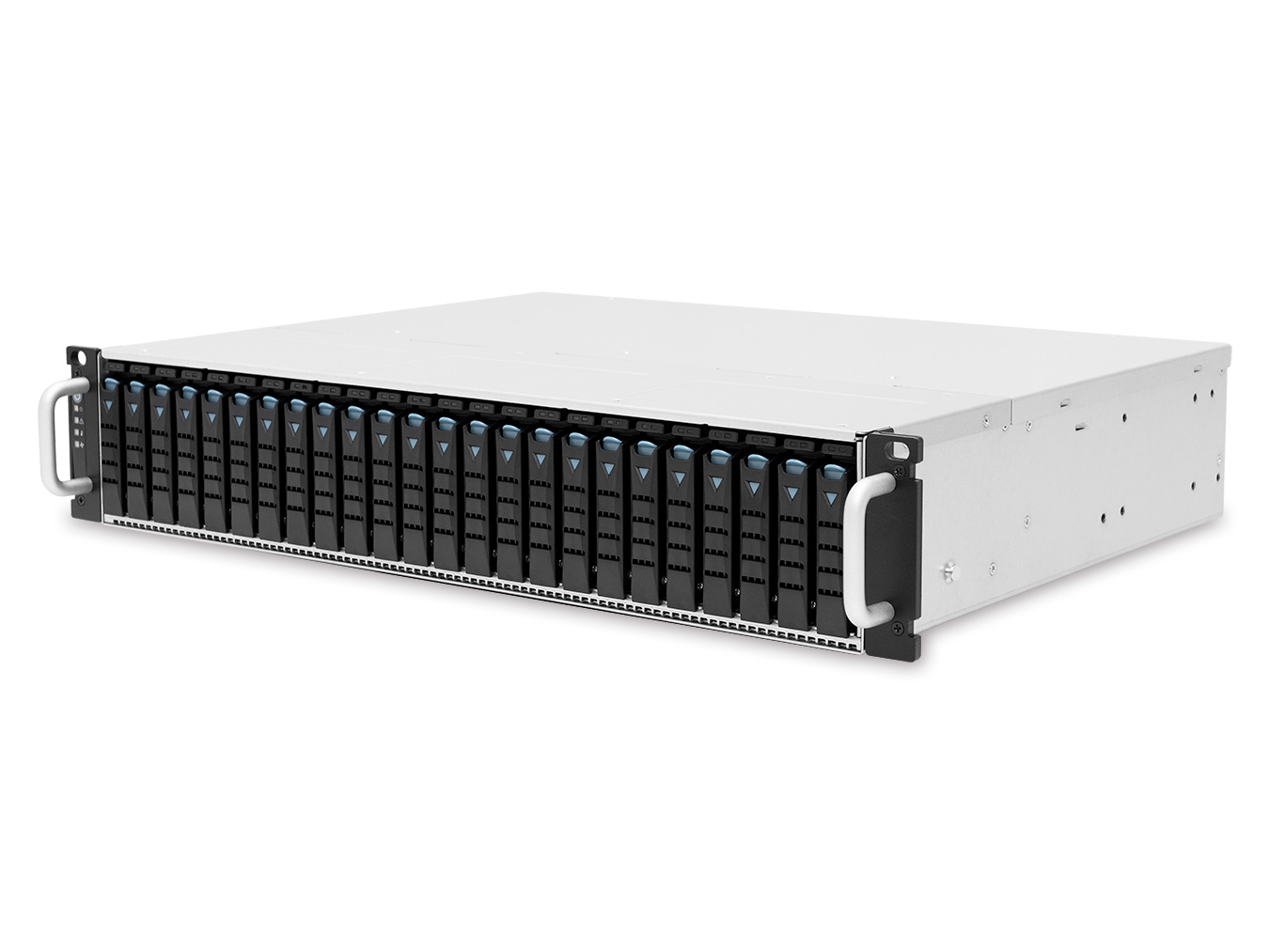

J2024-06-35X

J2024-06-35X is an innovative 2U24 JBOD that integrates 2.5" SAS (12G, dual) / SATA (6G, single) disk drive, Broadcom SAS35X-Series expander chip, and board-to-board connection design into a compact and stable system with exceeding productivity.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

Ruggedized design (Internal board to board connection)

FEATURE

Tool-less design

FEATURE

Hot-swap expander modules, drives, PSU, fans

FEATURE

Short-depth

FEATURE

Clear front panel LED indicators

FEATURE

Optimized thermal solution

FEATURE

BMC onboard

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

General

Number of Expander

Single/Dual

Expander Chip

LSI SAS35X40

Host/Expansion Interfaces

4 x mini SAS HD (SFF-8644) per expander module

Drivers Supported

Drive Interface

• 12Gb & 6Gb SAS if using dual expanders

• 12Gb & 6Gb SAS/SATA if using single expander

Form Factor

SFF 2.5”

Administration/Management

Admin/Firmware Upgrade

• In-band & Serial port interface

• IEM port

LED Indicators, Audible Alarm

Yes

Hot Swap and Redundancy

Drive Bays

24 hot-swap

Cooling

2x 60x56mm hot-swap fans

Power Supply

• 550W 1+1 hot-swap redundant 80+ Platinum

• 800W 1+1 hot-swap redundant 80+ Titanium

Power Entry

Dual AC Inlet

Expander Modules

Dual expanders (Optional)

Electrical and Enviromental

A/C Input

Platinum:

• 100~127V~, 50/60Hz, 7.0A

• 200~240V~, 50/60Hz, 3.5A

Titanium:

• 100-127V~,50/60Hz,10A

• 200-240V~,50/60Hz, 5A

Operating Environment

• Temperature: 0ºC to 35ºC

• Relative humidity: 20% to 80%

Non-operating Environment

• Temperature: -20ºC to 60ºC

• Relative humidity: 10% to 90%

Physical Specification

Dimension (W x D x H)

• mm: 438 x 345 x 87.5

• inches: 17.2 x 13.6 x 3.4

Gross Weight (w/PSU, Rail ; w/o Pallet, Disks)

• kgs: 20.05

• lbs: 44.2

Packaging Dimensions (W x D x H)

• mm: 605 x 640 x 318

• inches: 23.8 x 25.2 x 12.5

Mounting

20” rail

* All specifications are subject to change without notice.

SKU Information	Description
XJ1-20246-01	2U 24 x 2.5" hot-swap bays, hot-swap JBOD with single SAS 12G expander controller, single BMC, Tool-less HDD tray, 550W 1+1 hot-swap redundant 80+ Platinum, Slide Rail Kit (35X series)
XJ1-20246-02	2U 24 x 2.5" hot-swap bays, hot-swap JBOD with dual SAS 12G expander controller, dual BMC, Tool-less HDD tray, 550W 1+1 hot-swap redundant 80+ Platinum, Slide Rail Kit (35X series)
XJ1-20246-03	2U 24x 2.5” hot-swap bays, hot-swap JBOD with single SAS 12G expander controller, single BMC, tool-less HDD tray, 550W 1+1 hot-swap redundant 80+ Platinum, adjustable plate (35X series)
XJ1-20246-04	2U 24x 2.5” hot-swap bays, hot-swap JBOD with dual SAS 12G expander controller, dual BMC, tool-less HDD tray, 550W 1+1 hot-swap redundant 80+ Platinum, adjustable plate (35X series)
XJ1-20246-05	2U 24 x 2.5" hot-swap bays, hot-swap JBOD with single SAS 12G expander controller, single BMC, Tool-less HDD tray, 800W 1+1 hot-swap redundant 80+ Titanium, Slide Rail Kit (35X series)
XJ1-20246-06	2U 24 x 2.5" hot-swap bays, hot-swap JBOD with dual SAS 12G expander controller, dual BMC, Tool-less HDD tray, 800W 1+1 hot-swap redundant 80+ Titanium, Slide Rail Kit (35X series)
FRU Parts	Description
M06-1339-012	6056 fan module with packing (24 pcs in packing)
M06-1339-013	Expander module with packing (12 pcs in packing)
M06-00128-33	Front door without packing
PM-C00000083	550W redundant power supply module(80+ Platinum)
PM-A00000132	800W redundant power supply module(80+ Titanium)
H5541S100003	18” slide rail GSLIDE-4101-43 (for RMC-2E, J2012-03/J2024-06/J2012-04/J2024-07)
M06-1355-017	Adjustable plate (support rack post: 400-500mm; 30 sets in packing)
M06-1339-019	Expander dummy cover with packing (20 pcs in packing)
BBP-HD20033A	J2024-06-35X / J2024-07-04X 2U24 backplane BP-HD2H18-TY without packing
