HP202-KT

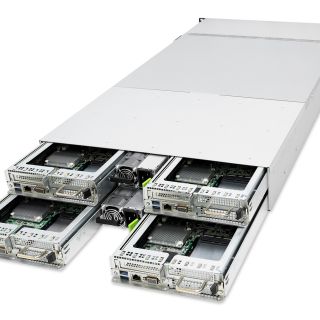

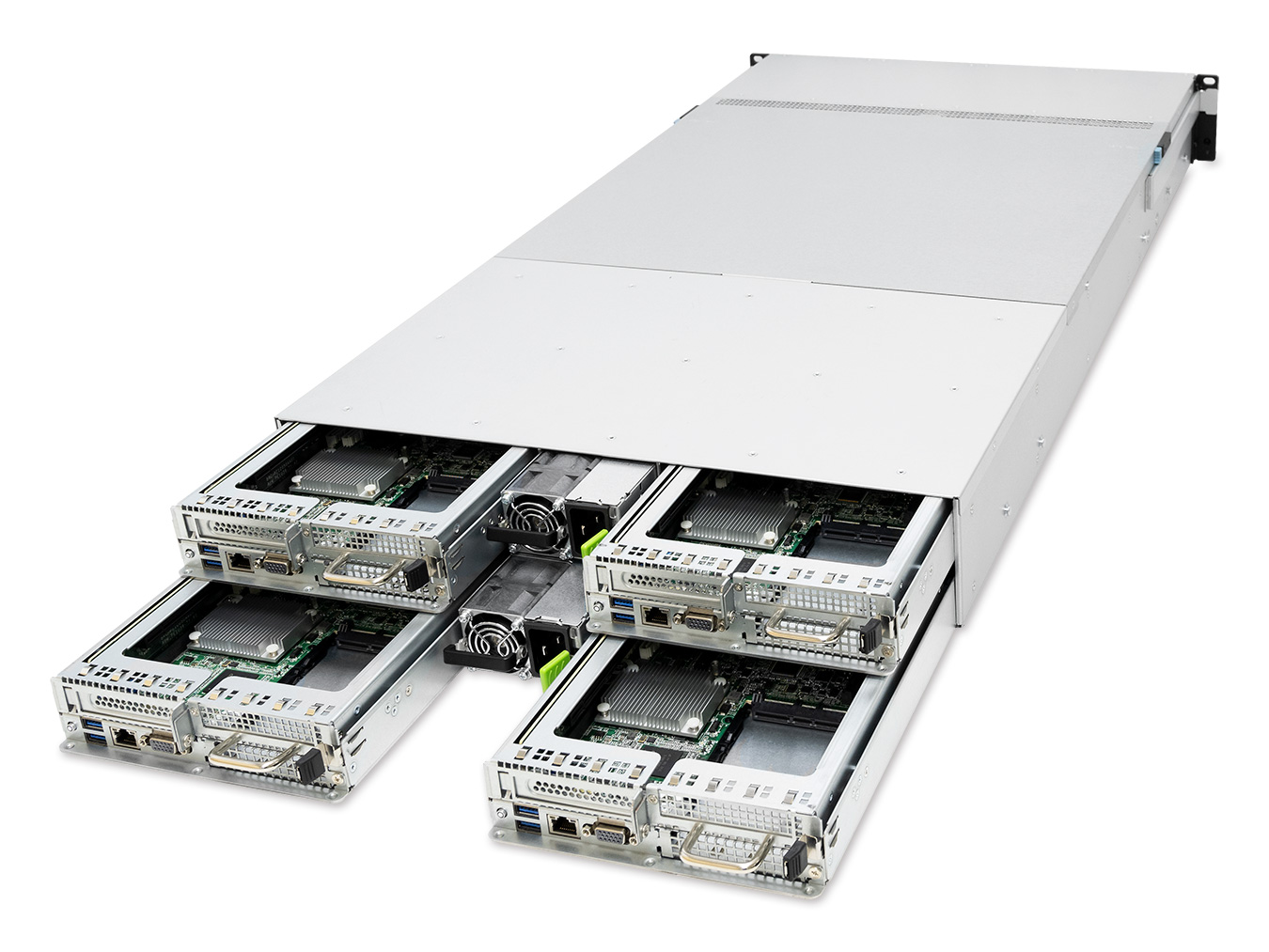

HP202-KT is a 2U 4-Node server solution with 12x 3.5” SAS/SATA bays. It comes with four AIC Kratos MB supports dual Intel® Xeon® Scalable Processors (Sapphire Rapids) family. Up to 3x PCIe X16 add-on cards for Network/HBA/RAID… features expansion. It has the optimized design for Hyper-Converged applications. Flexible Deployment/scale out one node at a time and transferring legacy software into cloud service easily.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

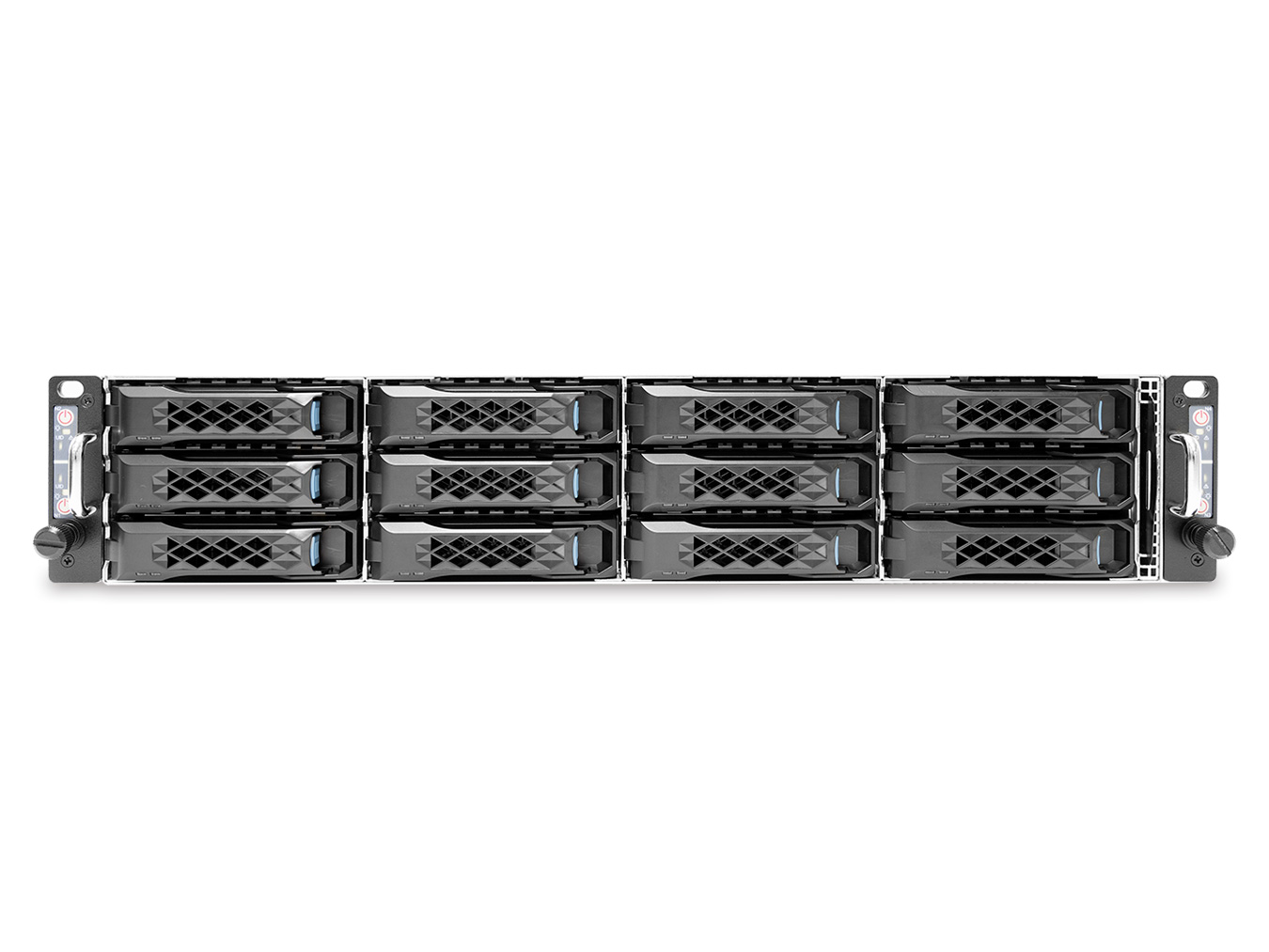

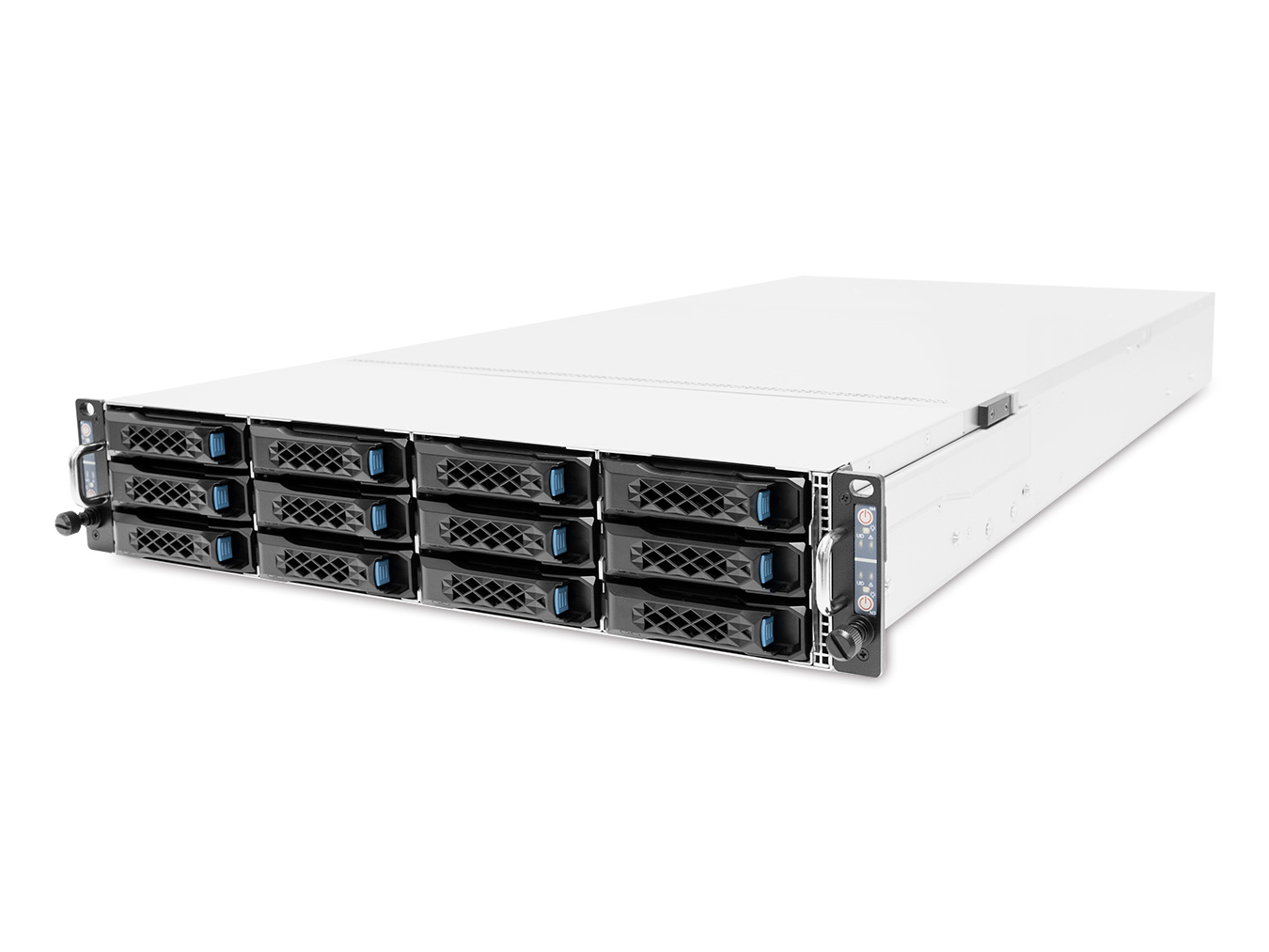

2U 4-Node hybrid storage server supports 12 hot swap 3.5” SATA/SAS drive bays

FEATURE

Supports 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids)

FEATURE

Supports 4th Gen. Intel® Xeon® Scalable processors (Sapphire Rapids)

FEATURE

Maximizing the use of the processor, memory, and add-on cards in one single system

FEATURE

Onboard Baseboard Management Controller for system management and IPMI control

FEATURE

3 x PCIe X16 extensions on each node

FEATURE

Front-to-back airflow and easy swap redundant fans to provide optimal thermal conditions

Specification

Specification
SKU
FRU

SPECIFICATION

Main

Sub

Details

Dimensions

438 x 850 x 87

inches

17.2 x 33.5 x 3.4

Motherboard

AIC Server Board Kratos

Processor

Processor Support

• 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids)

• 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids)

• Supports CPU TDP up to 350W

(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)

CPU Interconnection

12.8, 14.4, and 16GT/s

Socket Type

Socket E (LGA 4677)

Chipset Support

Intel® Emmitsburg PCH

System Memory (Per Node)

• DDR5 4800MHz (1DPC); DDR5 5600MHz (1DPC) by Emerald Rapids CPU

• Total 16 memory slots; 8 slots per CPU (1DPC)

Front Panel (Per Node)

Power on/off button

LEDs (Per Node)

Power LED / Alert LED / UID LED

Drive Bays

External

12 x 3.5" hot-swap (3 x drives per node)

Internal

2 x M.2(NGFF)/ M-Key/ 2280/ Support SATA or PCIe 4.0 X4

Backplane

12 x SAS/SATA 12G

Expansion Slots (Per Node)

• 2 x PCIe X16 slots (HHHL)

• 1 x OCP 3.0 bay (PCIe X16 width)

Riser Cards

System BIOS

BIOS Type

AMI UEFI BIOS

BIOS Features

• ACPI

• PXE

• WOL

• AC loss recovery

• BIOS recovery

• IPMI 2.0 KCS mode interface

• SRIOV

• SMBIOS

• TPM

• Serial console redirection

• PCIe hotplug

On-board Devices

SATA

6 SATA to front edge connectors (SATA 6Gb/s)

BMC

Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor

• Baseboard Management Controller

• Intelligent Platform Interface 2.0 (IPMI 2.0)

• iKVM, Media Redirection, IPMI over LAN, Serial over LAN

• HTML5

• Redfish

• SMASH Support

Network Controllers

• Realtek RTL8211F GbE PHY for dedicated management port

• Intel® i210 GbE NIC for shared management port

Graphics

Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor

• PCIe Graphic/2D Controller

• 1920x1200@60Hz 32bpp

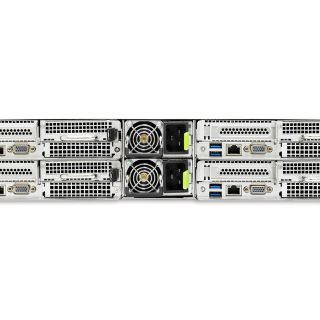

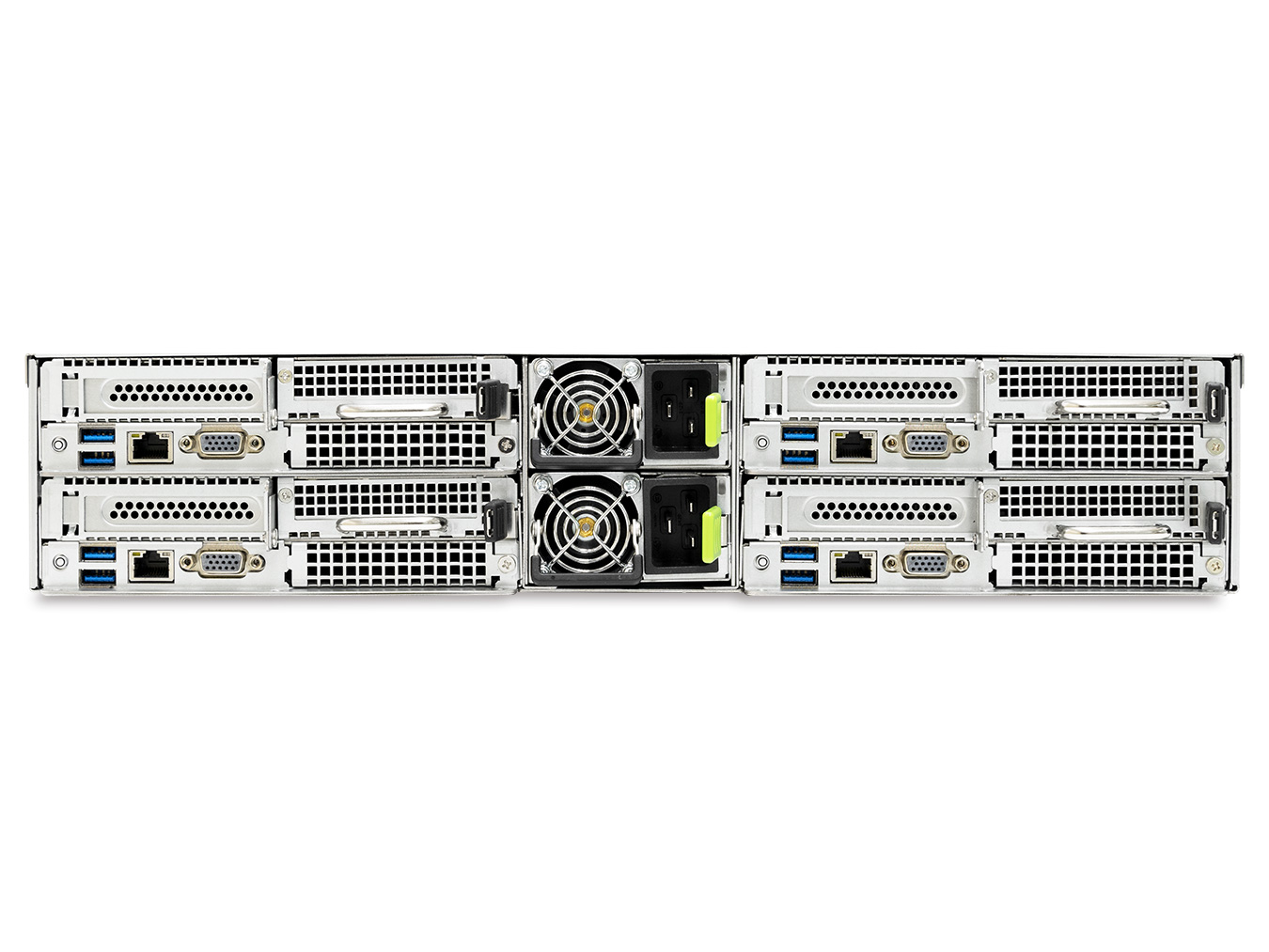

Rear I/O

LAN

1 x GbE RJ45 dedicated/shared BMC management

USB

2 x USB 3.2 Gen1 Type A

Video Output

rear-i-o-video-output

Others

TPM Support

Power Supply

3000W 1+1 CRPS 80+ Platinum

System Cooling

4 x 80x80mm easy swap fans

System Management

Environmental Specifications

• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)

• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)

• Storage operating humidity : 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

99.2

Packaging Dimensions (W x D x H)

585 x 1200 x 284

inches

23 x 47.2 x 11.2

Mounting (Standard)

33.46" tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XP1-P202KT01	2U, 12x 3.5" SAS/SATA (3 per node), 4x Kratos (dual socket, 16x DDR5 DIMM slots, dedicated 1GbE BMC, AST2600, 2x PCIe x16, 1x OCP 3.0 x16 width), 3000W 1+1 redundant 80+ Platinum, 8x CPU heatsink, 33" slide rail, w/o bezel, w/o PSU cord
XP1-P202KT02	2U, 12x 3.5" SAS/SATA (3 per node), 4x Kratos (dual socket, 16x DDR5 DIMM slots, dedicated 1GbE BMC, AST2600, 2x PCIe x16, 1x OCP 3.0 x16 width), 3000W 1+1 redundant 80+ Titanium (TW vendor), 8x CPU heatsink, 33" slide rail, w/o bezel, w/o PSU cord
XP1-P202KT03	2U, 12x 3.5" SAS/SATA (3 per node), 4x Kratos (dual socket, 16x DDR5 DIMM slots, dedicated 1GbE BMC, AST2600, 2x PCIe x16, 1x OCP 3.0 x16 width), 3000W 1+1 redundant 80+ Titanium (non TW vendor), 8x CPU heatsink, 33" slide rail, w/o bezel, w/o PSU cord

FRU Information
Standard Parts List	Part Number	Description
Fan	FC-A00001021	8080 fan module
Power Supply	PM-A00000131	3000W CRPS platinum redundant power supply module
Rail	H5541T100009	33" tool-less slide rail
