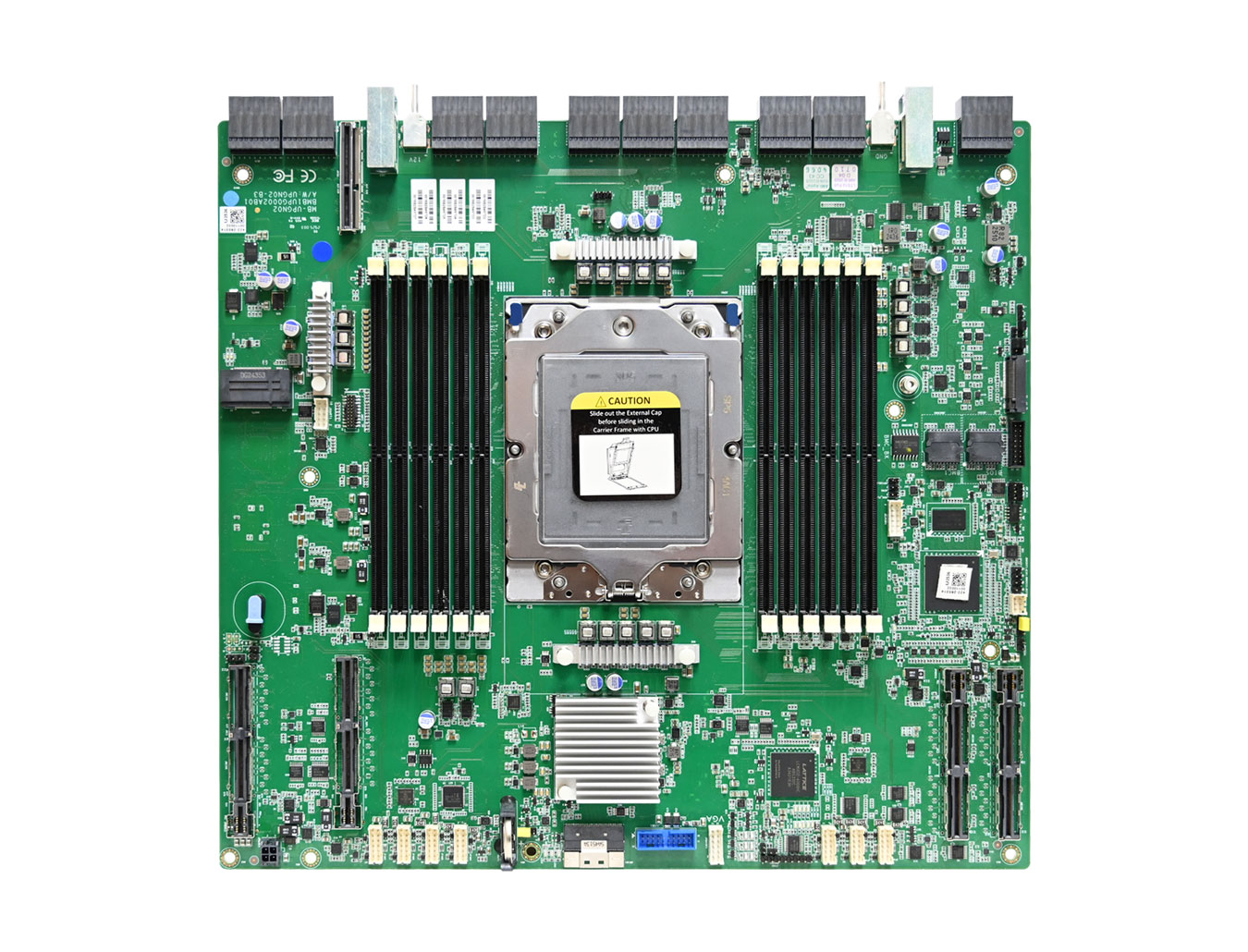

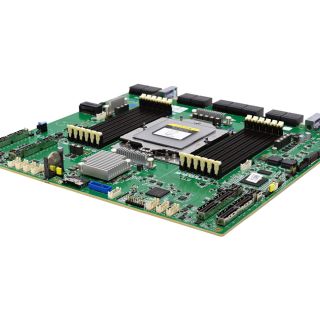

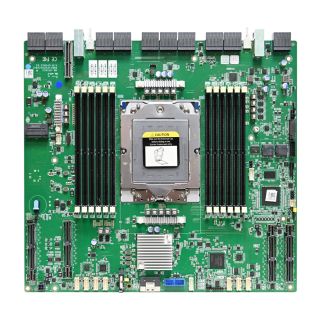

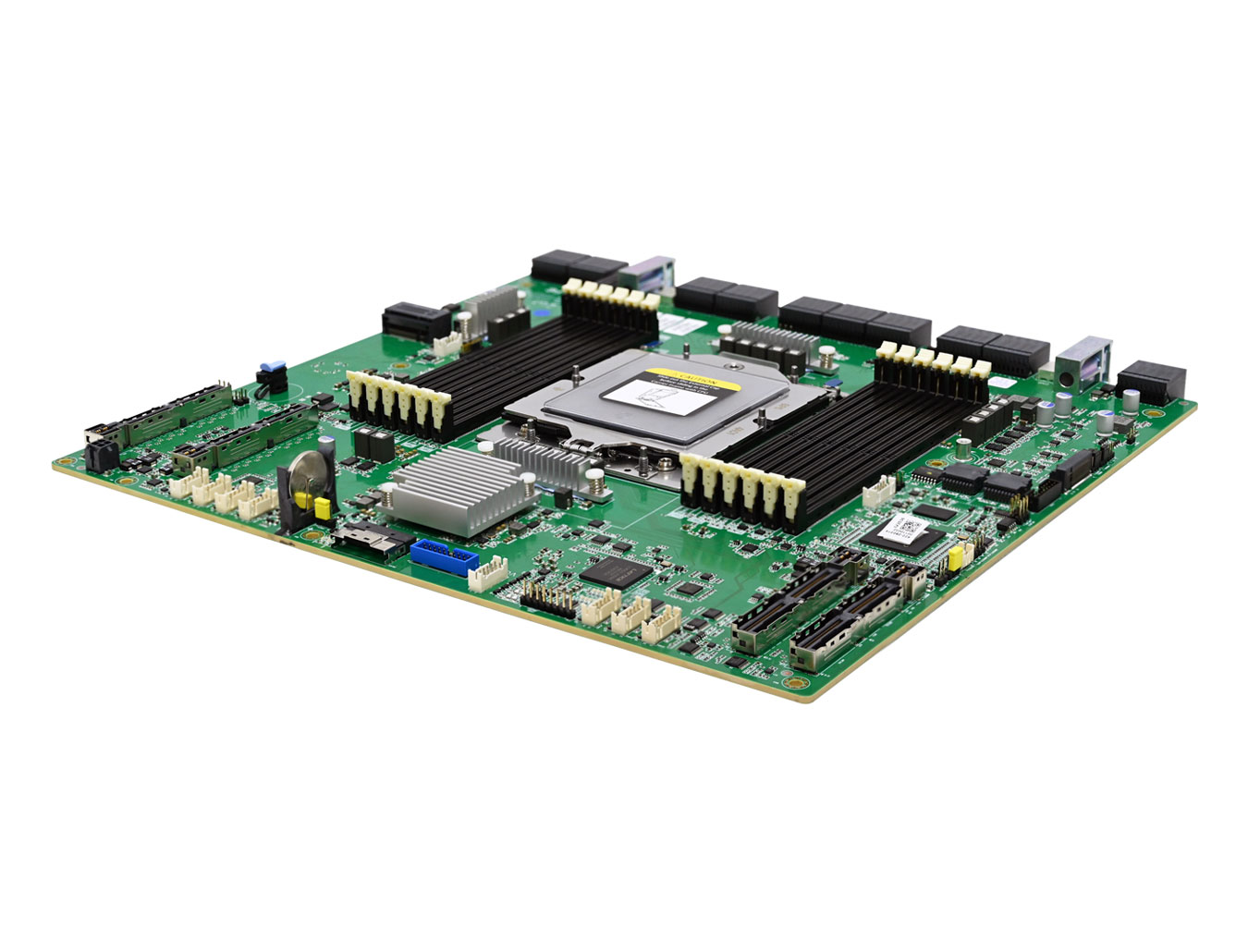

Hercules
Hercules supports single AMD EPYC™ 9004/9005-series processors with up to 128 CPU cores and TDP up to 400W. It supports up to 3TB DDR5 3DS RDIMMs with 12 memory slots and memory speeds up to 6400MHz.
The high-speed expansion I/O includes 10 x ExaMax connectors to backplane (64 x PCIe Gen5 lanes), and 3 x Multi-trak connectors PCIe Gen5/CXL x16 lanes (48 x PCIe Gen5 lanes), 1 x Multi-trak connector PCIe Gen5 x16 lane for AIC design internal Ethernet module (2 x 100GbE), 2 x M.2 2280 PCIe Gen3. Security features include TPM2.0 onboard, TCM2.0 and PFR by optional.
The high-speed expansion I/O includes 10 x ExaMax connectors to backplane (64 x PCIe Gen5 lanes), and 3 x Multi-trak connectors PCIe Gen5/CXL x16 lanes (48 x PCIe Gen5 lanes), 1 x Multi-trak connector PCIe Gen5 x16 lane for AIC design internal Ethernet module (2 x 100GbE), 2 x M.2 2280 PCIe Gen3. Security features include TPM2.0 onboard, TCM2.0 and PFR by optional.
KEY FEATURE
Embedded components for 5+ year long life
FEATURE
Embedded components for 5+ year long life
Supports 2 x RJ45 10GbE
FEATURE
Supports 2 x RJ45 10GbE
Supports 1 x Multi-trak connector PCIe Gen5 x16 lane for AIC design internal Ethernet module (2 x 100GbE) for 2 x node high speed internal data negotiation
FEATURE
Supports 1 x Multi-trak connector PCIe Gen5 x16 lane for AIC design internal Ethernet module (2 x 100GbE) for 2 x node high speed internal data negotiation
Supports 3 x Multi-trak connectors PCIe Gen5/CXL x16 lanes, total 48 x PCIe Gen5 lanes
FEATURE
Supports 3 x Multi-trak connectors PCIe Gen5/CXL x16 lanes, total 48 x PCIe Gen5 lanes
Supports 10 x ExaMax connectors to backplane, total 64 x PCIe Gen5 lanes
FEATURE
Supports 10 x ExaMax connectors to backplane, total 64 x PCIe Gen5 lanes
Supports 12 x DDR5 DIMM slots for max. memory performance
FEATURE
Supports 12 x DDR5 DIMM slots for max. memory performance
Supports AMD EPYC™ 9004/9005-series processor Genoa/Turin based on the AMD "Zen4/Zen5" microarchitecture for highest server performance
FEATURE
Supports AMD EPYC™ 9004/9005-series processor Genoa/Turin based on the AMD "Zen4/Zen5" microarchitecture for highest server performance
Specification
SPECIFICATION
Main
Sub
Details
System
Dimensions
mm : 317.8 x 293
inches : 12.5 x 11.5
inches : 12.5 x 11.5
Processor-Support
Single AMD EPYC™ 9004/9005-series processor
CPU-TDP
400W
UPI-Speeds
Socket-Type
Socket SP5
System-Memory
DDR5 with ECC
• 6000MHz (1DPC RDIMM by Turin)
• 4800MHz (1DPC RDIMM by Genoa) Total 12 memory slots Supports up to 3TB (3DS RDIMM)
• 6000MHz (1DPC RDIMM by Turin)
• 4800MHz (1DPC RDIMM by Genoa) Total 12 memory slots Supports up to 3TB (3DS RDIMM)
Expansion-Slots
Total support 128 lanes of PCIe5.0
• PCIe slots
- 10 x ExaMax connectors to backplane, total 64 x PCIe Gen5 lanes
- 3 x Multi-trak connectors PCIe Gen5/CXL x16 lanes for PCIe slots
- 1 x Multi-trak connector PCIe Gen5 x16 lanes for AIC design internal Ethernet module (2 x 100GbE)
• M.2
- 2 x M.2 2280 PCIe Gen3

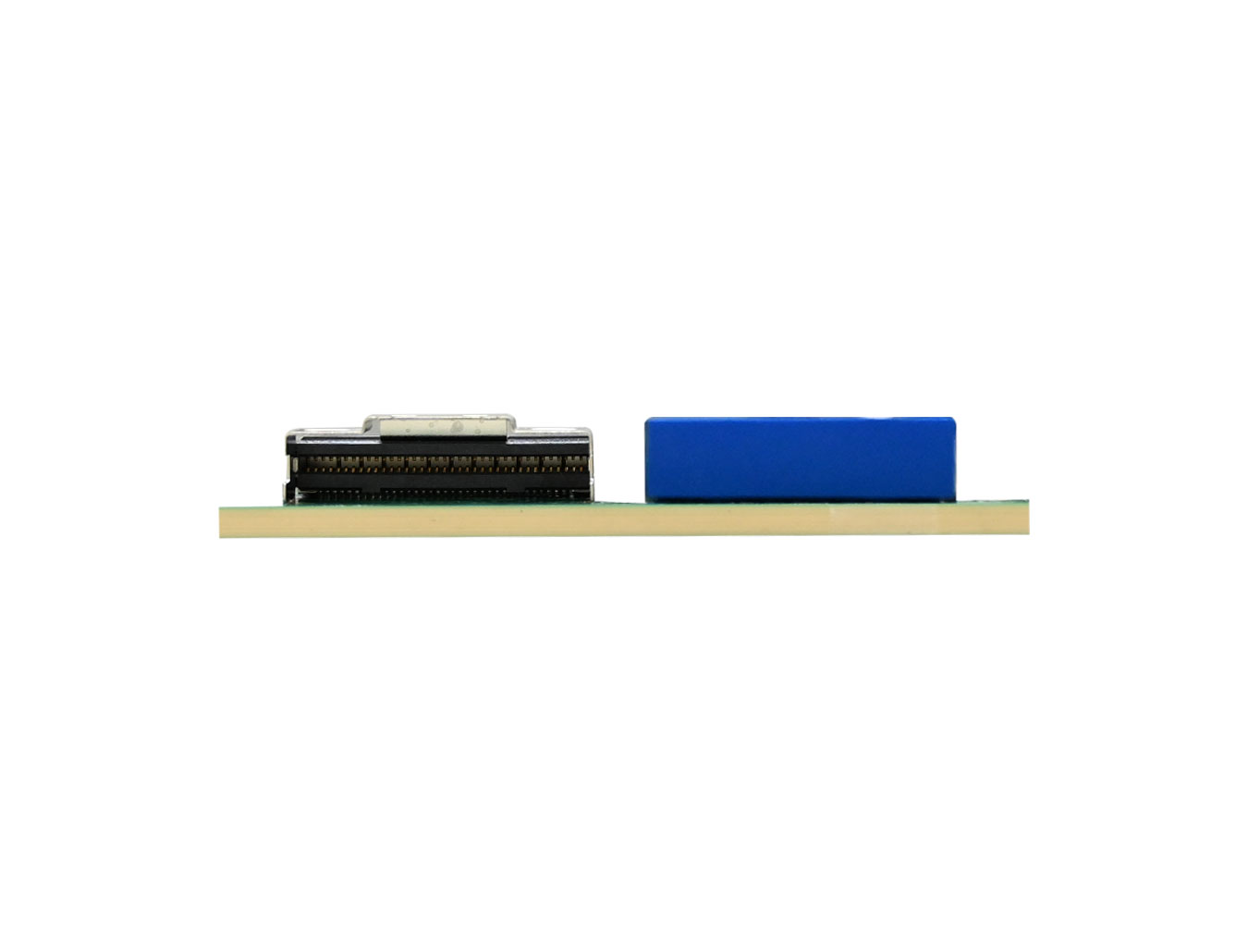

• Rear IO
- 2 x USB 3.1 Type A connectors
• PCIe slots
- 10 x ExaMax connectors to backplane, total 64 x PCIe Gen5 lanes
- 3 x Multi-trak connectors PCIe Gen5/CXL x16 lanes for PCIe slots
- 1 x Multi-trak connector PCIe Gen5 x16 lanes for AIC design internal Ethernet module (2 x 100GbE)
• M.2
- 2 x M.2 2280 PCIe Gen3
• Rear IO
- 2 x USB 3.1 Type A connectors
System-BIOS
BIOS-Type
AMI UEFI BIOS (64M ROM size)
BIOS-Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hot plug
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hot plug
On-board-Devices
SATA
BMC
ASPEED AST2600
Network-Controller
Intel® I210 GbE Ethernet Controller
Graphics
• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920 x 1200 @60Hz 32bpp
• Resolution up to 1920 x 1200 @60Hz 32bpp
Additional-Information
TPM 2.0 - NUVOTON NPCT760AABYX
Input-Output
SATA
LAN
• 2 x RJ45 connectors for dual port 10GbE
• 1 x RJ45 connector (for BMC management port)
• 1 x RJ45 connector (for BMC management port)
USB
2 x USB 3.2 Gen1
Display
1 x VGA connector
Serial-Port
1 x SFF-8654 Slimline connector (for rear I/O board connection)
Others
• PCIe slots
- 10 x ExaMax connectors to backplane, total 64x PCIe Gen5 lanes
- 3 x Multi-trak connectors PCIe Gen5/CXL x16 lanes for PCIe slots
- 1 x Multi-trak connector PCIe Gen5 x16 lanes for AIC design internal Ethernet module (2 x 100GbE)
• M.2
- 2 x M.2 2280 PCIe Gen3
- 10 x ExaMax connectors to backplane, total 64x PCIe Gen5 lanes
- 3 x Multi-trak connectors PCIe Gen5/CXL x16 lanes for PCIe slots
- 1 x Multi-trak connector PCIe Gen5 x16 lanes for AIC design internal Ethernet module (2 x 100GbE)
• M.2
- 2 x M.2 2280 PCIe Gen3
Additional-Information
Security
• Security
- 1 x M.2 connector available for PFR extension (Optional)
- TCM 2.0 with 2x8 connector
- TPM 2.0 onboard
- 1 x M.2 connector available for PFR extension (Optional)
- TCM 2.0 with 2x8 connector
- TPM 2.0 onboard
* All specifications are subject to change without notice.
|
MB_SKU |
Ordering Information |
Description |
|---|---|---|
|
Hercules(A) |
BMB1UPG0002A |
PCBA/MOTHER BOARD/MB-UPGN02/HERCULES/VER:C01(MP) AMD SP5 CPUX1/TURIN/PCIE X16 MXIO*4/SLIMLINEX8CONN*1/M.2 2280*2/DDR5*12 |
