HA2026-HC

Home Products Storage High Availability Server High Availability Storage Server w/ AMD EPYC™

HA2026-HC is a 2U26 NVMe Cluster-in-a-box solution that provides high-availability in an active-active configuration. It comes with two AIC Hercules Server Boards (one board per node), each supporting AMD EPYC™ 9000 SP5 processor product family. Both nodes process I/Os and provide simultaneous and balanced access to the logical devices, which increases overall cluster performance significantly. When failover occurs, the secondary node automatically takes over the devices, client connections, and all processes/services of the system. It provides protection from loss of revenue when access to data resources and critical business applications are disrupted. The HA2026-HC eliminates SPOFs (single point of failures). Its support on Gen5 NVMe drives allows faster access to data. It is optimized for mission-critical, enterprise-level storage applications.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

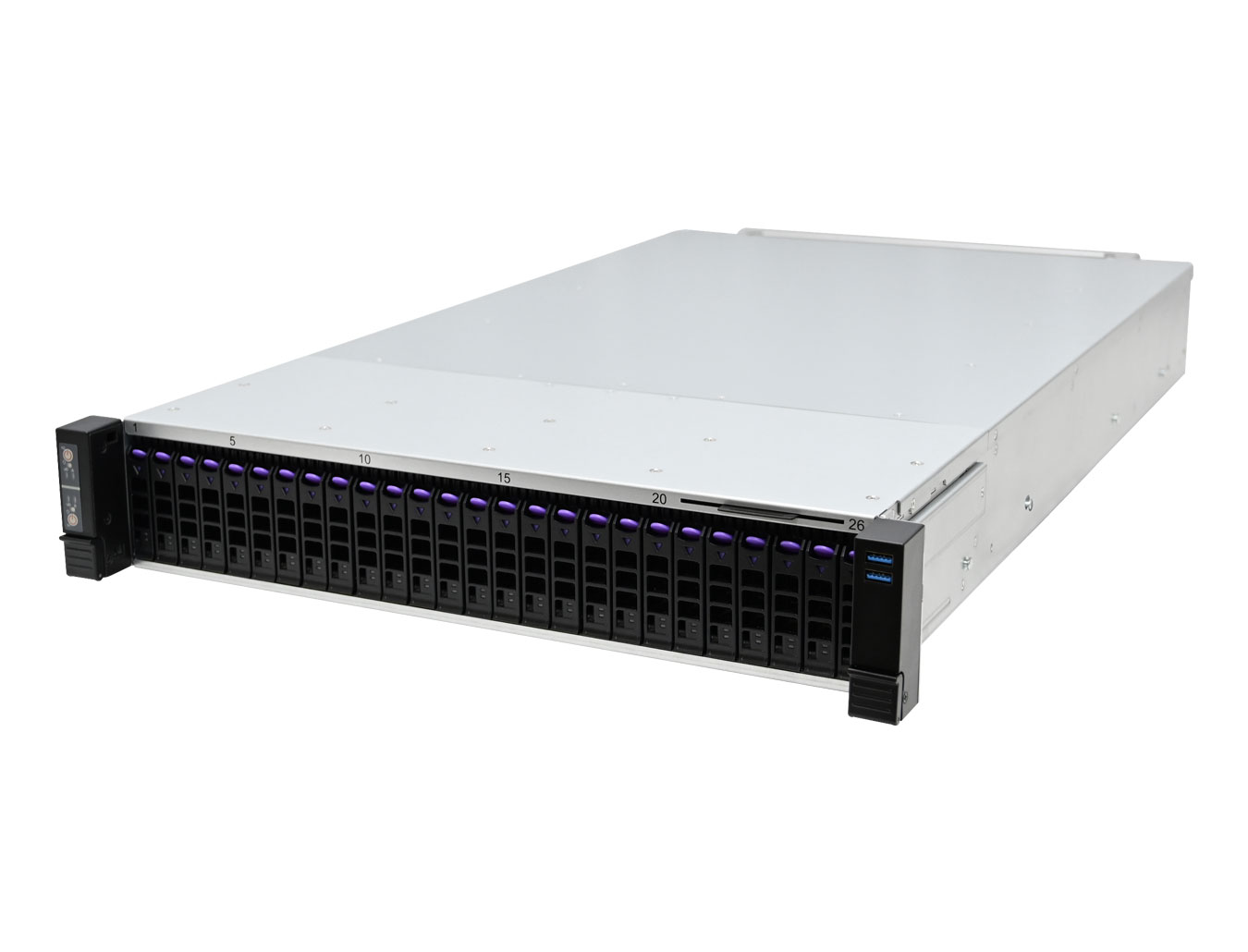

2U 2-Node high-availability storage server support 26 hot swap PCIe Gen5 U.2 dual port drives

FEATURE

Fully redundant, fault-tolerant system supporting hot swappable compute nodes and storage drives

FEATURE

Two compute nodes, Active-Active configuration, each supporting AMD EPYC™ 9000 SP5 processor

FEATURE

Supports DDR5 & PCIe Gen5

FEATURE

Dual 100GbE link between nodes for communication and fail-over

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

Dimensions

438 x 750 x 88

inches

17.2 x 29.5 x 3.5

Motherboard

AIC Server Board Hercules

Processor

Processor Support

AMD EPYC™ 9000 series processor - Genoa/Turin

• Supports CPU TDP 400W

(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)

Socket Type

Socket SP5

System Memory

• 12 x memory channels per CPU, 1 x DIMM per channel

• 12 x DIMM slots support: DDR5 4800 MT/s(1DPC) by Genoa; DDR5 6000 MT/s(1DPC) by Turin

Front Panel

• Power button

• System ID LED

• Power status LED

• System alert LED

• 1 x USB3.2 Gen1x1 (per node)

LEDs

Front panel :

• Power status LED

• System alert LED

• System ID LED

Back panel :

4 x Bi-color LED, red and green

Drive Bays

External

26 x PCIe Gen5 dual port NVMe

Internal

M-Key 2280 (PCIe Gen3 x1)

Backplane

1 x 26-bay NVMe PCIe Gen5

Expansion Slots

PCIe 5.0

3 × PCIe Gen5 x16 (FHHL) via Cable CEM

System BIOS

BIOS Type

AMI UEFI BIOS

BIOS Features

• ACPI

• PXE

• AC loss recovery

• IPMI KCS interface

• SMBIOS

• Serial console redirection

• SRIOV

• TPM

• PCIe hotplug

On-board Devices

BMC

Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor

• Baseboard Management Controller

• Intelligent Platform Interface 2.0 (IPMI 2.0)

• iKVM, Media Redirection, IPMI over LAN, Serial over LAN

• HTML5

• Redfish

Network Controllers

• Realtek RTL8211FS for BMC dedicated management port

• Broadcom 57416 for dual port 10G

• Broadcom CM57508 for node to node dual port communication

Graphics

Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor

• PCIe Graphic/2D Controller

• 1920x1200@60Hz 32bpp

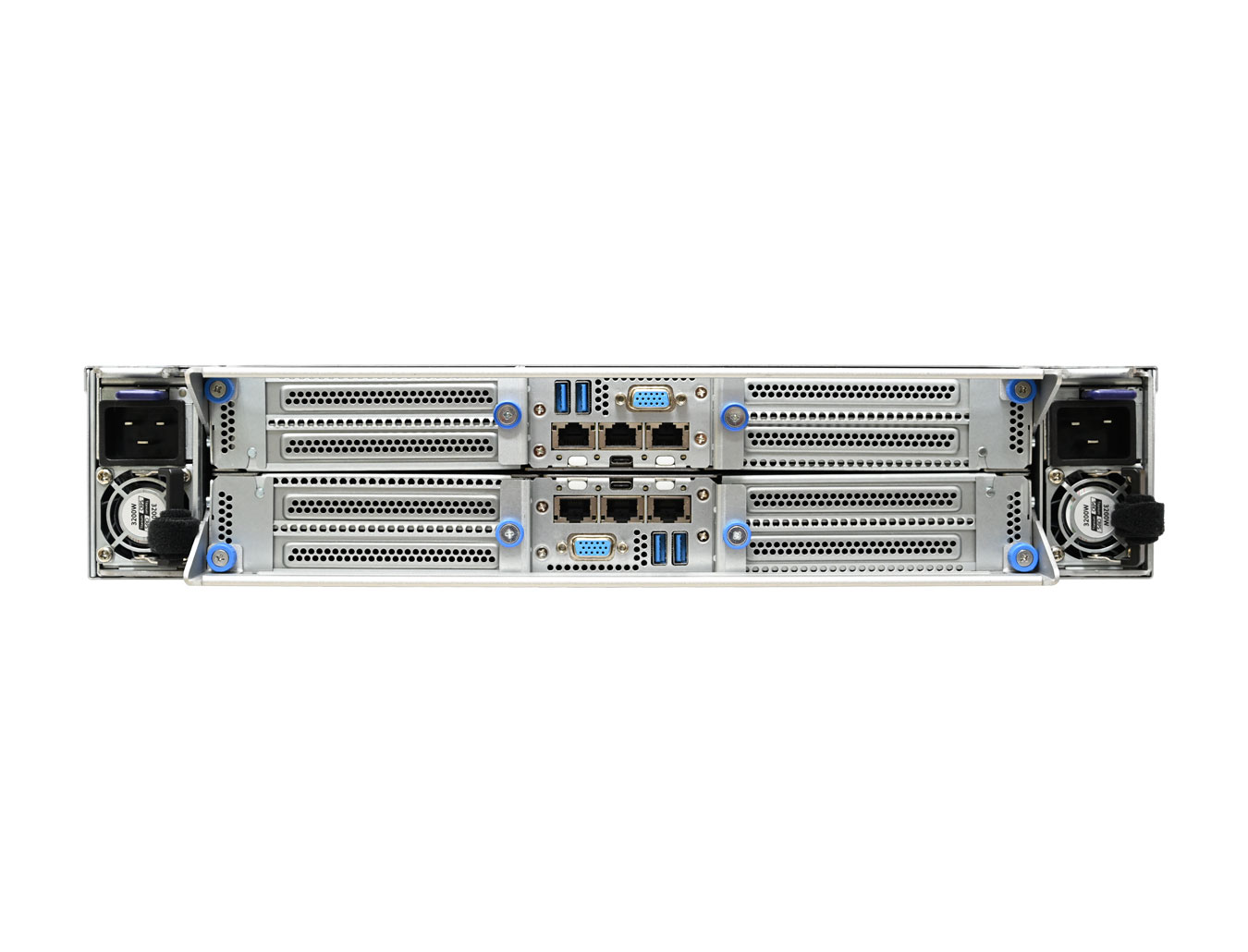

Rear I/O

LAN

• 2 x 10GbE RJ45

• 1 x 1GbE RJ45 for BMC management port

USB

2 x USB3.2 Gen1x1

Video Output

1 x external DB-15

Serial Port

1 x USB Type-C for UART console

Others

• 1 x system ID button

• 1 x user define button

Power Supply

3200W 1+1 CRPS redundant power supply 80+ Titanium

System Cooling

• 6 x 4056 PWM fans (per node)

• 2 x 4028 PWM fans

System Management

• IPMI 2.0

• KVM over IP

• Media redirection

• Temperature, fan, voltage, PSU sensor monitor

• System temperature

• System ID / System fail indicator

• Remote power on/off/reset

• SEL message alarm through mail

• SNMP support

Environmental Specifications

• Storage temperature: -10ºC(14ºF) ~ 60ºC(140ºF)

• Operating temperature: 0ºC(32ºF) ~ 35ºC(95ºF)

• Storage operating humidity: 5%~95% non-condensing

Packaging Dimensions (W x D x H)

605 x 1060 x 294

inches

23.8 x 41.7 x 11.6

Mounting (Standard)

36" tool-less rail

* All specifications are subject to change without notice.

SKU Information	Description
XP1-A202HC01	2U PCIe Gen5 High Availability Storage Server, featuring Dual Canister Nodes (Hercules MB), AMD EPYC™ 9000 Genoa/Turin Processor, 12x DDR5 RDIMMs/node, 26x hot-swap 2.5“ U.2 PCIe Gen5 NVMe bays, 1 GbE for BMC management, dual 10GbE/node for networking connectivity, 3x PCIe Gen5 x16 expansion slots/node, 3200W 1+1 80+ Titanium CRPS redundant power supply (C20 inlet) and 36" slide rails. w/o bezel, w/o power cord
XP1-A202HC03	2U PCIe Gen5 High Availability Storage Server with Dual Port 100GbE Module, featuring Dual Canister Nodes (Hercules MB), AMD EPYC™ 9000 Genoa/Turin Processor, 12x DDR5 RDIMMs/node, 26x hot-swap 2.5" U.2 PCIe Gen5 NVMe bays, Dual port 100GbE Module for node-node inter communication, 1 GbE for BMC management, dual 10GbE/node for networking connectivity, 3x PCIe Gen5 x16 expansion slots/node, 3200W 1+1 80+ Titanium CRPS redundant power supply (C20 inlet) and 36" slide rails. w/o bezel, w/o power cord

SKU Information

Description

XP1-A202HC01

2U PCIe Gen5 High Availability Storage Server, featuring Dual Canister Nodes (Hercules MB), AMD EPYC™ 9000 Genoa/Turin Processor, 12x DDR5 RDIMMs/node, 26x hot-swap 2.5“ U.2 PCIe Gen5 NVMe bays, 1 GbE for BMC management, dual 10GbE/node for networking connectivity, 3x PCIe Gen5 x16 expansion slots/node, 3200W 1+1 80+ Titanium CRPS redundant power supply (C20 inlet) and 36" slide rails. w/o bezel, w/o power cord

XP1-A202HC03

2U PCIe Gen5 High Availability Storage Server with Dual Port 100GbE Module, featuring Dual Canister Nodes (Hercules MB), AMD EPYC™ 9000 Genoa/Turin Processor, 12x DDR5 RDIMMs/node, 26x hot-swap 2.5" U.2 PCIe Gen5 NVMe bays, Dual port 100GbE Module for node-node inter communication, 1 GbE for BMC management, dual 10GbE/node for networking connectivity, 3x PCIe Gen5 x16 expansion slots/node, 3200W 1+1 80+ Titanium CRPS redundant power supply (C20 inlet) and 36" slide rails. w/o bezel, w/o power cord
