HA202-PV

Home Products Storage High Availability Server High Availability Storage Server w/ Intel® Xeon® Scalable Processors

HA202-PV is a 2U 24-Bay NVMe storage server solution that provides high-availability with accelerated performance. HA202-PV comes with two AIC Pavo Server Boards (one board per node), each supporting dual Intel® Xeon® Scalable Processors. Both nodes process I/O, and provide simultaneous and balanced access to the logical devices, which significantly increases overall cluster performance. When failure occurs, the secondary node automatically takes over the devices, client connections, and all processes/services of the system. By eliminating SPOFs (single points of failure) and designed for redundancy and end-to-end data protection, the HA202-PV provides protection from storage system down time and loss of revenue when access to data resources and critical business applications are in-interruptible. Its support of NVMe SSDs allows for super-fast data access, and is optimized for mission-critical, enterprise-level storage applications.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

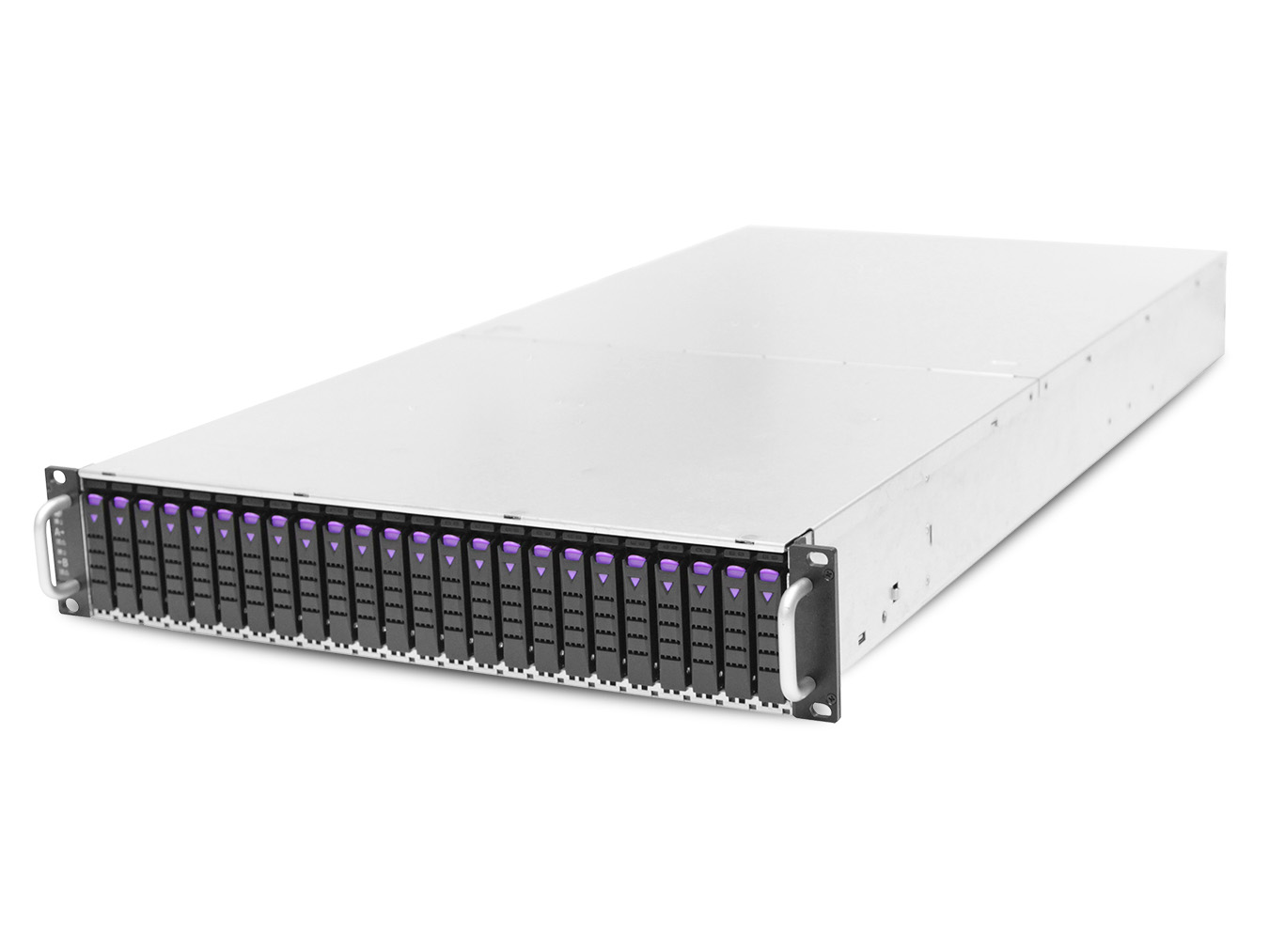

2U 2-Node high-availability storage server supports 24 hot swap 2.5” drive bays for NVMe SSDs (U.2)

FEATURE

Optimized for mission-critical, enterprise-level storage applications

FEATURE

Fully redundant, fault-tolerant system supporting hot swappable controller nodes and storage drives

FEATURE

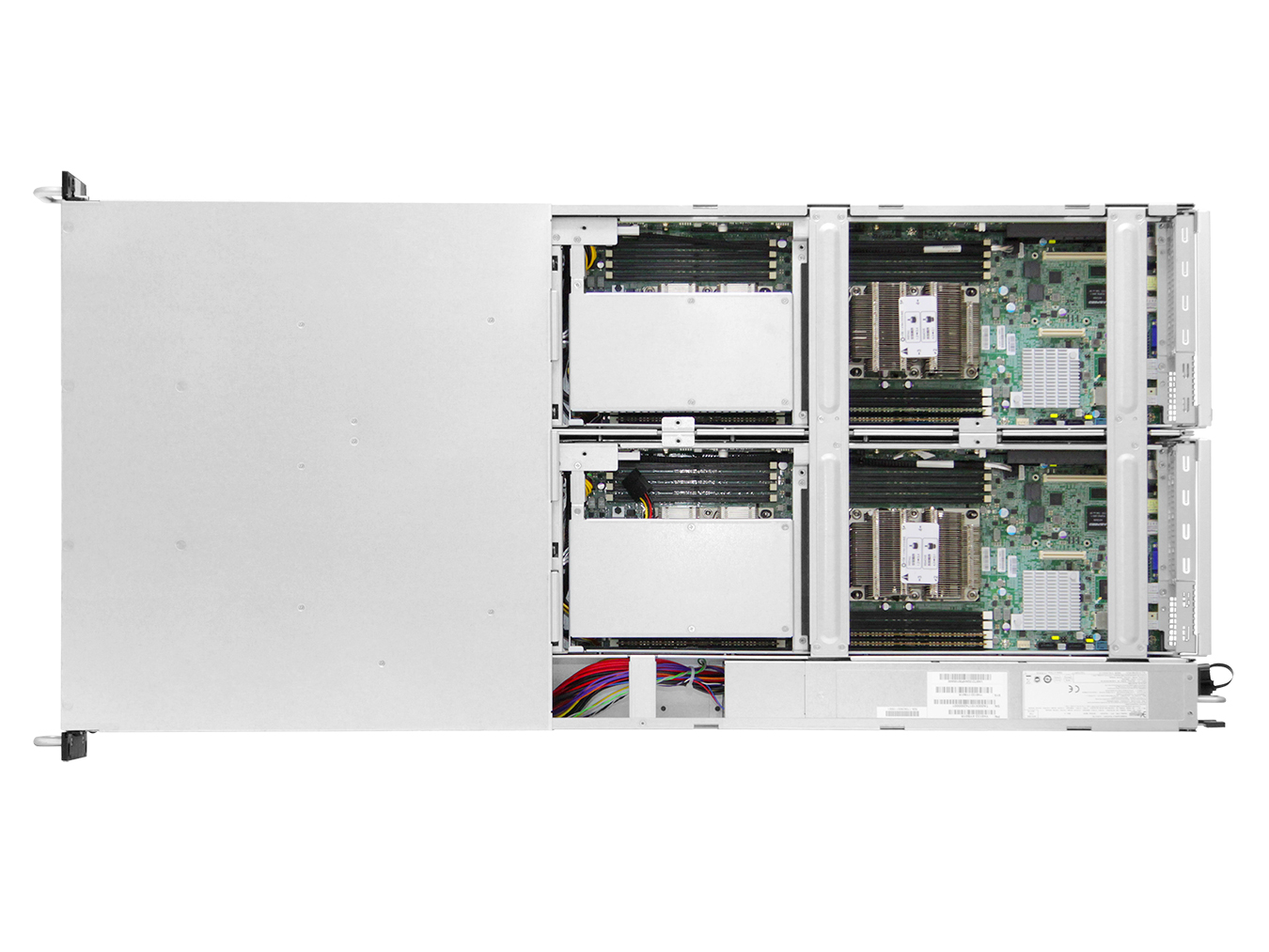

Two compute nodes, Active-Active configuration, each supporting two 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake Refresh/Cascade Lake/Skylake)

FEATURE

1 x16 PCIe, 1 x8 PCIe and 1 OCP Mezzanine slots per node provide direct links to CPU

FEATURE

PCIe NTB link between nodes for communication and fail-over

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

Dimensions

435 x 911 x 87

inches

17.1 x 35.9 x 3.4

Motherboard

AIC Server Board Pavo

Processor

Processor Support

• Intel® Xeon® Scalable Processors (Cascade Lake Refresh/Cascade Lake/Skylake)

• Supports CPU TDP up to 165W

(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)

CPU Interconnection

10.4 GT/s, 9.6 GT/s

Socket Type

Socket P0 (LGA-3647 Socket)

Chipset Support Per Node

Intel® Lewisburg C620 series PCH

System Memory

• 6 x memory channels per CPU, 2 channels with 2DPC + 4 channels with 1DPC

• 16 x DIMM slots support: DDR4 2933/2666/2400MHz

• Intel® Optane™ DC Persistent Memory (Apache Pass) support

Front Panel

System power on/off

LEDs

A:

• Power (Secondary)

• Warning

B:

• Power (Primary)

• Warning

Drive Bays

External

24 x 2.5" hot swap

Internal

2 per node x 2.5"

Backplane

1 x 24-port dual loop NVMe backplane

Expansion Slots

PCIe 4.0

[PCIe 3.0]

• 1 x16 slot (FH)

• 1 x16 slot (x8 mode) (FH)

• 1 x OCP Mezzanine card V2.0

Expansion Boards

2 x 64-port Broadcom/PLX 9765 PCIe switch board

Riser Cards

• RC-PE2U08-TY : 1 x16 PCIe slot + 1 x8 PCIe slot

System BIOS

BIOS Type

Insyde UEFI BIOS

BIOS Features

• ACP

• PXE

• WOL

• AC loss recovery

• Serial console redirection

• BIOS Boot Specification

• BIOS Recovery Mode

• SMBIOS

• SRIOV

• iSCSI

• TPM

• PCIe Hotplug

On-board Devices

SATA/SAS

SATA
Intel® Lewisburg PCH on-chip solution
• 4 x SATA 6.0 Gb/s (by 1 x mini-SAS HD)
• 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
• 5 x SATA 6.0 Gb/s (by Max I/O®)
• RAID 0, 1, 5, 10 support by Intel RSTe

BMC

Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish (by request)

Network Controllers

• Intel® PCH (Lewisburg) Integrated 10GbE LAN controller with dual SFP+ rear connectors

• Intel® I350 dual-port GbE RJ45 rear connectors

• Realtek RTL8211E for BMC dedicated management port

Graphics

Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor

• PCIe VGA/2D Controller

• 1920x1200@60Hz 32bpp

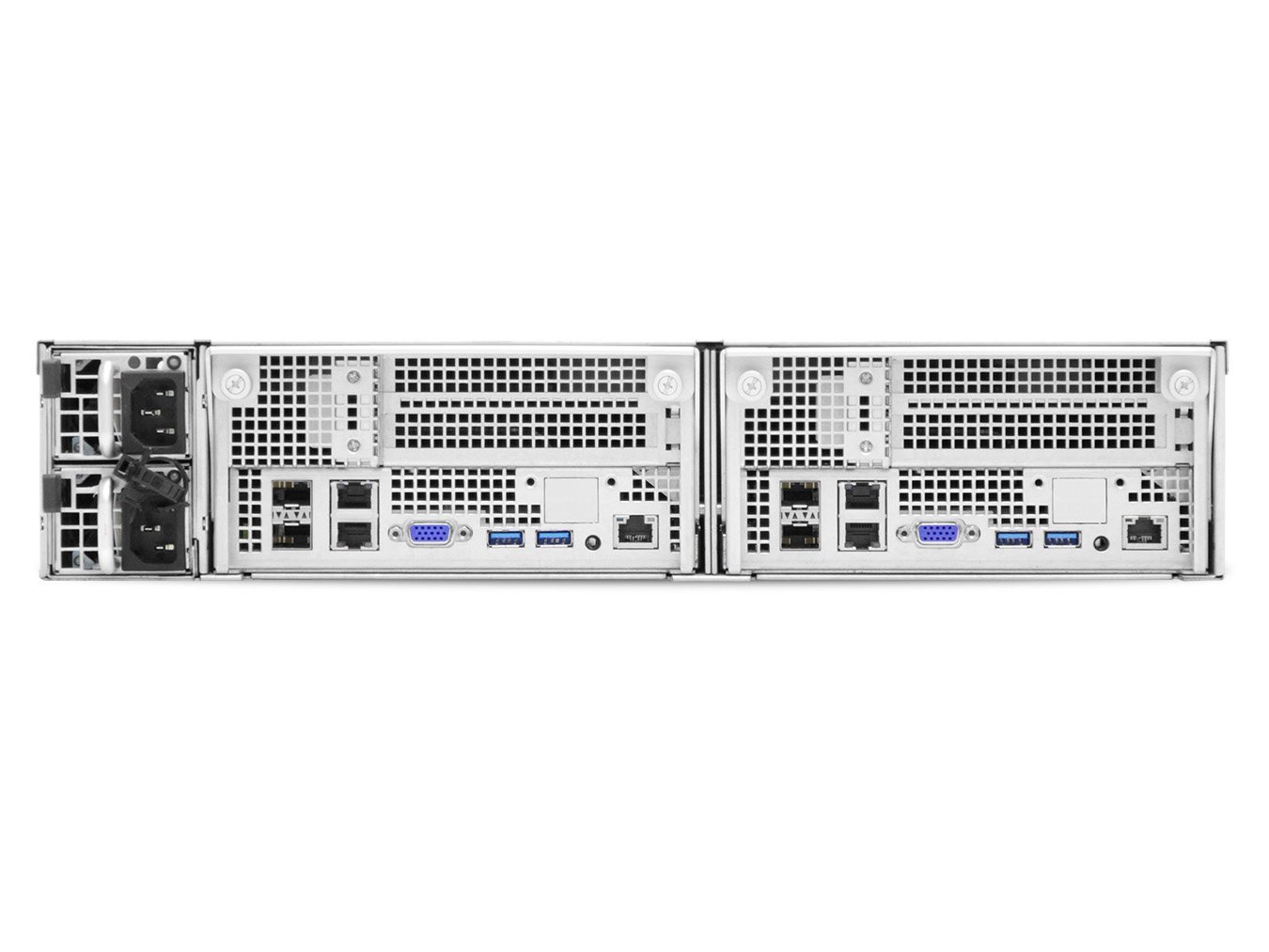

Rear I/O

LAN

• 2 x 10GbE SFP+

• 2 x GbE RJ45

• 1 x GbE RJ45 dedicated to BMC management

USB

• 2 x USB 3.0 Type A

Video Output

• 1 x external DB-15 VGA port

Serial Port

• 1 x audio jack for COM port

TPM Support

2.0 onboard

Power Supply

1300W 1+1 redundant power supply 80+ Platinum

• AC INPUT: 100-120V, 50/60Hz, 12A / DC OUTPUT: 900W

• AC INPUT: 200-240V, 50/60Hz, 8A / DC OUTPUT: 1300W

System Cooling

2 x 60x56mm easy swap fans

System Management

• IPMI 2.0

• KVM over IP

• Media redirection

• Temperature, fan, voltage, PSU sensor monitor

• System temperature

• System ID / System fail indicator

• Remote Power on/off/reset

• SEL message alarm through mail

• SNMP support

• Intel NM

• HTML5

• Redfish (by request)

Environmental Specifications

• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)

• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)

• Storage operating humidity : 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

43.5

lbs

95.9

Packaging Dimensions (W x D x H)

615 x 1220 x 338

inches

24.2 x 48 x 13.3

Mounting (Standard)

28" tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XP1-A202PV01	2U 24-bay NVMe storage server, 2x canister, 12G EOB 24 port backplane, 1300W redundant power supply platinum, Pavo, Intel® Xeon® Scalable processors, DDR4 RDIMM x16, Intel PCH C622, 2x 10G SFP+, MAX I/O x64, OCP MEZZ V2, with 2 set BBU, 4x CPU heatsinks, 28" slide rail, w/o bezel
XP1-A202PV02	2U 24-bay NVMe storage server, 2x canister with 2x 2.5" HDD cage, 12G EOB 24 port backplane, 1300W HRP platinum, Pavo, Intel® Xeon® Scalable processors, DDR4 RDIMM x16, Intel PCH C622, 2x 10G SFP, MAX I/O x64, OCP MEZZ V2, 4x CPU heatsinks, 28" slide rail, w/o bezel, w/o BBU

FRU Information
Standard Parts List	Part Number	Description
Fan	FC-000000144	6056 fan module
Backplane	BBP-HD20032A	24-port dual loop NVMe backplane
Riser Card	BRC-PE20010A	2U main riser card
Expander board	BDB-PEG0003A	2x 64-port Broadcom/PLX 9765 PCIe switchboard
Power Supply	PR-000000100	1300W platinum redundant power supply
Slide rail	H5531S200001	28" tool-less slide rail

Optional Parts List	Part Number	Description
Front Bezel	M06-00394-02	Front bezel
BBU	DE-000000014	Alis battery pack
