KEY FEATURE

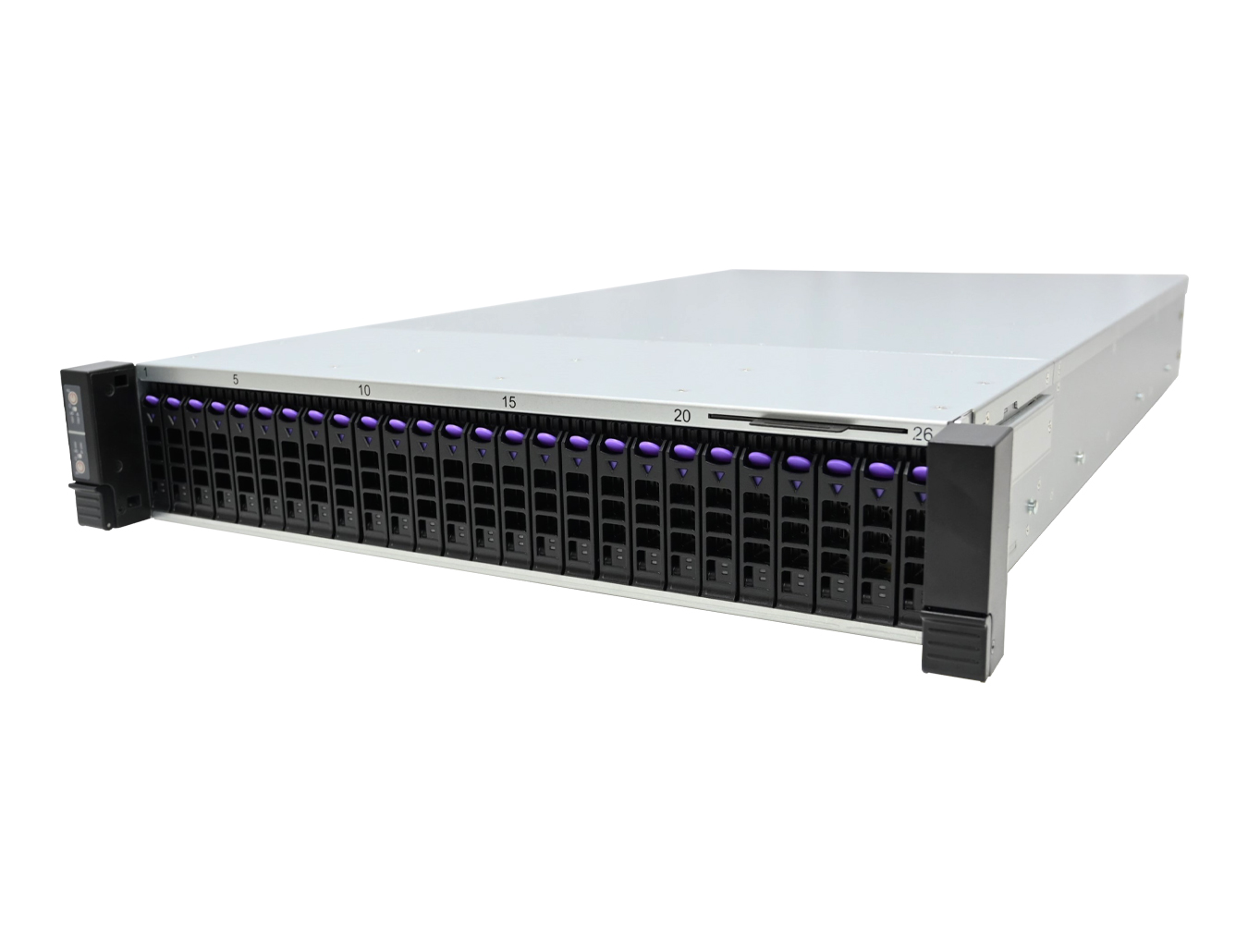

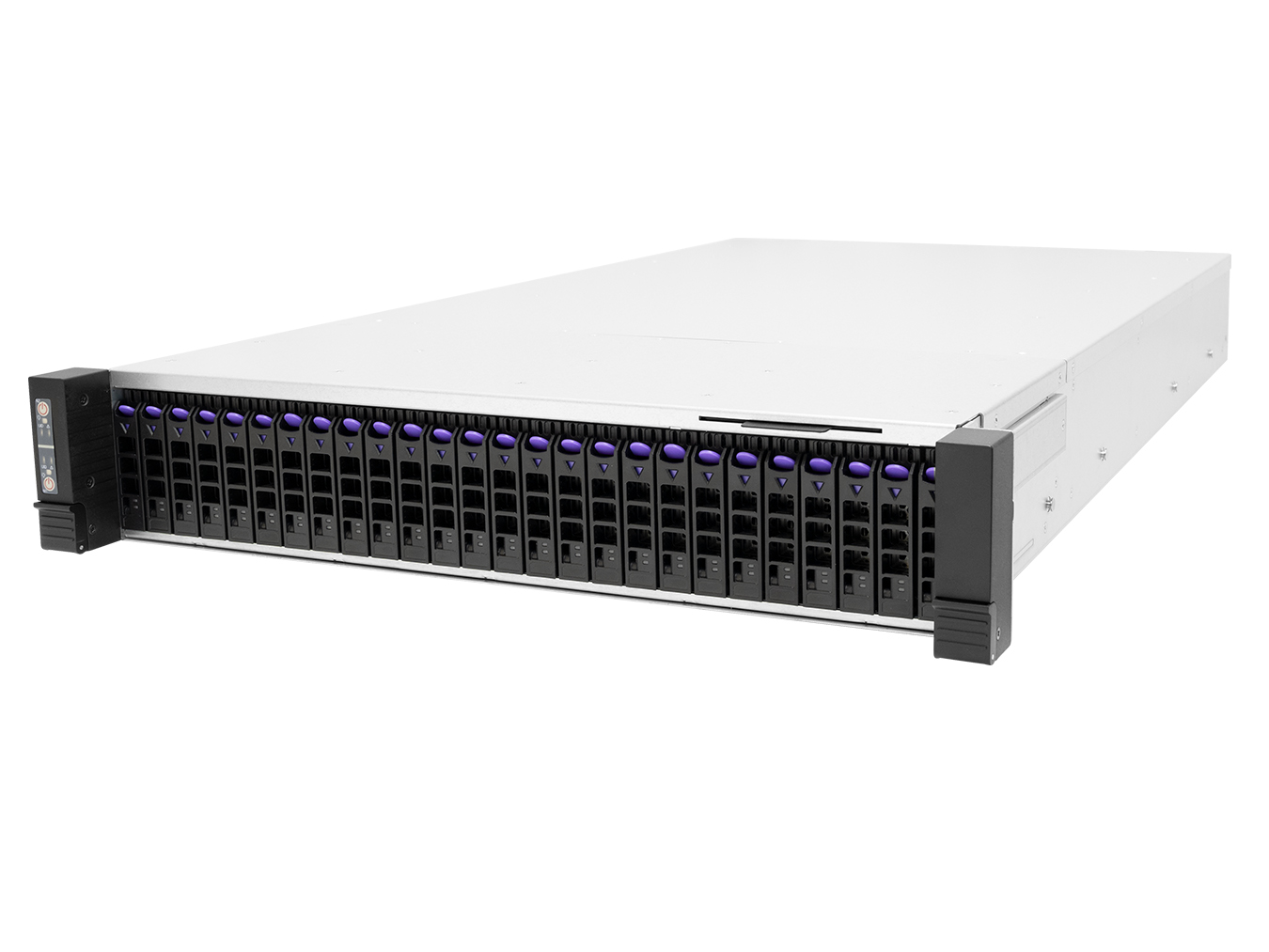

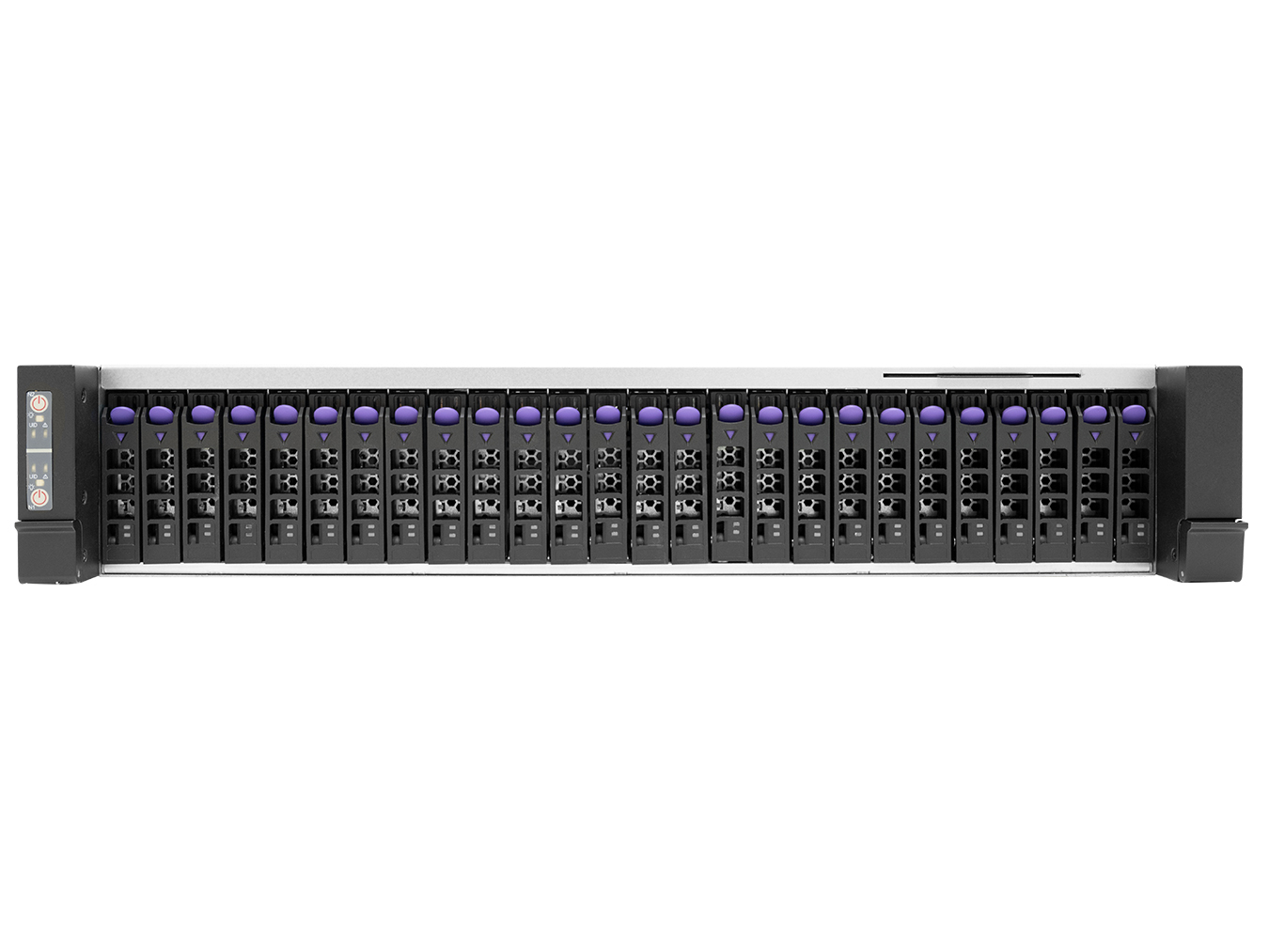

2U high-availability support 26 x hot swap Gen5 U.2 dual port drives
FEATURE
2U high-availability support 26 x hot swap Gen5 U.2 dual port drives

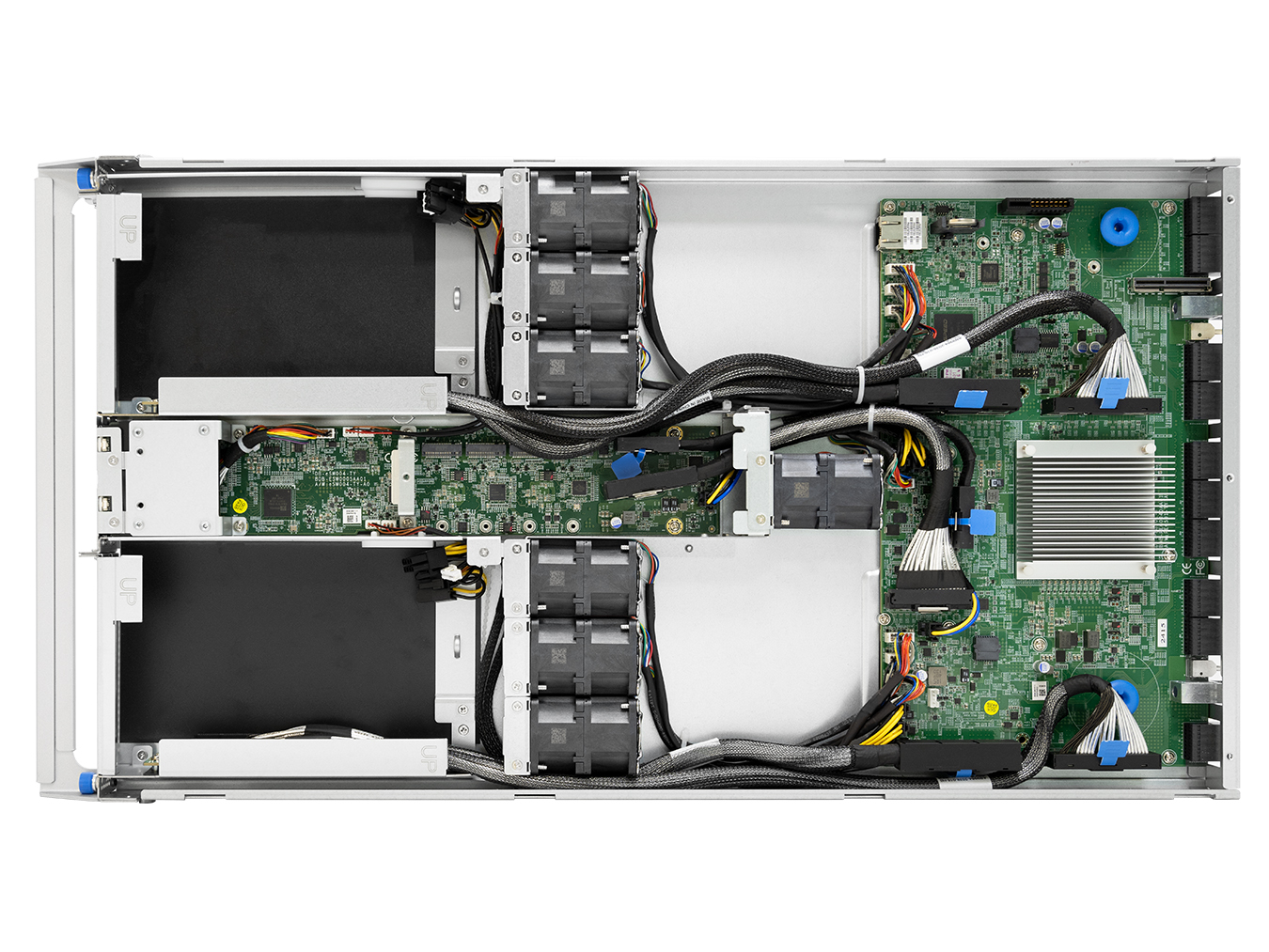

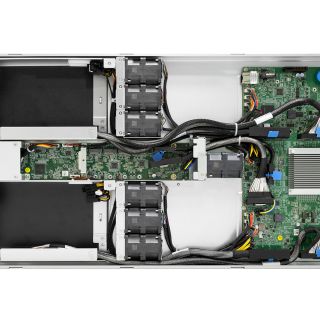

Broadcom 89144 PCIe Gen5 switch base bridge board
FEATURE
Broadcom 89144 PCIe Gen5 switch base bridge board

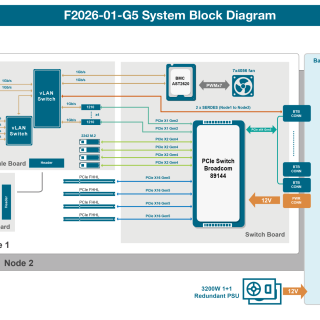

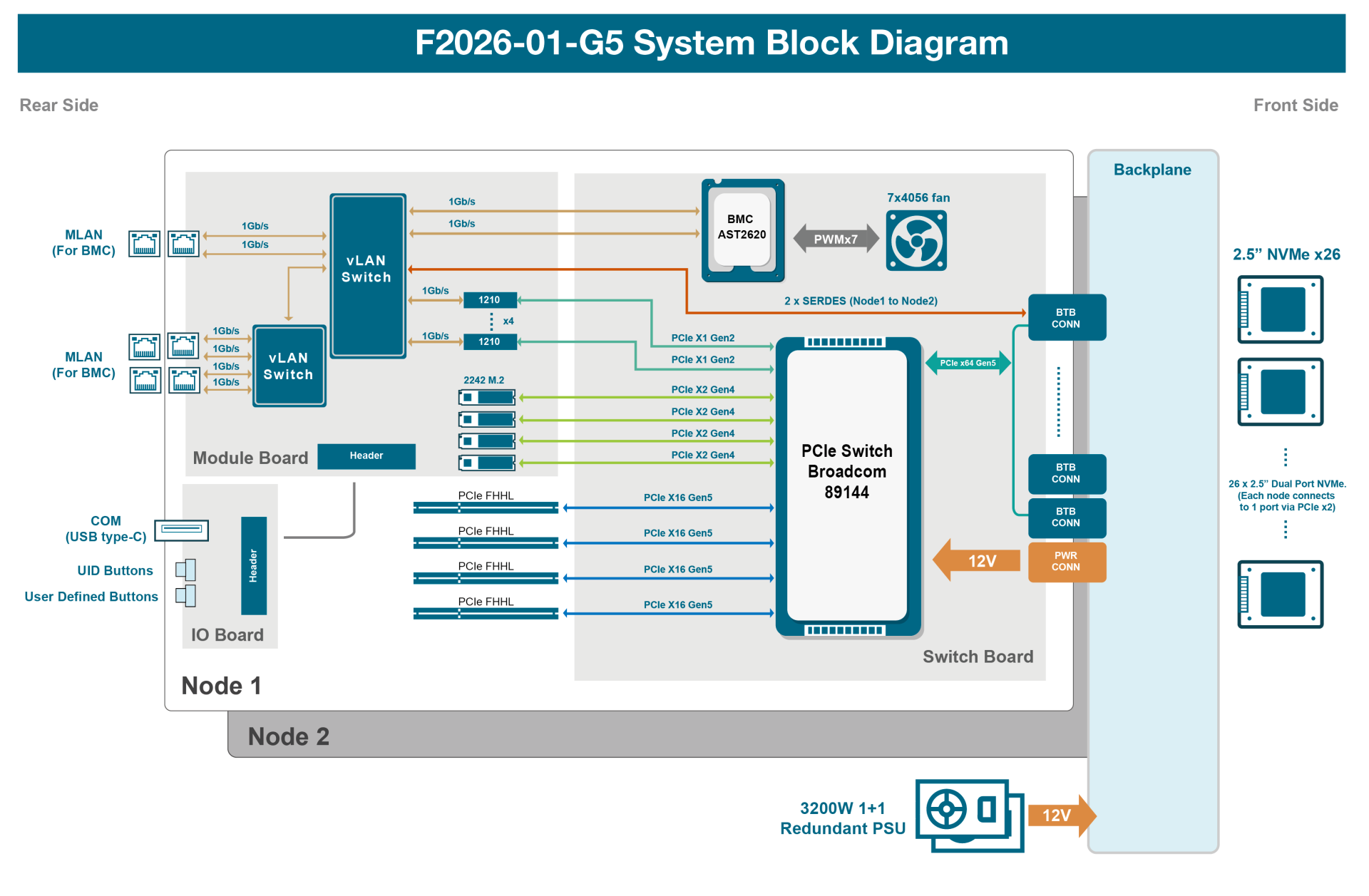

Supports dual controllers up to 8 x PCIe Gen5 x16 slots
FEATURE
Supports dual controllers up to 8 x PCIe Gen5 x16 slots
Designed for low latency and high performance applications
FEATURE
Designed for low latency and high performance applications
PCIe Gen5 interface to support NVMe over fabrics (3rd party cards)
FEATURE
PCIe Gen5 interface to support NVMe over fabrics (3rd party cards)
Fully redundant, fault-tolerant system supporting hot swap design for easy maintenance and management
FEATURE
Fully redundant, fault-tolerant system supporting hot swap design for easy maintenance and management
Intelligent Enclosure Management with IPMI 2.0 compliance
FEATURE
Intelligent Enclosure Management with IPMI 2.0 compliance
Tool-less tray design
FEATURE
Tool-less tray design
Specification
SPECIFICATION
Main
Sub
Details
General
Number of Expander
2
Expander Chip
Broadcom PEX 89144

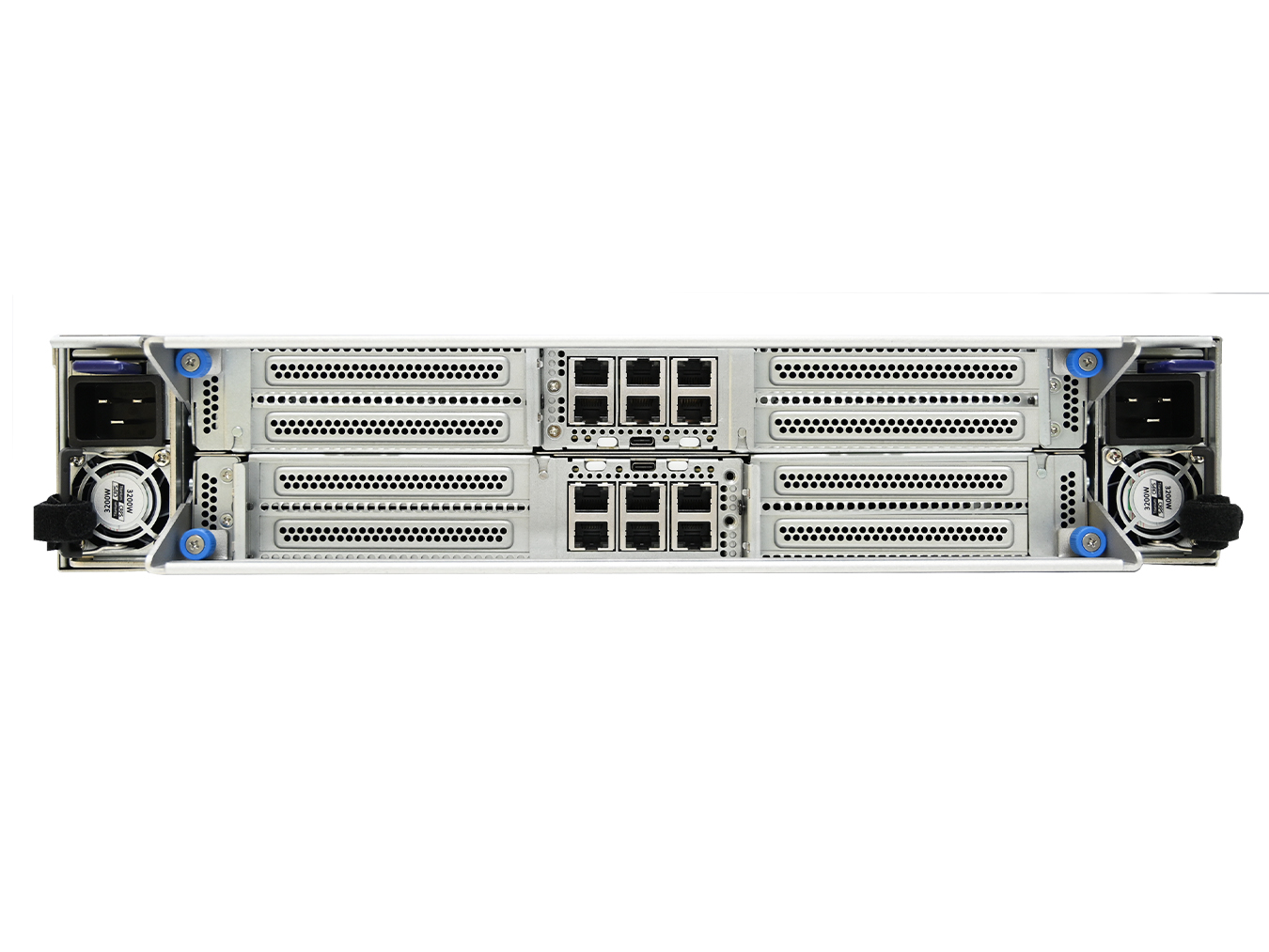

Host/Expansion Interfaces
• 4 x PCIe Gen5 x16 per canister
• 8 x PCIe Gen5 x16 per system
• Supports up to 4 DPUs
• 8 x PCIe Gen5 x16 per system
• Supports up to 4 DPUs
Drivers Supported
Drive Interface
SFF-8639
Form Factor
U.2
Administration/Management
Admin/Firmware Upgrade
BMC with IPMI 2.0 compliance
LED Indicators, Audible Alarm
Yes
Hot Swap and Redundancy

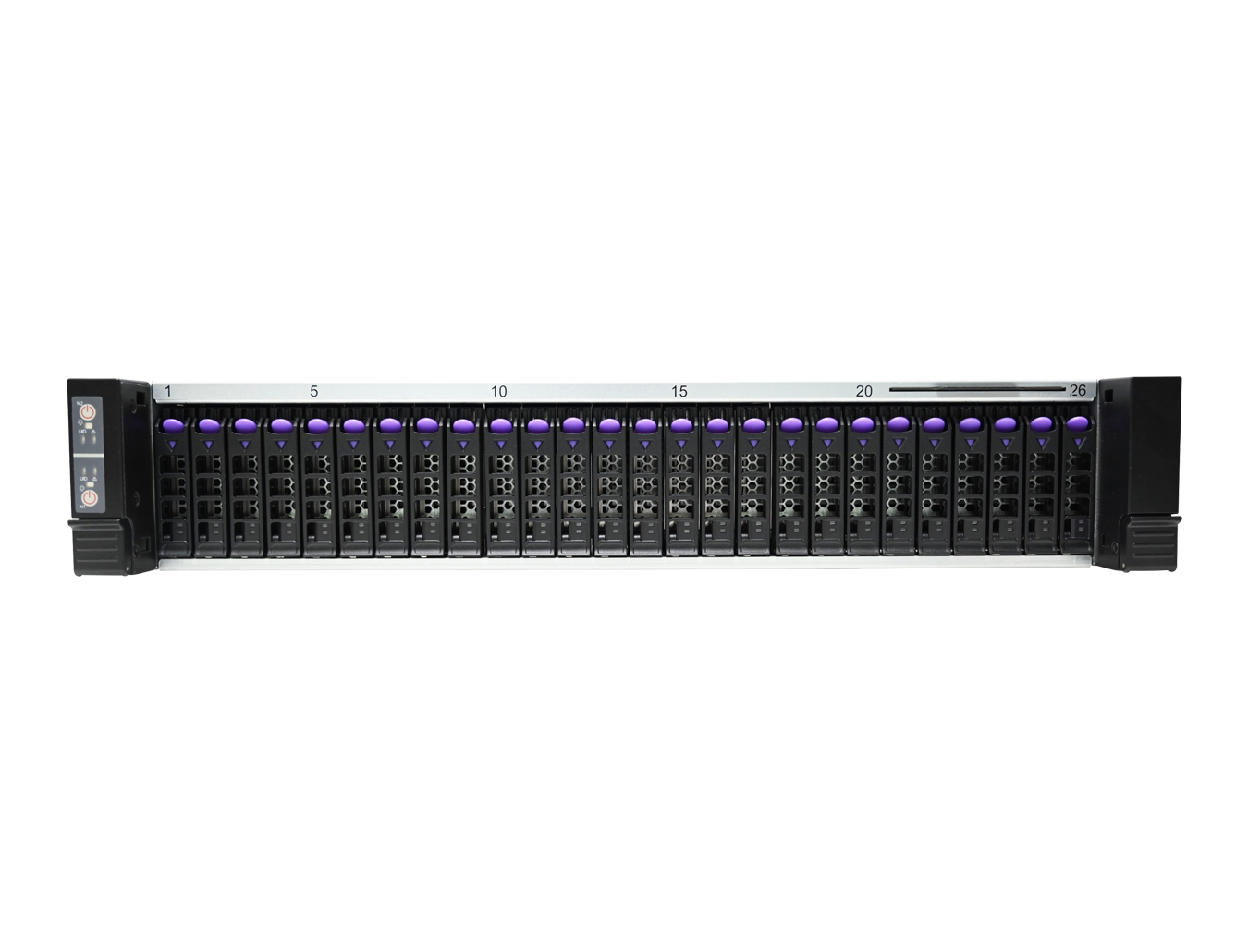

Drive Bays
26
Cooling
• 7 x 4056 PWM fans per canister
• Total 14 fans
• Total 14 fans
Power Supply
3200W 1+1 hot swap redundant 80+ Titanium
Power Entry
Dual AC Inlet
Expander Modules
Dual
Electrical and Enviromental
A/C Input
Universal A/C Input:
• 100~240V AC Full Range
• 100~240V AC Full Range
Operating Environment
• Temperature 0ºC to 35ºC
• Relative humidity 20% to 80%
• Relative humidity 20% to 80%
Non-operating Environment
• Storage temperature : -20° to 60°C
• System relative humidity : 10% to 90%
• System relative humidity : 10% to 90%
Physical Specification
Dimension (W x D x H)
• mm: 438 x 750 x 88
• inches: 17.2 x 29.5 x 3.5
• inches: 17.2 x 29.5 x 3.5
Gross Weight (w/PSU, Rail ; w/o Pallet, Disks)
• kgs: 38
• lbs: 83.8
• lbs: 83.8
Packaging Dimensions (W x D x H)
• mm: 605 x 1060 x 294
• inches: 23.8 x 41.7 x 11.6
• inches: 23.8 x 41.7 x 11.6
Mounting
Standard: 36” tool-less rail
* All specifications are subject to change without notice.
| Ordering Information | Description |
