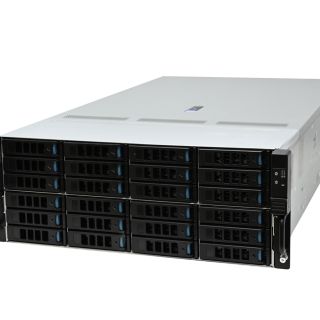

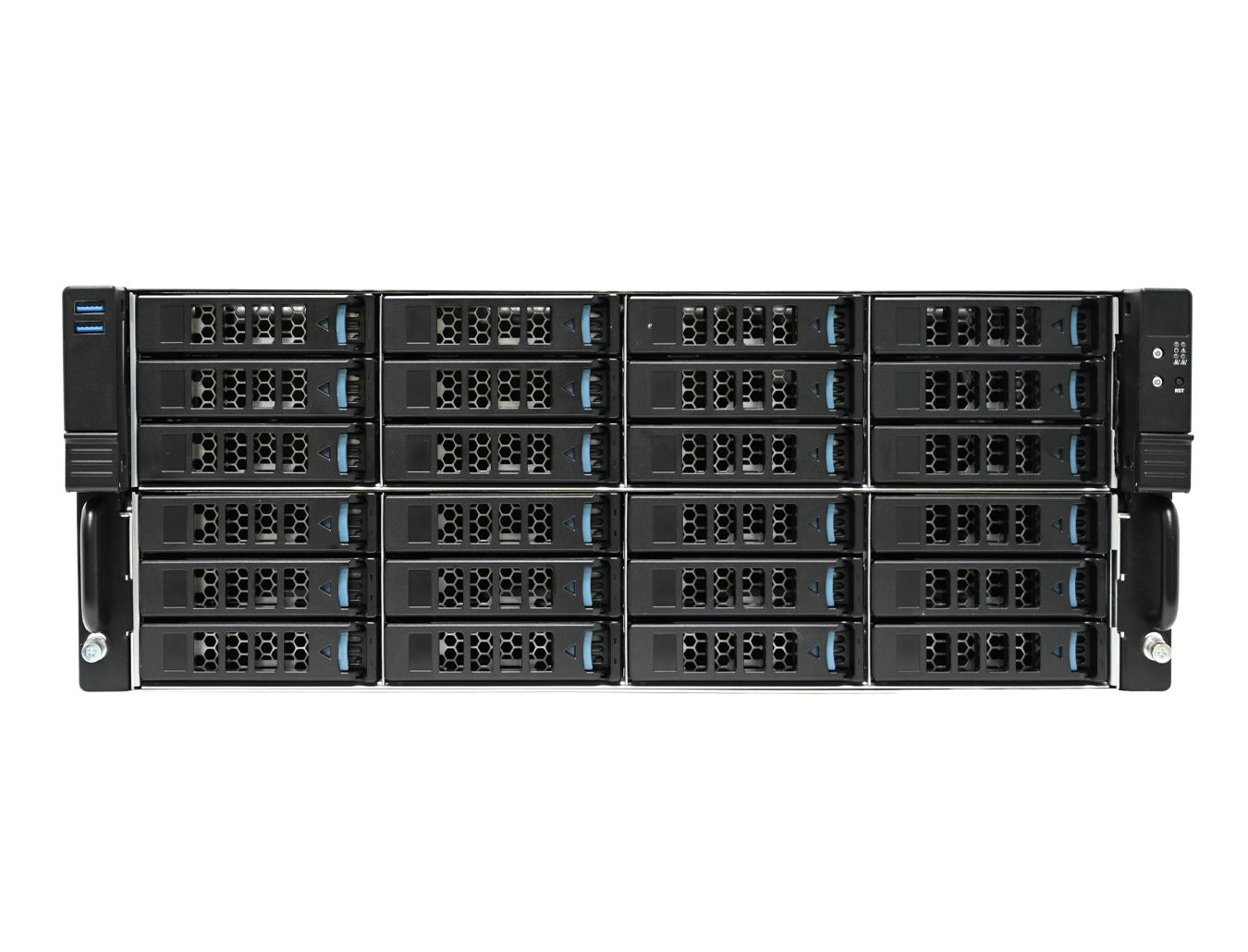

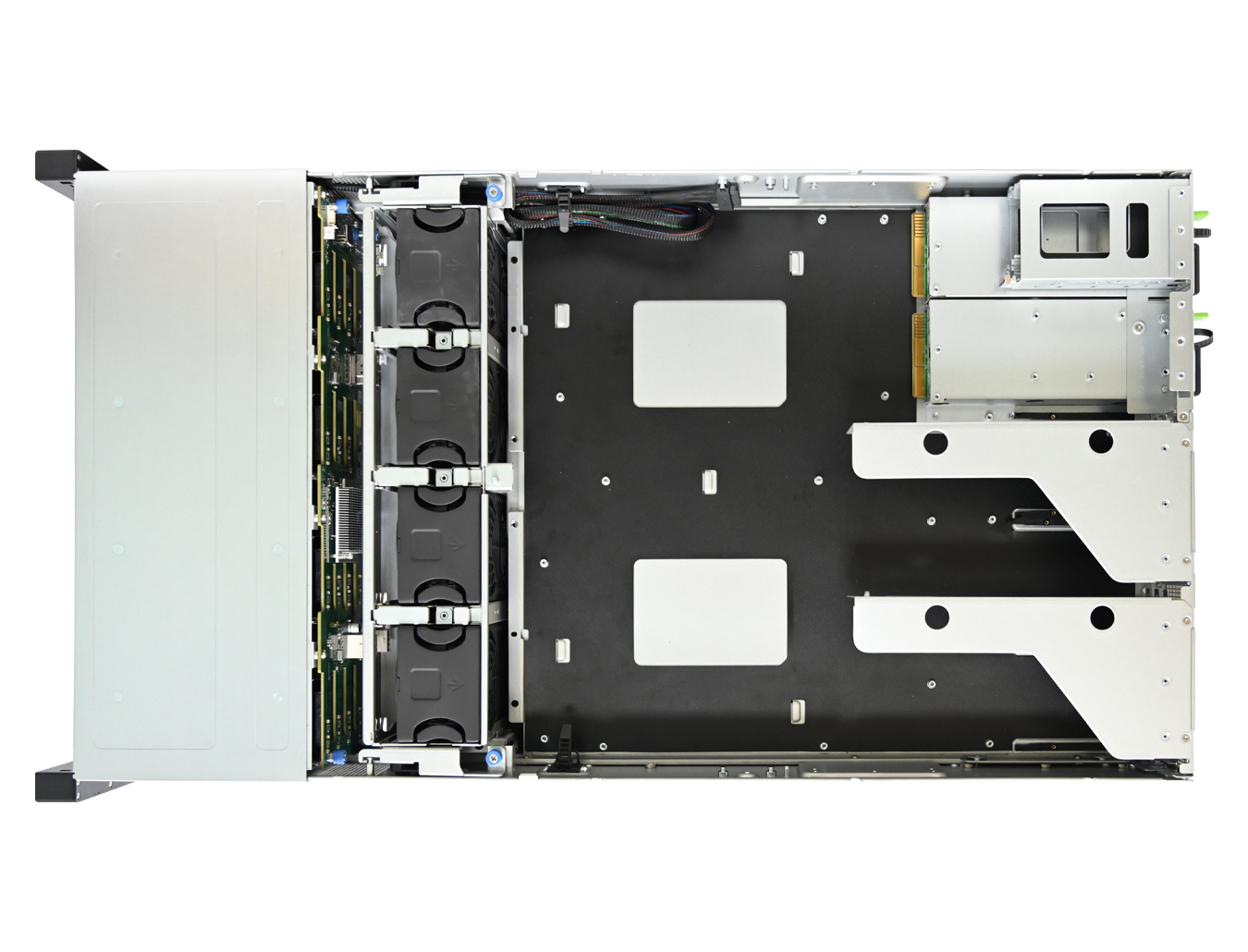

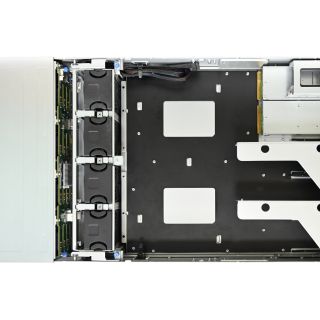

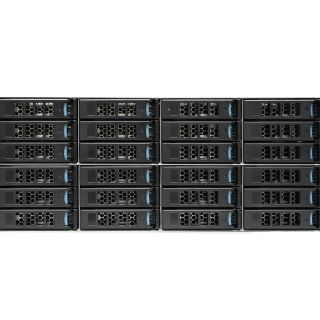

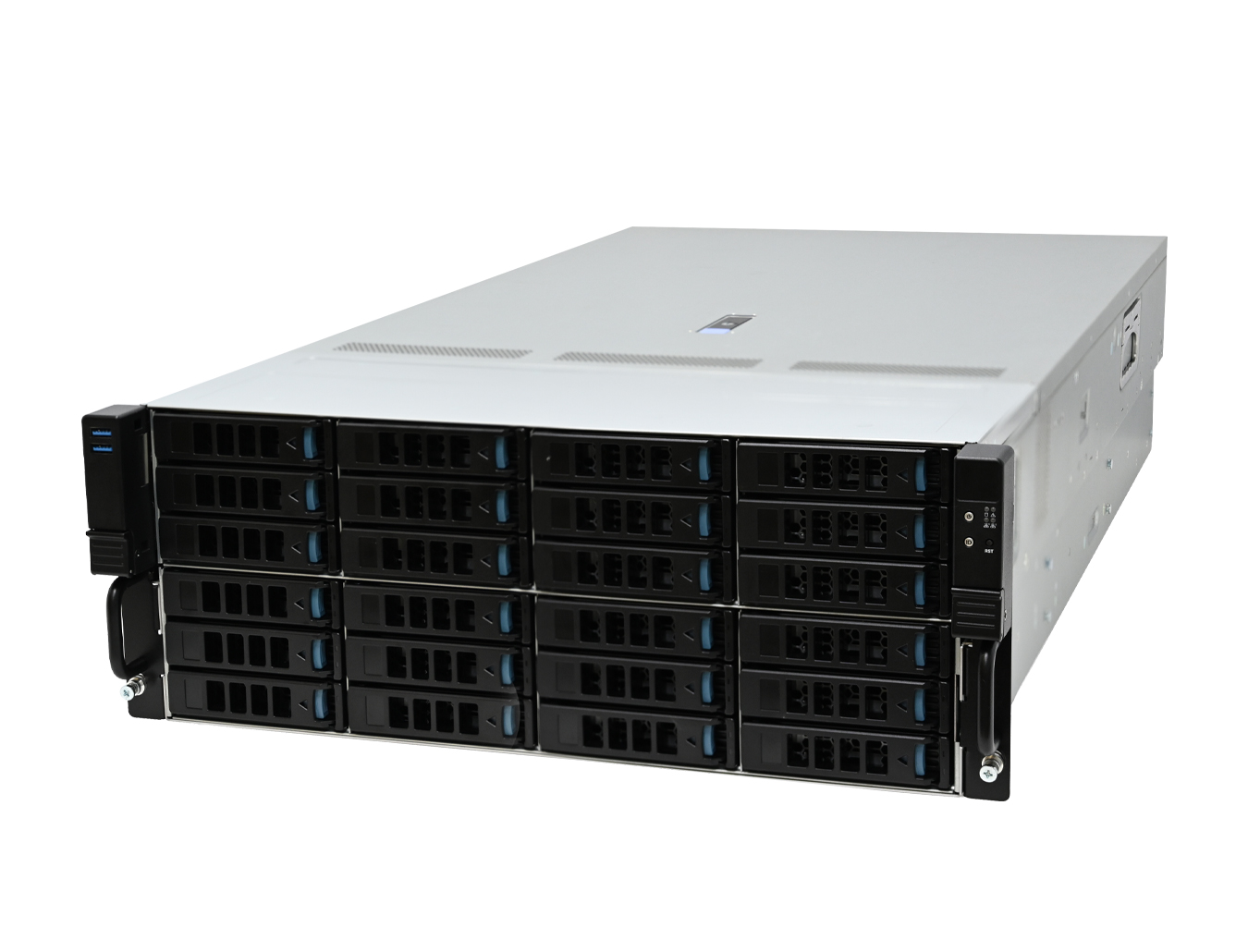

ES1-436-E0
AIC new generation ES1-436-E0 is a standardized 4U storage chassis designed to SSI-EEB/EATX form factor standards and optimized for serviceability.
Supporting 36 3.5"/2.5" drives, it serves as a high-density foundation for backup, media processing, and software-defined storage. Hot-swappable modules and optimized airflow ensure easy maintenance and reliable operation.
Supporting 36 3.5"/2.5" drives, it serves as a high-density foundation for backup, media processing, and software-defined storage. Hot-swappable modules and optimized airflow ensure easy maintenance and reliable operation.
KEY FEATURE
Tool-less, hot-swappable drive trays, top cover, fans, backplanes.
FEATURETool-less, hot-swappable drive trays, top cover, fans, backplanes.
High-performance 8056/8038 fan modules deliver consistent cooling.
FEATUREHigh-performance 8056/8038 fan modules deliver consistent cooling.
Support SSI-EEB/EATX form factors and modular architecture.
FEATURESupport SSI-EEB/EATX form factors and modular architecture.
External 36 x 3.5" hot -swap tray / External 2 x 2.5" hot -swap tray / Internal 4 x 2.5" (or 2 x 3.5")
FEATUREExternal 36 x 3.5" hot -swap tray / External 2 x 2.5" hot -swap tray / Internal 4 x 2.5" (or 2 x 3.5")
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
435 x 720 x 174.5
inches
17.1 x 28.35 x 6.9
Industry Standard
EIA-RS310D
Material
SGCC
Color
Front Panel: Black
Cooling
Standard: 3 x 8056mm & 3 x 8038mm PWM hot-swap fans
Option: up to 8 x 8056mm for heavy workloads (fan board needed)
Option: up to 8 x 8056mm for heavy workloads (fan board needed)
Power Supply
• Standard: 1300W/1600W 1+1 redundant CRPS PSU
• Option: 2000W redundant CRPS power supply modules
• Option: 2000W redundant CRPS power supply modules
Expansion Slots
7 half hight slots
Front Panel
System power on/off, System reset, System ID and
2 x USB 3.0 ports
2 x USB 3.0 ports
LED Indicators
Power, System alert, HDD, LAN
System board
E-ATX + MB 12.3"(W) x 14"(D)
Drive Bays
External
• 36 x 3.5” hot swap
• 2 x SAS3/SATA or 2 x Tri-mode PCIe Gen5 (Option)
• 2 x SAS3/SATA or 2 x Tri-mode PCIe Gen5 (Option)
Internal
Up to 4 (or 2 x 3.5”)
Backplane
Front :
• 1 x 24-port SAS3/SATA EOB

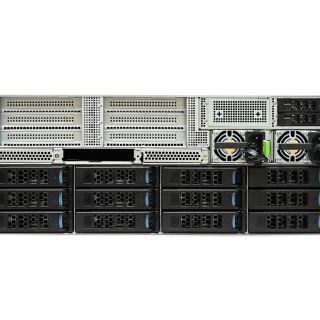

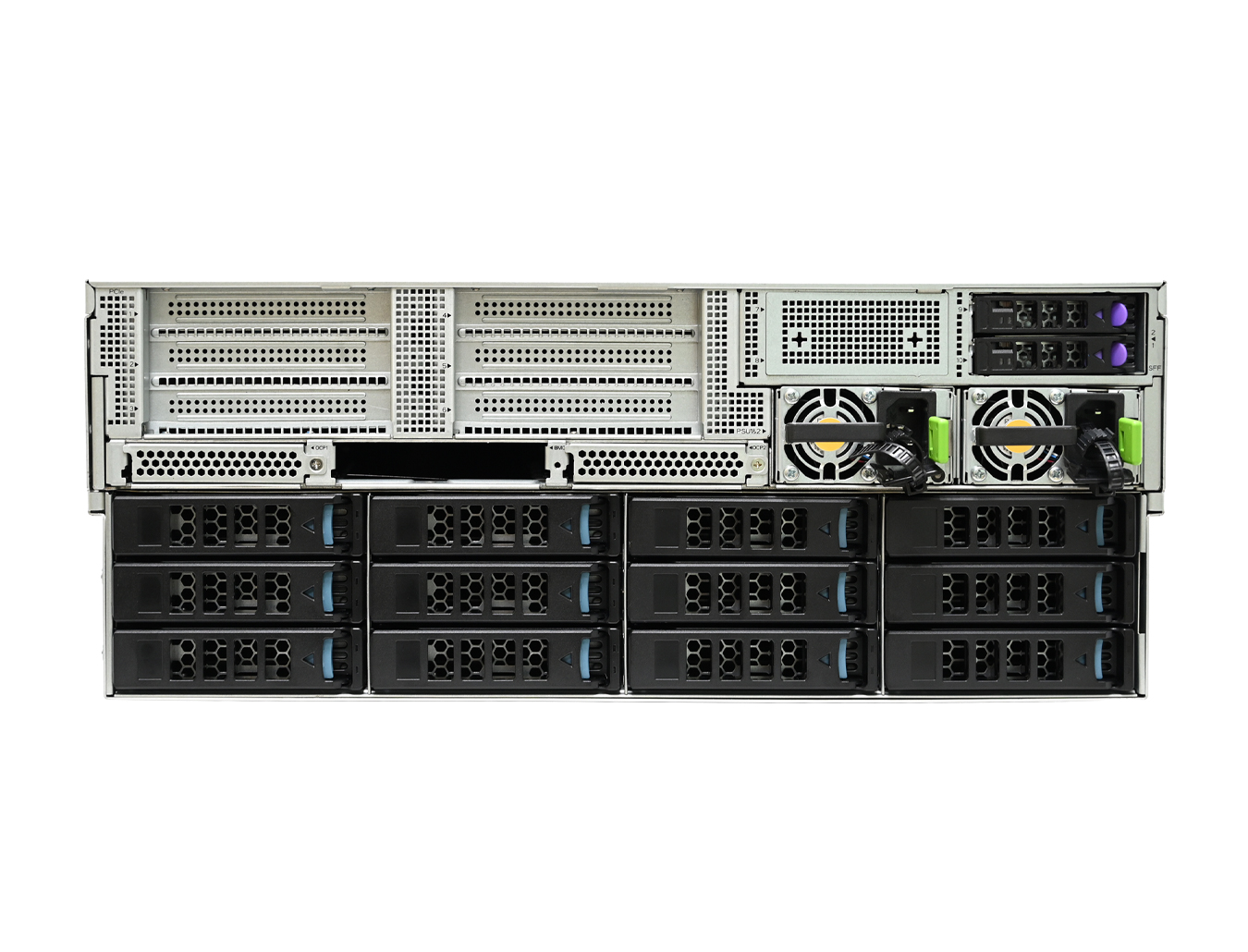

Rear :
• 1 x 12-port SAS3/SATA EOB
• 1 x 2-port SATA
• 1 x 2-port SAS3/SATA/PCIe Gen5 NVMe Tri-mode
• 1 x 24-port SAS3/SATA EOB
Rear :
• 1 x 12-port SAS3/SATA EOB
• 1 x 2-port SATA
• 1 x 2-port SAS3/SATA/PCIe Gen5 NVMe Tri-mode
Storage Temparature
0ºC(32ºF) ~ 50ºC(122ºF)
Humidity
5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs:
42
lbs:
92.6
Packaging Dimensions (W x D x H)
mm
600 x 960 x 400
inches
23 x 43.7 x 15.7
Cubic Feet
9.25
Container Load Quantity
20'
110
40'
220
40' H
265
Mounting
Tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-436E0-01 | 36x 3.5” hot-swap bays, tool-less 3.5" and 2.5" HDD tray, front ear USB 3.0, 2x 2.5" hot-swap OS SATA, 3x (8056+8038) hot-swap FAN (17000RPM+18300RPM), 24 port + 12 port SAS/SATA EOB hot-swap backplane. Redundant power supply CRPS 1600W Titanium |
| XE1-436E0-02 | 36x 3.5” hot-swap bays, tool-less 3.5" and 2.5" HDD tray, front ear USB 3.0, 2x 2.5" hot-swap OS SATA, 3x (8056+8038) hot-swap FAN (17000RPM+18300RPM), 24 port SAS/SATA EOB + 12 port PCIe Gen.5 tri-mode hot-swap backplane. Redundant power supply CRPS 2000W Titanium |
