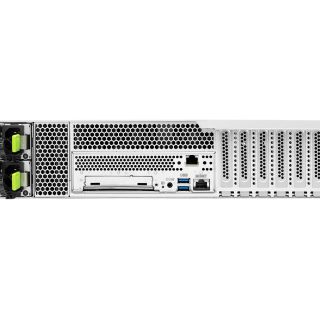

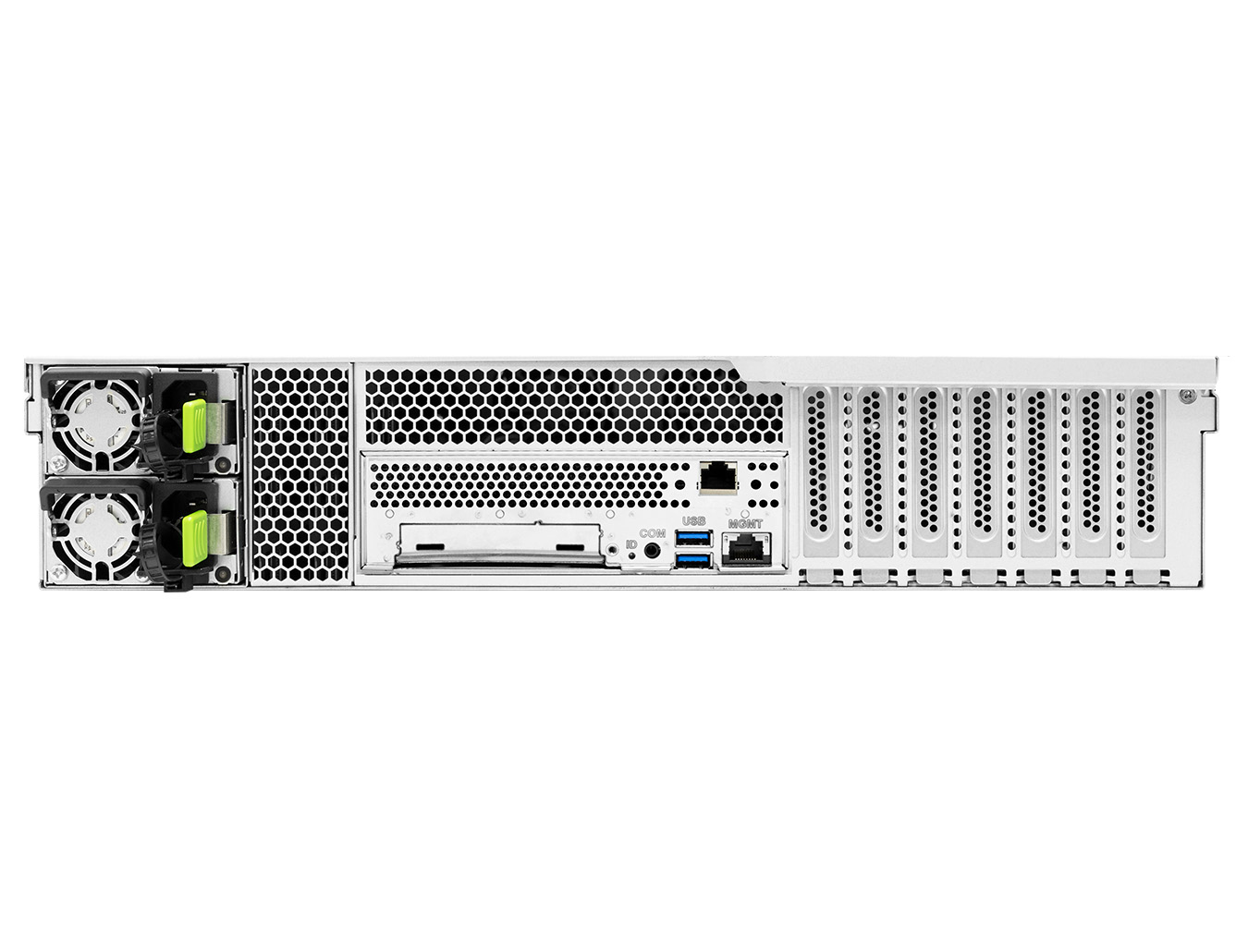

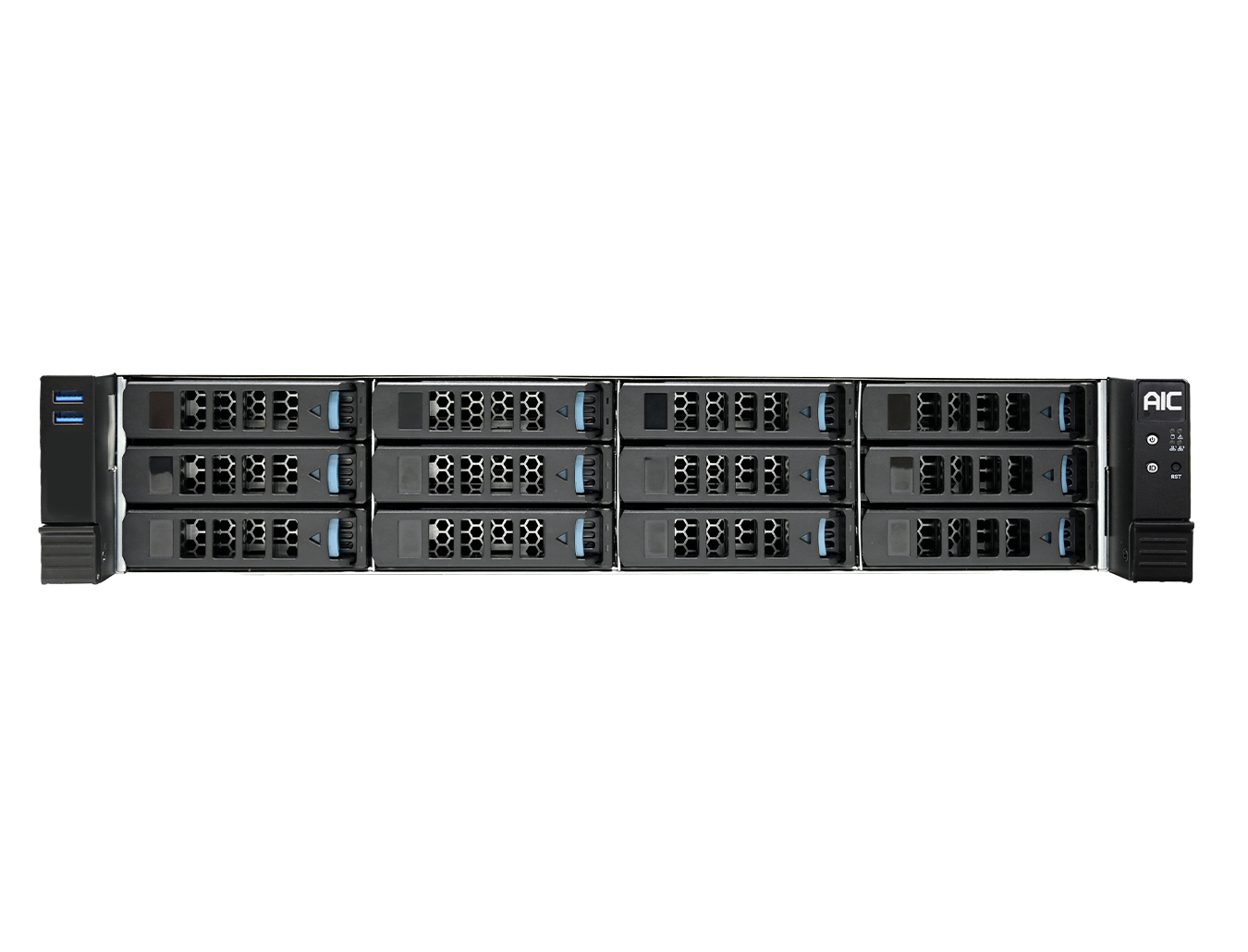

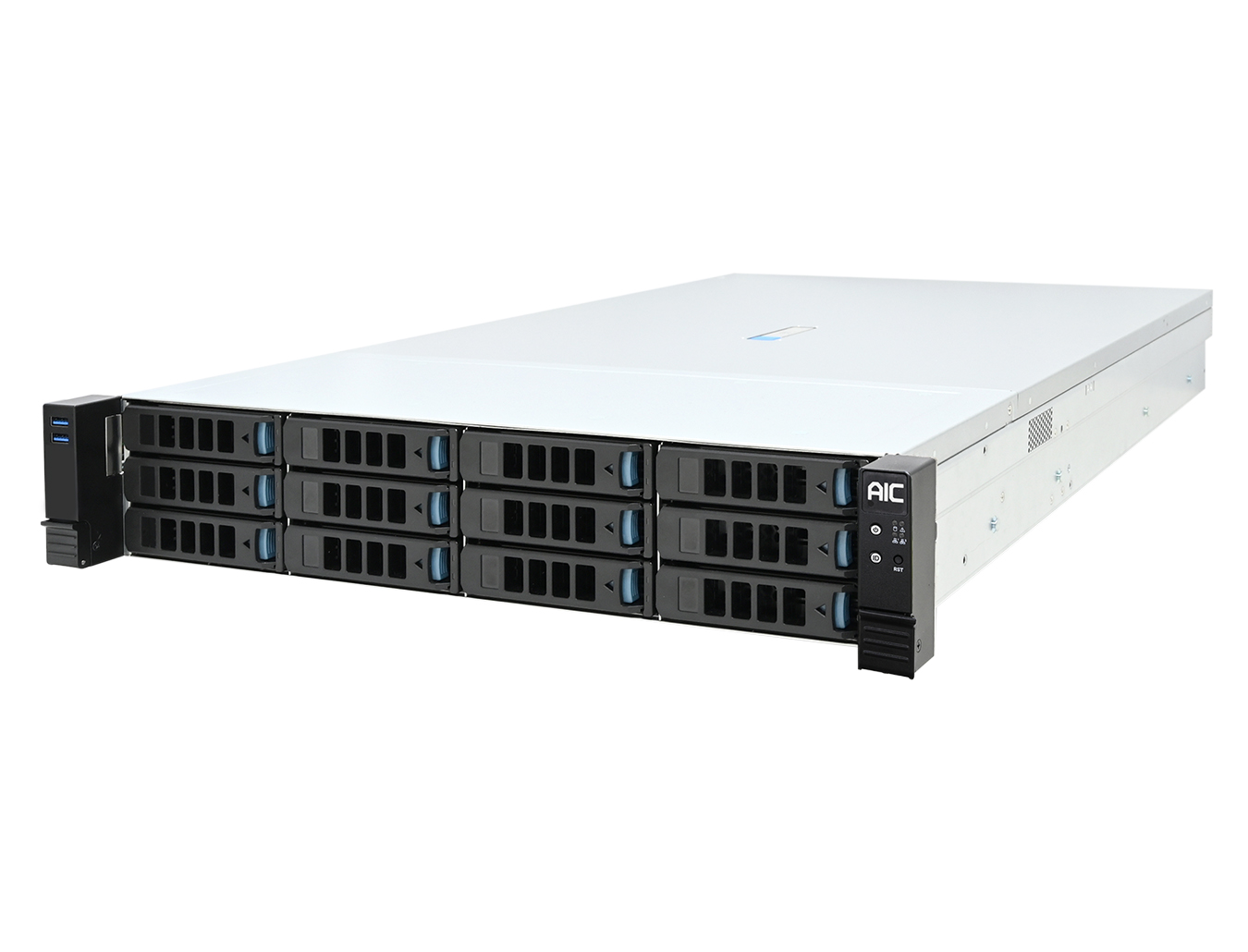

ES1-212-E1(BTO)
AIC new generation 2U storage chassis with high range mother board size support up to EATX+ 12.8” x 14”. Tool-less design are for drive tray, top cover, FAN, BP releasing. Up to 1200w 1+1 redundant PSU support.
KEY FEATURE
General purpose 2U rackmount chassis support SSI EEB and E-ATX M/B, with size up to 12.8”x14” and thickness up to 3.2mm
FEATURE
General purpose 2U rackmount chassis support SSI EEB and E-ATX M/B, with size up to 12.8”x14” and thickness up to 3.2mm
Tool-less design supports quick installation and easy maintenance
FEATURE
Tool-less design supports quick installation and easy maintenance:
- 3.5” & 2.5” drive trays, slide rails, backplane
- Top cover with embedded latch & lock design

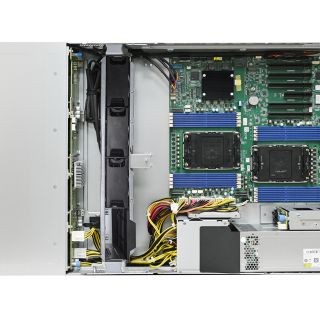

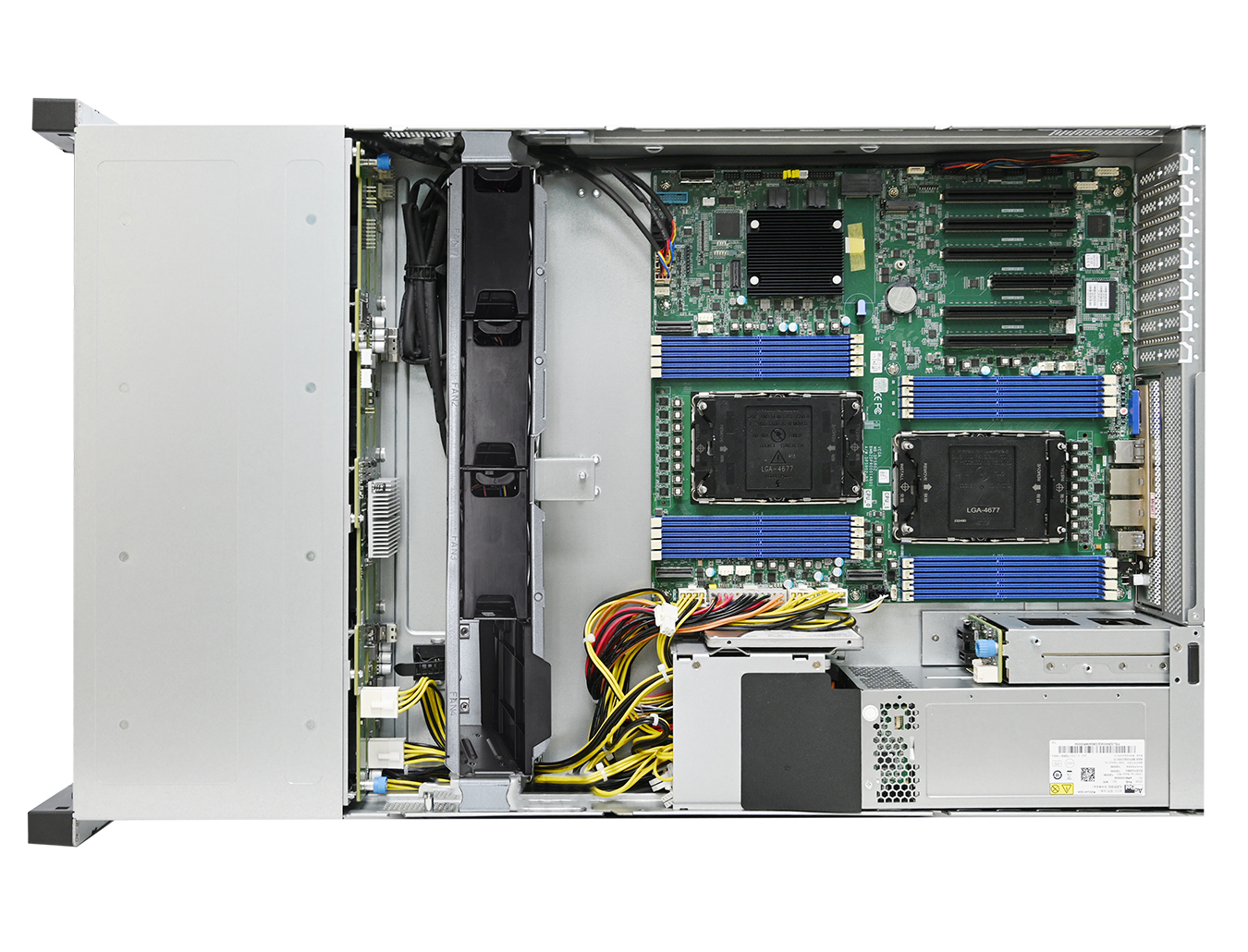

Supreme system cooling
FEATURE
Supreme system cooling:
- 4 x 8038 (4th one optional) or 8056 (optional) hot-swap fans to support TDP up to 350W
- Reserved room for AIC proprietary or 3rd party made closed-loop liquid cooling kit (optional)
Flexible configuration to adapt to a wide variety of applications
FEATURE
Flexible configuration to adapt to a wide variety of applications
- Optional 2 x 2.5” hot-swappable OS drive bays at rear
- Optional bracket for 2 x internal 2.5” drive bays for future storage expandability
- Flexible backplane support: 1 x 12-port 12Gb/s SAS3 EOB, and NVMe Tri-mode backplane
Anti-vibration design for fan holder
FEATURE
Anti-vibration design for fan holder
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 720 x 87
inches
17.2 x 28.35 x 3.4
Industry Standard
EIA-RS310D
Material
SGCC
Color
Front Panel: Black
Cooling
• Standard:
3 x 80x38mm hot swap fans (Optional 4 x 80x38mm hot swap fans)
• Optional:
- 4 x 80x38mm high speed hot swap fans
- AIC proprietary dual cold plate liquid cooling kit
3 x 80x38mm hot swap fans (Optional 4 x 80x38mm hot swap fans)
• Optional:
- 4 x 80x38mm high speed hot swap fans
- AIC proprietary dual cold plate liquid cooling kit
Power Supply
• 800W 1+1 redundant PSU 80+ Platinum/Titanium
• 1200W 1+1 redundant PSU 80+ Platinum
• 1300W 1+1 redundant PSU 80+ Titanium
• 1200W 1+1 redundant PSU 80+ Platinum
• 1300W 1+1 redundant PSU 80+ Titanium
Expansion Slots
7 low profile
Front Panel
System power on/off, System ID, System reset, 2 x USB 3.2 Gen.1x1 ports, and VGA port (optional)
LED Indicators
Power, ID, LAN 1, LAN 2, Drive, and Alert
System board
SSI EEB 3.6 compliant, E-ATX up to 12.8”(W) x 14”(D)
Drive Bays
External
• 12 x 3.5” hot swap
• 2 x 2.5” hot swap (rear, optional)
• 2 x 2.5” hot swap (rear, optional)
Internal
2 x 2.5” (optional)
Backplane
Front :
• 1 x 12-port SAS3/SATA EOB
• 1 x 12-port SAS3/SATA/PCle Gen4 NVMe Tri-mode
Rear :
• 1 x 2-port SATA
• 1 x 2-port SAS3/SATA/PCIe Gen5 NVMe Tri-mode
• 1 x 12-port SAS3/SATA EOB
• 1 x 12-port SAS3/SATA/PCle Gen4 NVMe Tri-mode
Rear :
• 1 x 2-port SATA
• 1 x 2-port SAS3/SATA/PCIe Gen5 NVMe Tri-mode
Storage Temparature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs:
24
lbs:
53
Packaging Dimensions (W x D x H)
mm
620 x 960 x 274
inches
24.4 x 37.8 x 10.8
Cubic Feet
4.62
Container Load Quantity
20'
140
40'
294
40' H
336
Mounting
Standard: 36” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-212E1-08 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS Platinum redundant power supply (GSP), front ear 2x USB 3.0, internal 2.5" OS kit, 3x 8038 hot-swap FAN (9000RPM), low profile rear panel, rail (CN made),2U 12 SAS 12G expander controller on backplane (35X series), single packing EXW Dong Guan, w/o bezel |
