ES1-104-S0

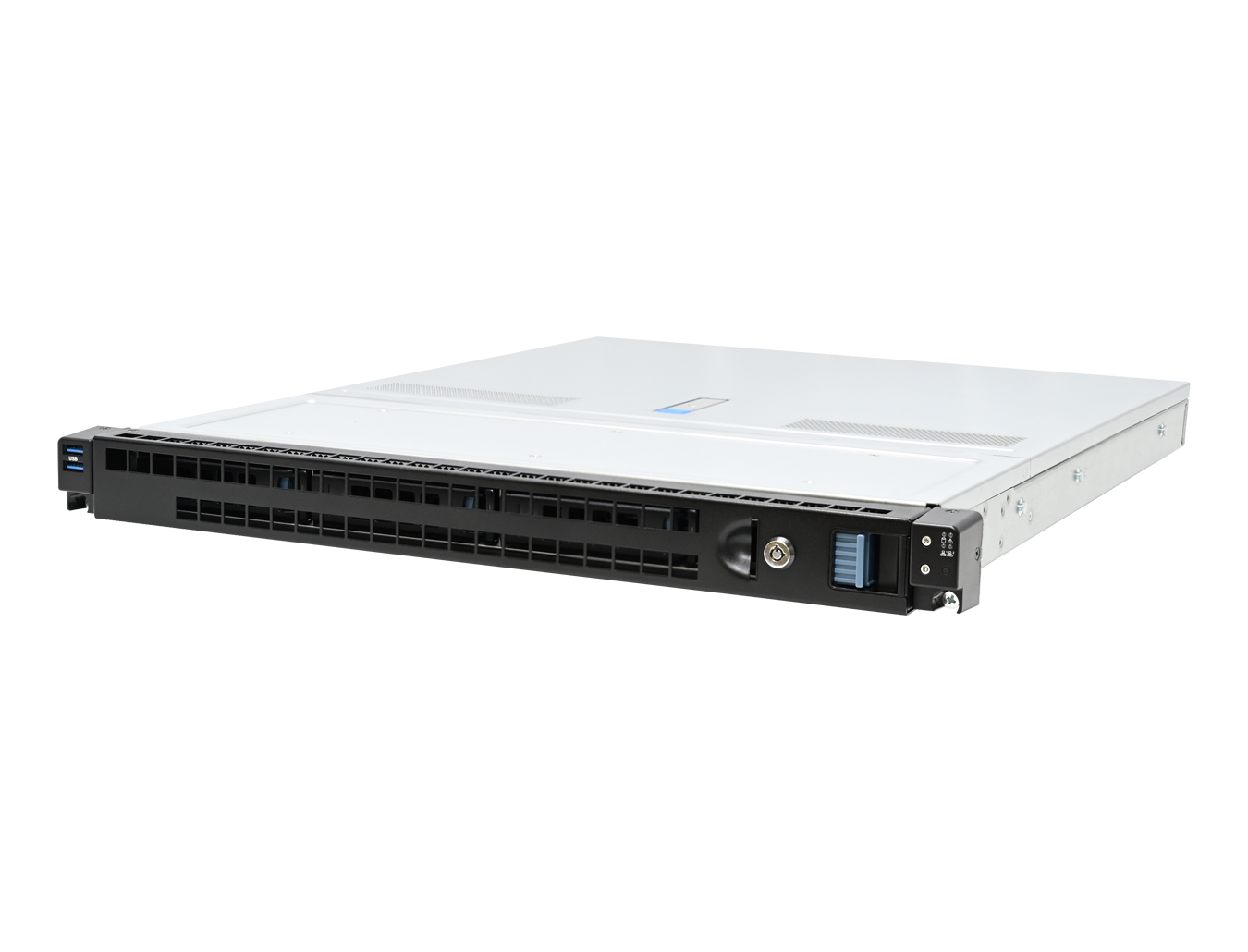

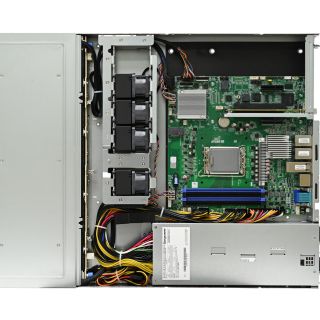

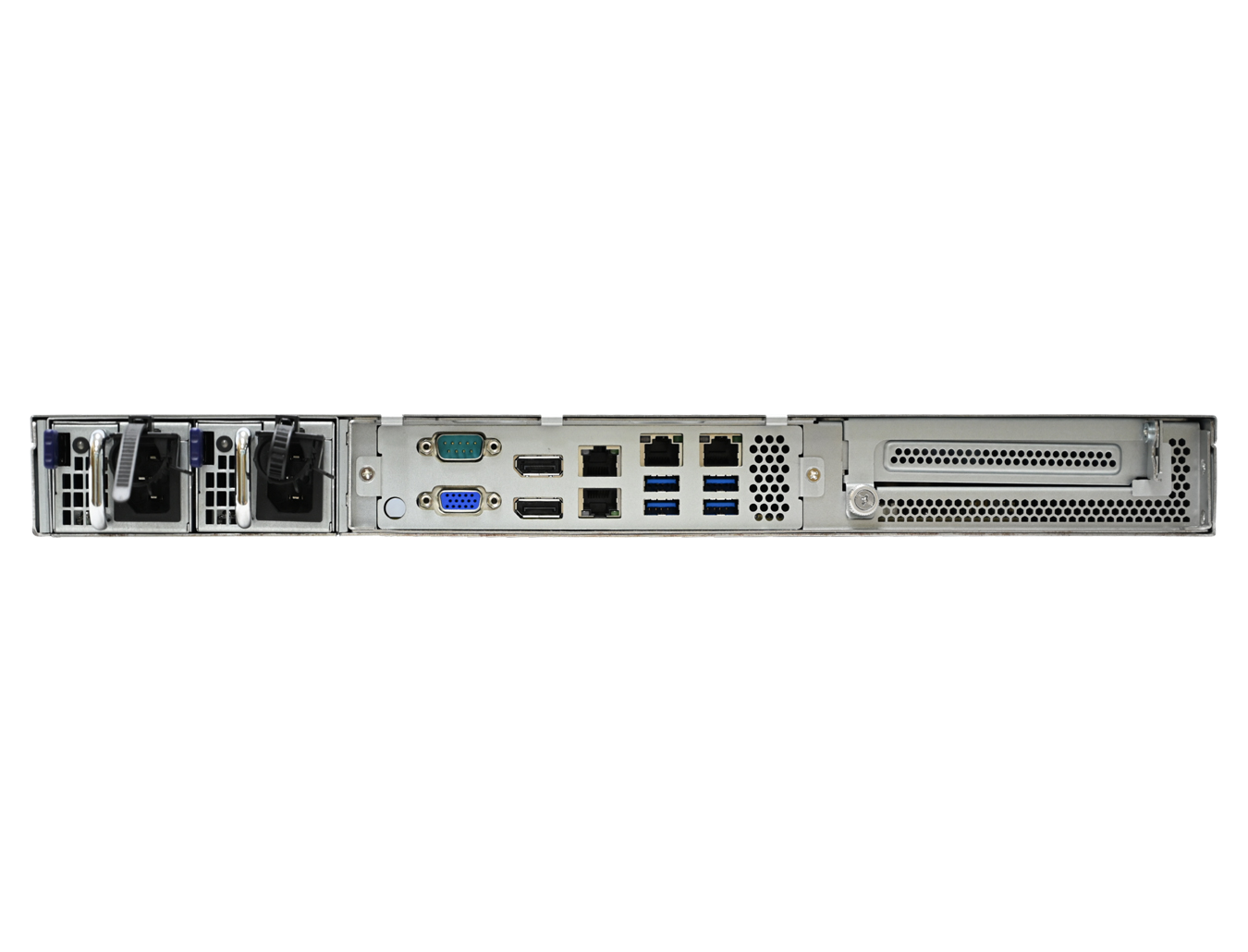

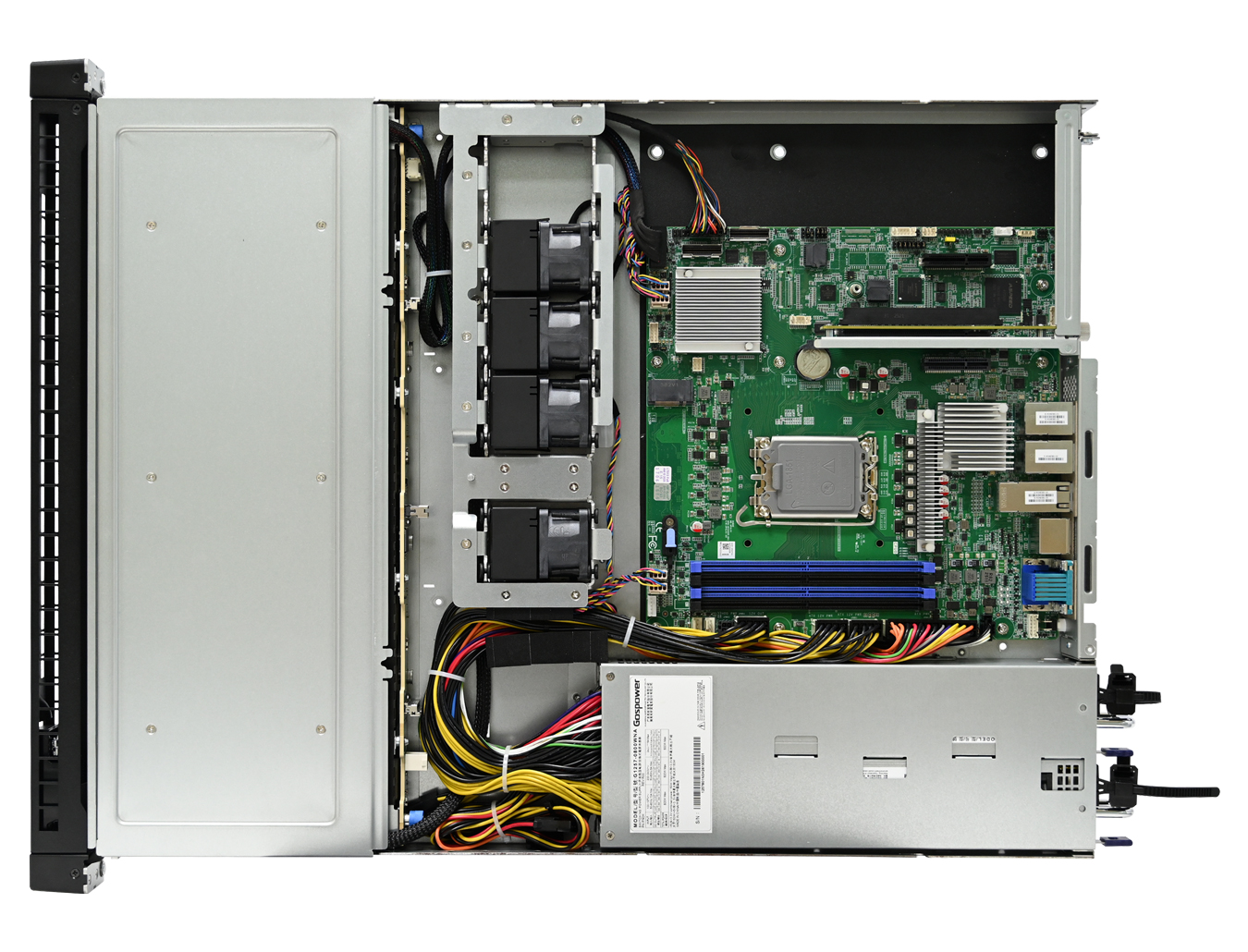

AIC new generation 1U short storage chassis with mother board size up to CEB/ATX, external 4 x 3.5" hot swap and internal 2 x 2.5" (9mm) drive bays supporting. It features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, easy-swap PWM fans, and overall short depth, offering a cost-effective solution ideally suited for a broad range of applications, and especially space-concerned users. (Power supply is included. Motherboard is not included.)
KEY FEATURE
800W redundant PSU or 500W FLEX single power
FEATURE800W redundant PSU or 500W FLEX single power
External 4 x 3.5"/2.5" hot-swap tray, internal 2 x 2.5"
FEATUREExternal 4 x 3.5"/2.5" hot-swap tray, internal 2 x 2.5"
Support CEB/ATX M/B
FEATURESupport CEB/ATX M/B
1U 22.8" depth server storage
FEATURE1U 22.8" depth server storage
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 580 x 43.5
inches
17.2 x 22.8 x 1.7
Industry Standard
EIA-RS310D
Material
SGCC
Color
Front Panel: Black
Cooling
Standard: 4 x 40x28mm easy swap fans
Option: 6 x 40x56mm + 1 x 40x28mm hot swap fans
Option: 6 x 40x56mm + 1 x 40x28mm hot swap fans
Power Supply
• 800W 1U 1+1 redundant PSU 80+ Platinum/Titanium
• 850W 1U 1+1 redundant PSU 80+ Titanium
• 850W 1U 1+1 redundant PSU 80+ Titanium
Expansion Slots
1 x FHHL

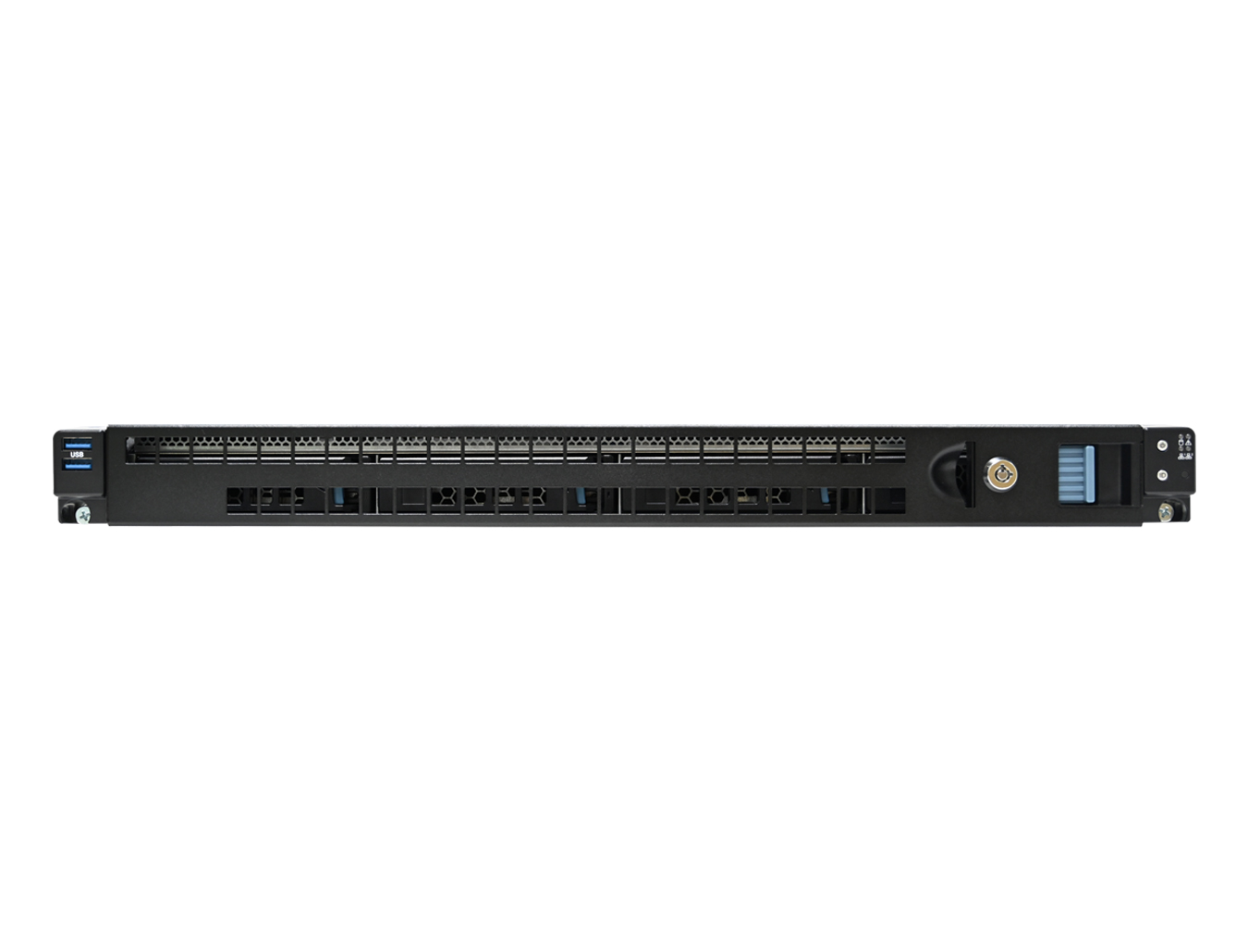

Front Panel
System power on/off, System reset, System ID and
2 x USB 3.0 ports
2 x USB 3.0 ports
LED Indicators
Power, ID, System alert, HDD, LAN
System board
Up to 12”(W) x 10.5”(D) CEB/ATX MB
Drive Bays
External
• 4 x 3.5” hot swap
Internal
2 x 2.5”(optional)
Backplane
• 1 x 4-bay 3.5" 12Gb SAS & 6Gb SATA
• 1 x 4-bay 3.5" Tri-mode NVMe PCIe Gen5,
2Gb SAS & 6Gb SATA
• 1 x 4-bay 3.5" Tri-mode NVMe PCIe Gen5,
2Gb SAS & 6Gb SATA
Storage Temparature
0ºC(32ºF) ~ 50ºC(122ºF)
Humidity
5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs:
16
lbs:
35.3
Packaging Dimensions (W x D x H)
mm
595 x 800 x 239
inches
23.4 x 31.5 x9.4
Cubic Feet
4.35
Container Load Quantity
20'
290
40'
600
40' H
660
Mounting
28” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-104S0-01 | 1U 4x 3.5" hot-swap bays, tool-less 3.5" and 2.5" SDD tray, 800W Titanium redundant power supply, front ear 2x USB 3.0, 2x 9mm 2.5" internal, 4x 4028 easy-swap FAN, rail, 1U 4x 3.5"/2.5" 12G SAS/SATA hot-swap (Passive BP), w/ RC bracket, w/o bezel |
| XE1-104S0-02 | 1U 4x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1U Flex 500W single Gold power supply, front ear 2x USB 3.0, 2x 9mm 2.5" internal, 4x 4028 easy-swap FAN, rail, 1U 4x 3.5"/2.5" 12G SAS/SATA hot-swap (Passive BP), w/ RC bracket, w/o bezel |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| 1U riser card x16 | BRC-PE10065A | PCIE GEN5 x16 riser card |
| 1U 4 bay 3.5" tri-mode BP | BBP2FB10002A | 1U 3.5" 4 port tri-mode PCIe Gen 5 NVMe backplane (BP-FB1U08-TY) |
| 1U 4 bay 3.5" SAS/SATA BP | BBP2HD10023A | 1U 3.5" 4 port SAS/SATA backplane (BP-HD1S11-TY) |
