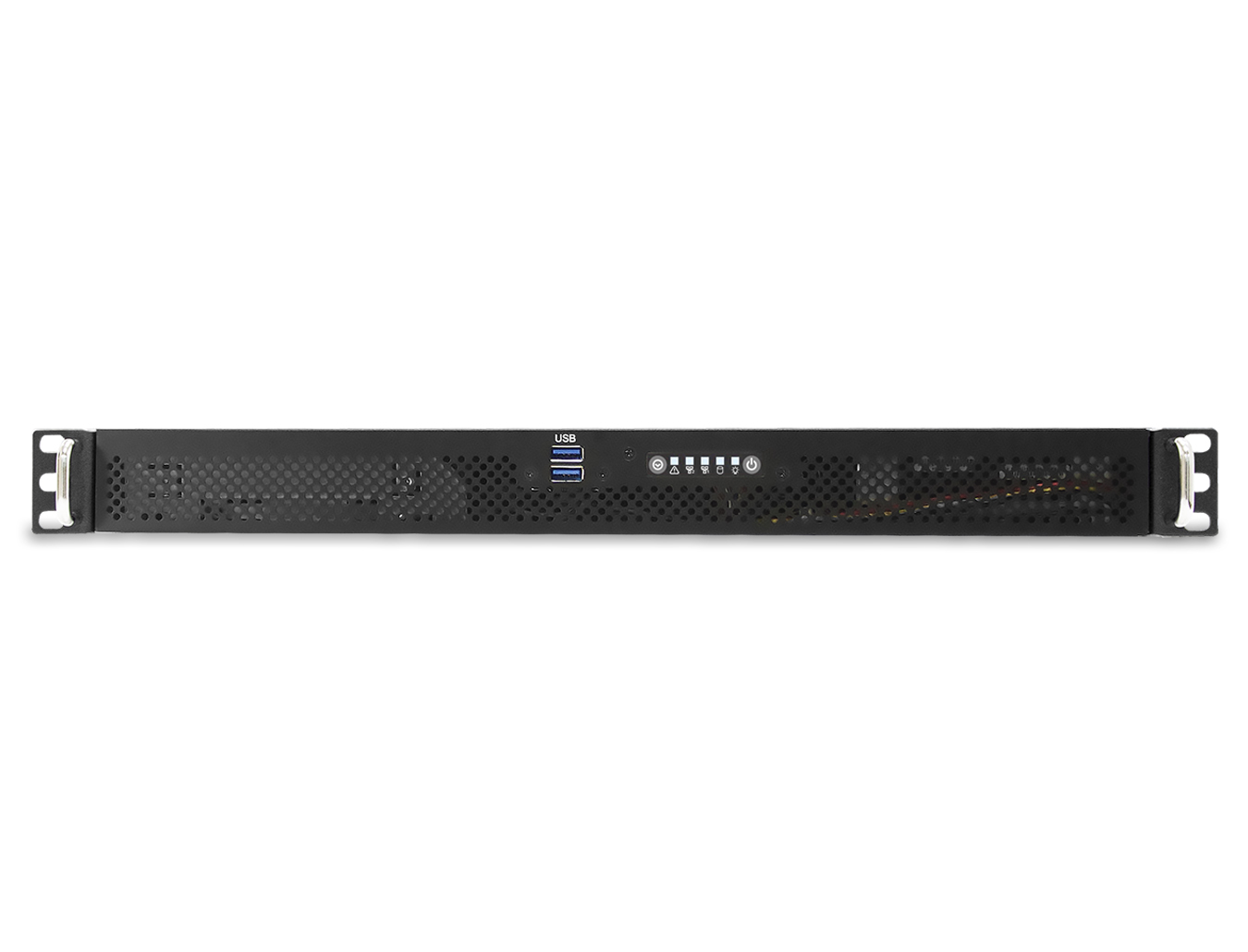

  • RMC-1E_front

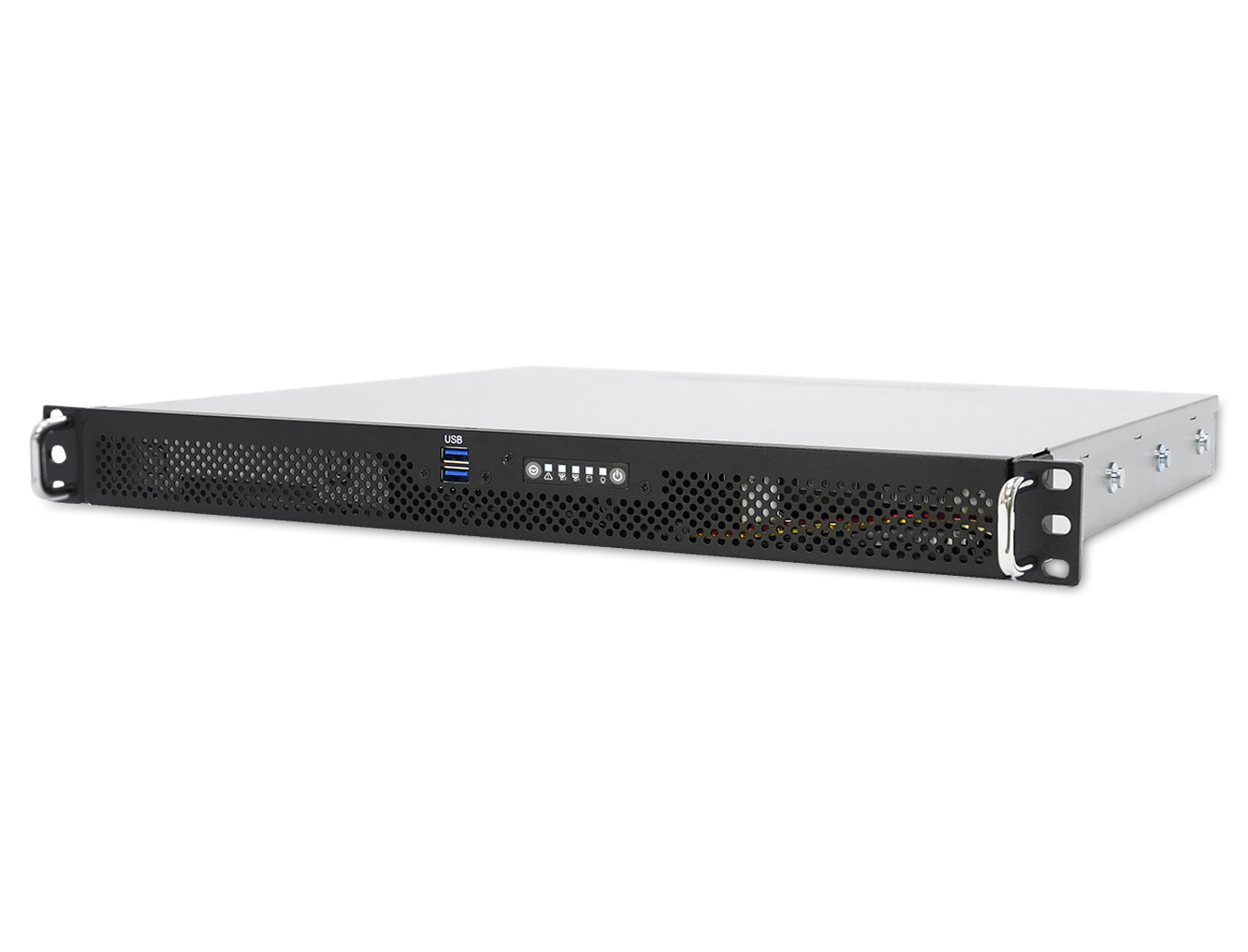

  • RMC-1E_Front45

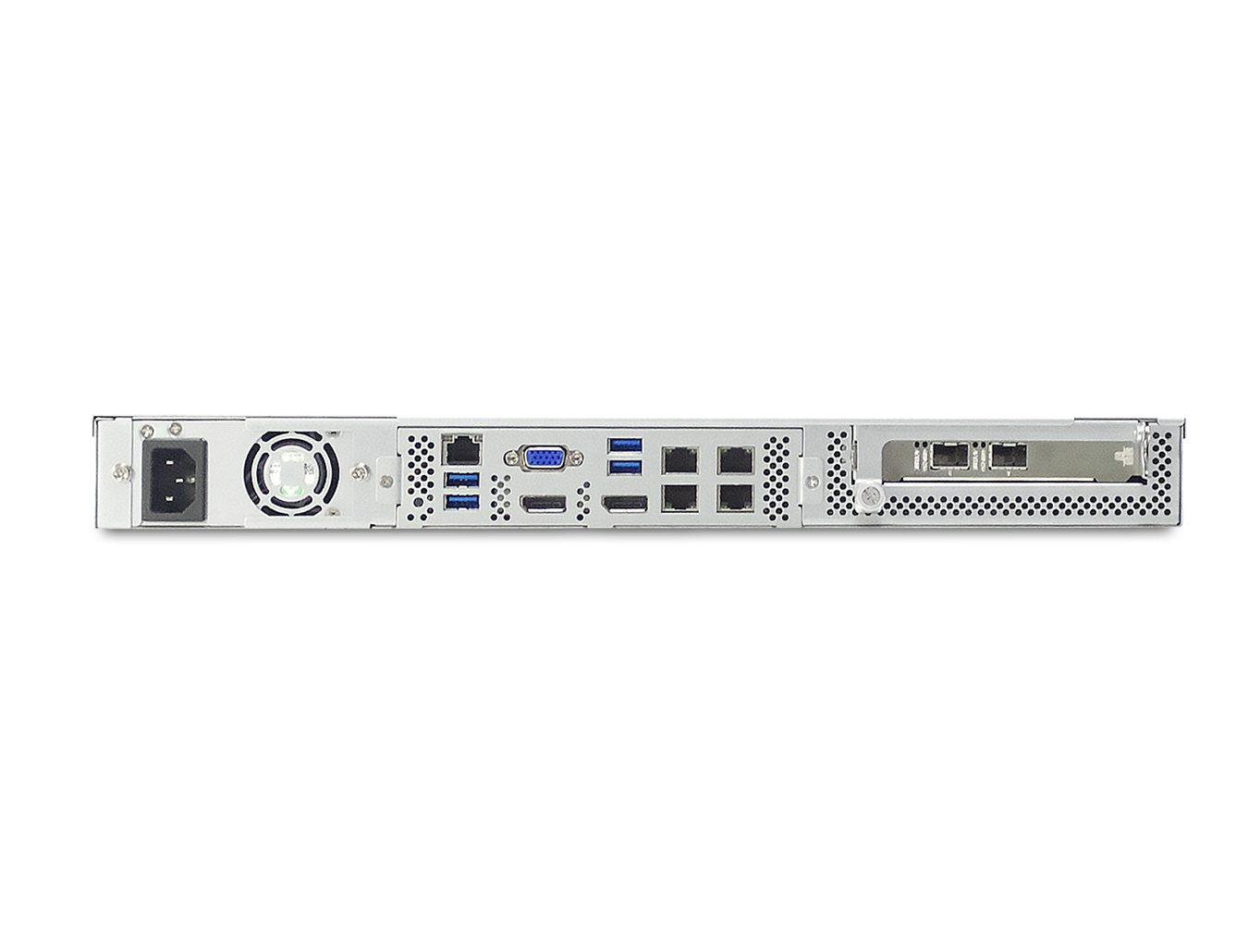

  • RMC-1E_Rear

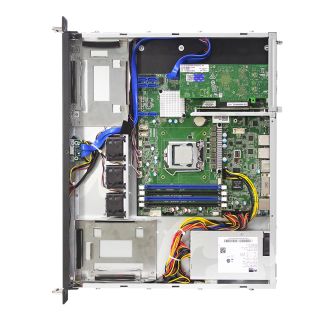

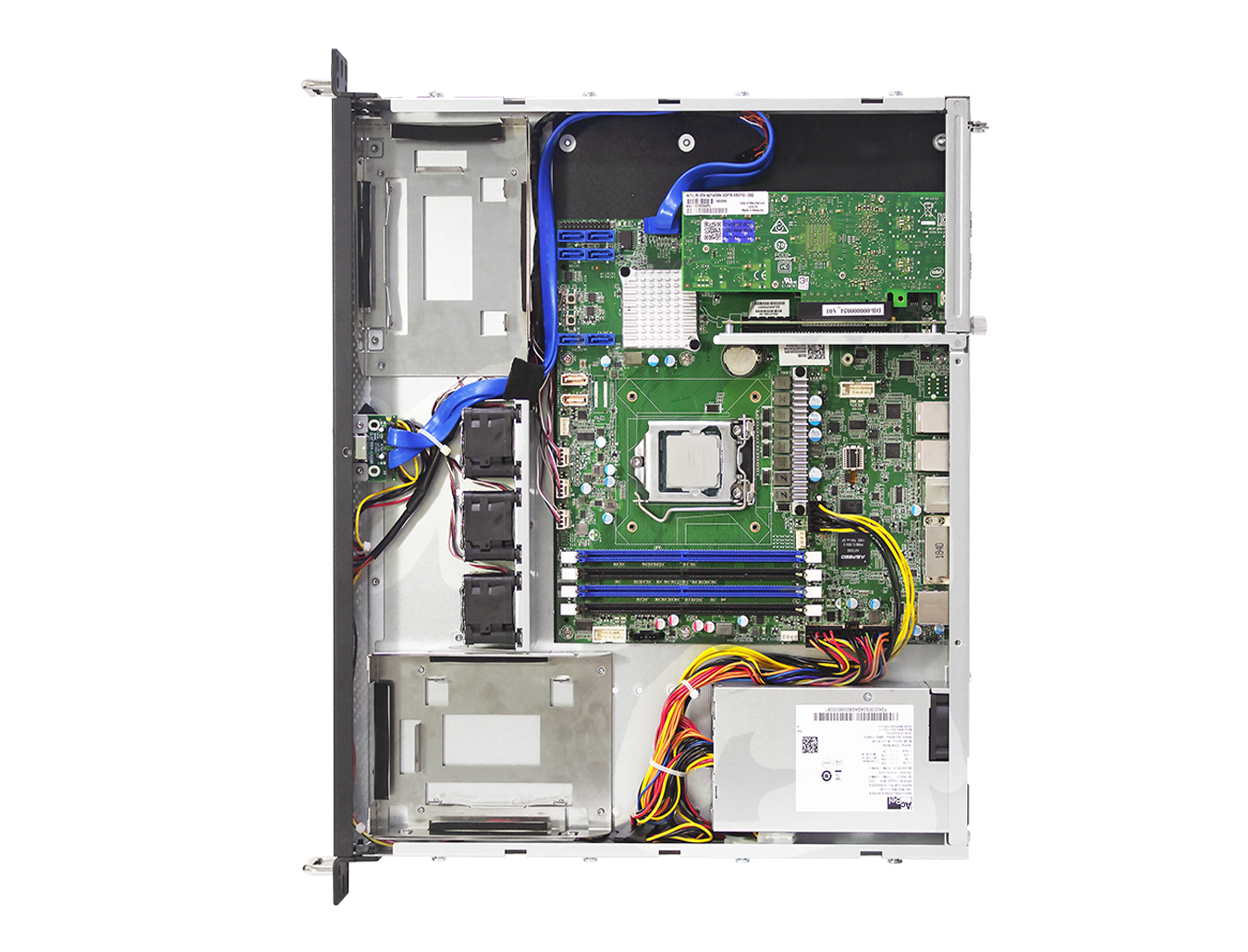

  • RMC-1E_Top_Open
  • RMC-1E_front
  • RMC-1E_Front45
  • RMC-1E_Rear
  • RMC-1E_Top_Open
RMC-1E_front RMC-1E_Front45 RMC-1E_Rear RMC-1E_Top_Open

RMC-1E

Home Products Chassis Industrial PC
RMC-1E is an entry-level 1U appliance chassis with 15” depth for space-sensitive applications, such as Network & Security appliance, firewall, VPN, Telephony and military applications. Standard ATX size (9.6” x 12”) motherboard can be populated into this appliance chassis. RMC-1E is a cost-effective appliance chassis that provide lower TCO (total cost of ownership) to IT professionals for higher ROI. (Motherboard is not included.)
COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE
Front ventilation for superior cooling
FEATURE
Front access dual USB ports
FEATURE
3 x 4028 fans for CPU cooling
FEATURE
Short-depth design for space-critical application
FEATURE
Equipped with 250W power supply
Specification

SPECIFICATION

Main
Sub
Details

Dimensions

mm
427 x 381 x 44.4
inches
16.8 x 15 x 1.75

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SPGC cold-rolled steel

Color

Front Panel : Black

Cooling

Standard :
• 3 x 40x28mm fans

Power Supply

Standard :
• 250W single PSU

Expansion Slots

1 full height via riser card

Front Panel

• System power on/off

• System reset

• 2 x USB ports

LED Indicators

• Power LED

• HDD LED

• LAN 1

• LAN 2

• Alert LED

System board

Up to 12”(W) x 9.6”(D) ATX compliant MB

Drive Bays

External
2 x 3.5” ; 2 x 2.5” (7mm SSD)
Internal
Peripheral Drive

Backplane

Storage Temparature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (W/PSU& Rail)

kgs
7
lbs
15.4

Packaging Dimensions (W x D x H)

mm
546 x 577 x 176
inches
21.5 x 22.7 x 6.9

Cubic Feet

1.9

Container Load Quantity

20'
500
40'
1025
40' H
1235

Mounting

Options :
• 20” friction slides

* All specifications are subject to change without notice.

SKU Information Description

XE1-1E001-01

1U, up to 12”(W) x 9.6”(D) ATX, Internal: 2x 3.5", 2x 2.5" 7mm, Front: 2x USB 3.0, 3x 4028mm  fan, 1x full-height add-on slot, 250W single power supply, w/o rail, w/o riser, black (front)

XE1-1E001-02

1U, up to 12”(W) x 9.6”(D) ATX, Internal: 2x 3.5", 2x 2.5" 7mm, Front: 2x USB 3.0, 3x 4028mm  fan, 1x full-height add-on slot, 250W single power supply, w/o rail, 1x PCIe Gen.3 x8 riser (RC1-EX8), black (front)

XE1-1E001-04

1U, up to 12”(W) x 9.6”(D) ATX, Internal: 2x 3.5", 2x 2.5" 7mm, Front: 2x USB 3.0, 3x 4028mm  fan, 1x full-height add-on slot, w/o power supply, w/o rail, w/o riser, black (front)

XE1-1E001-05

1U, up to 12" (W) x 9.6" (D) ATX, Internal: 2x 3.5", 2x 2.5" 7mm, Front: 2x USB 3.0, 3x 4028mm fan, 1x full-height add-on slot, 350W single power supply, w/o rail, w/o riser, black (front)
FRU Information
Standard Parts List Part Number Qty Description
Riser Card  DB-000000034 1 PCIe X8 riser card
Slide Rail  H5521T200009 1 Ball bearing slide rail
Power Supply PS-B00000145 1 250W single power supply
