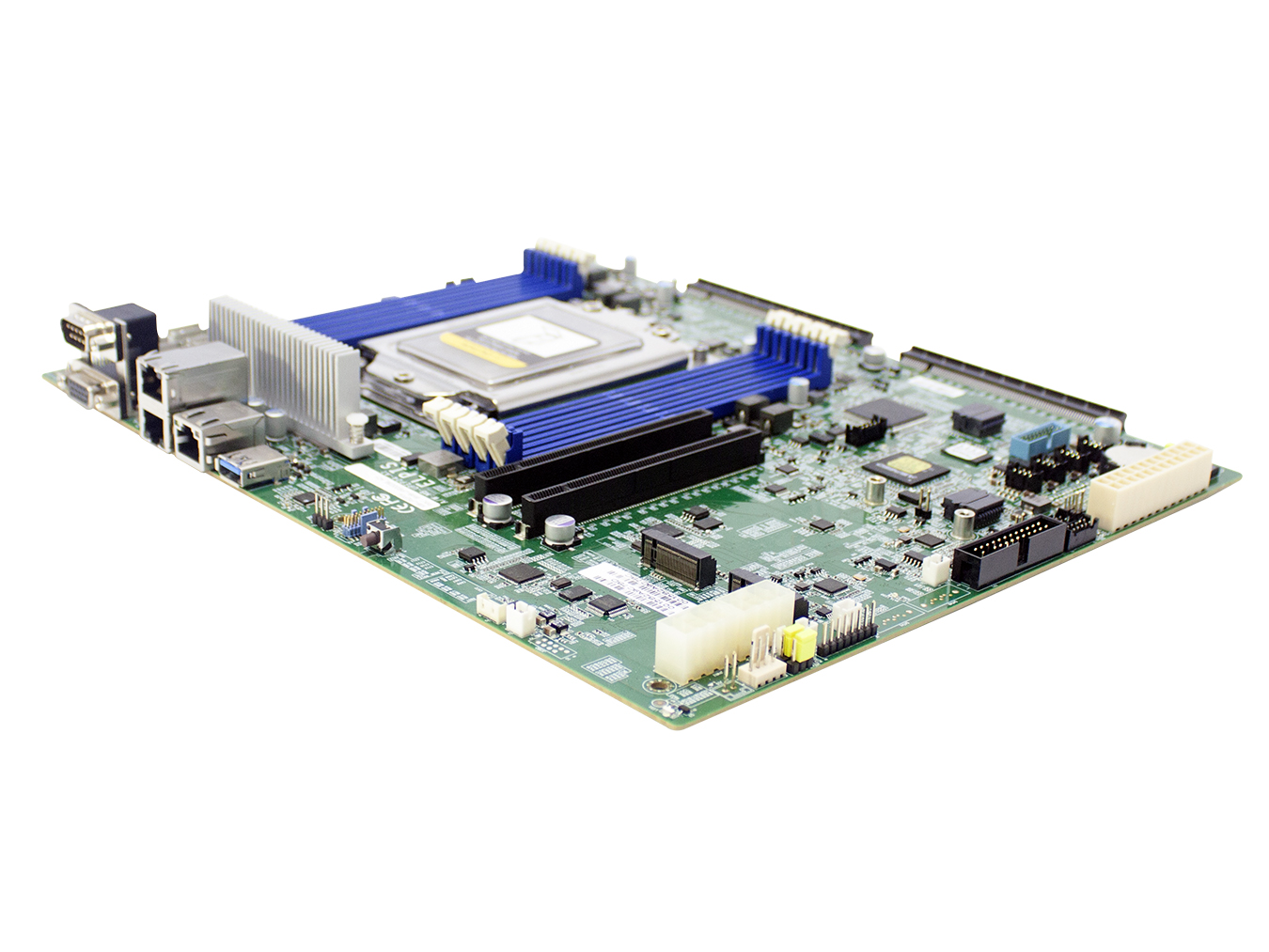

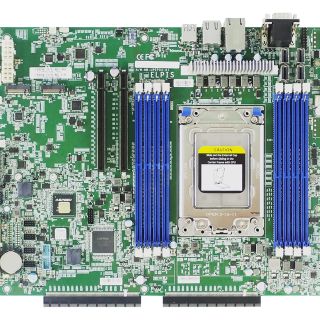

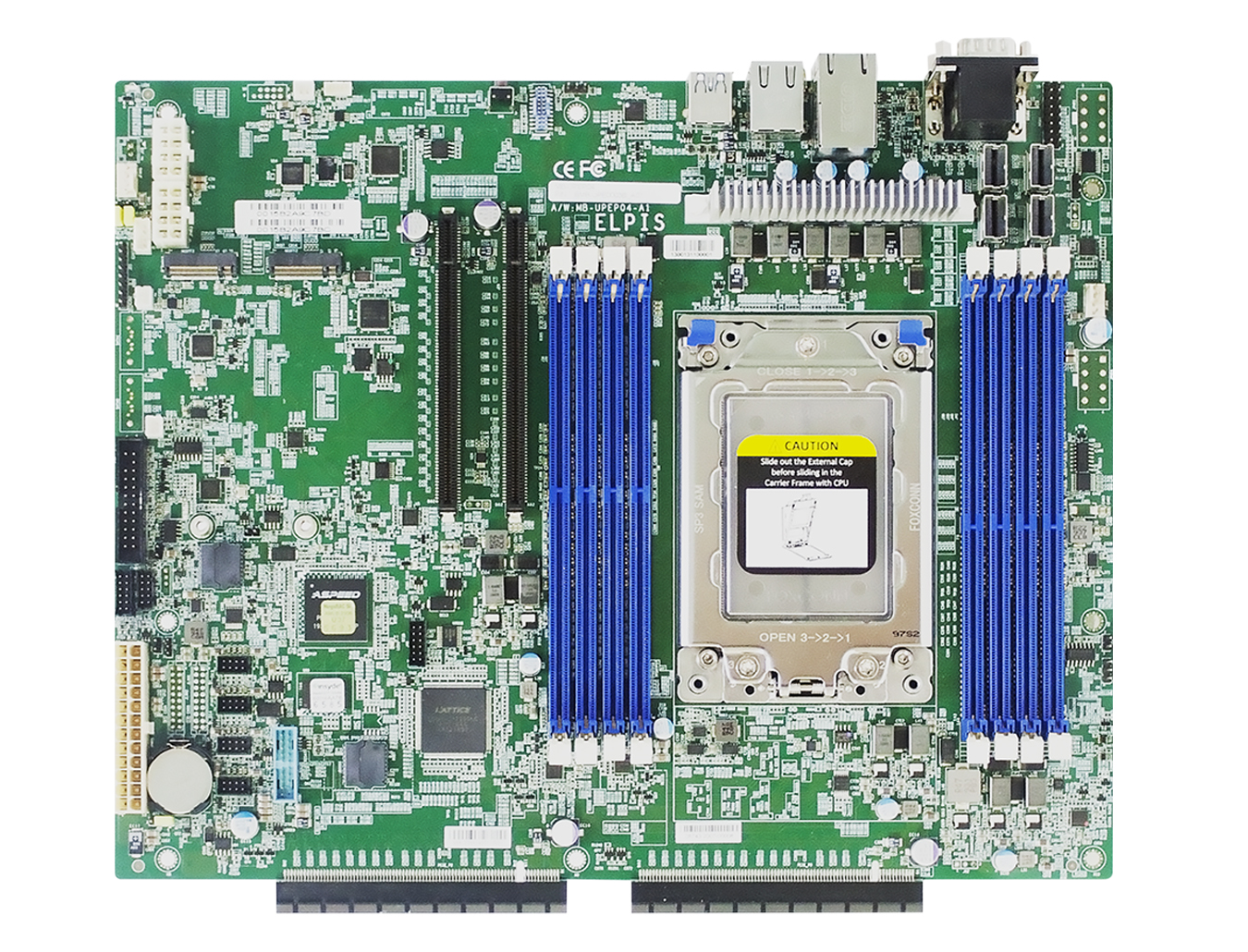

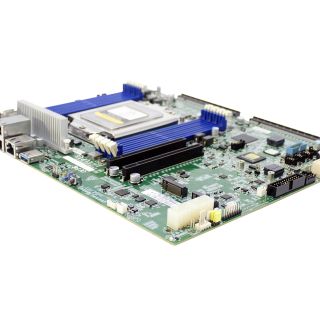

The Elpis server board uniquely features the latest single AMD EPYC™ 7003/7002/7001 processor with up to 64 AMD Zen x86 cores and higher memory capacity of 8 slots up to 2TB. Based on AMD Zen microarchitecture, distinguished for 64 cores and 128 threads, AMD Security Root-of-Trust Technology for advanced data protection, and integrating a single processor socket for greater I/O extensions, the server board is genuinely dedicated to offer an ideal choice for pursuing greater bandwidth, reduced power consumption, and scalability in your server. With the goal of optimization, this product seeks to achieve versatility, system expansion, and easy management. The server board implements PCIe Gen4 slots, PCIe Slimline connectors, SATA (support RAID 0/1) with support for various edge connectors, including COM, VGA, and USB 3.0 ports. Innovatively integrating BIOS Insyde/AMI and Aspeed AST2500 Advanced PCIe Graphics to the server board, Elpis profoundly delivers immediate and efficient control with Onboard Baseboard Management Controller for managing heavy workflow and executing complex operations.
KEY FEATURE
Supports AMD EPYC™ 7003/7002/7001 processor
FEATURE
Supports AMD EPYC™ 7003/7002/7001 processor
Supports eight DDR4 DIMM slots up to 2TB memory capacity
FEATURE
Supports eight DDR4 DIMM slots up to 2TB memory capacity
Supports two PCI Express Gen4/Gen3 x16 slots (Gen4 supported by EPYC™ 7003/7002 CPU)
FEATURE
Supports two PCI Express Gen4/Gen3 x16 slots (Gen4 supported by EPYC™ 7003/7002 CPU)
Supports four Slimline x4 with PCI Express Gen4/Gen3 (Gen4 supported by EPYC™ 7003/7002 CPU)
FEATURE
Supports four Slimline x4 with PCI Express Gen4/Gen3 (Gen4 supported by EPYC™ 7003/7002 CPU)
Onboard dual GbE ports come from 2 x Intel® Ethernet Controller I210
FEATURE
Onboard dual GbE ports come from 2 x Intel® Ethernet Controller I210
Onboard Baseboard Management Controller for system management and IPMI control
FEATURE
Onboard Baseboard Management Controller for system management and IPMI control
Embedded components for 5+ year-long life
FEATURE
Embedded components for 5+ year-long life
Specification
SPECIFICATION
Main
Sub
Details
System
Dimensions
• mm : 244 x 304.80
• inches : 9.6 x 12
• inches : 9.6 x 12
Processor-Support
Single AMD EPYC™ 7003/7002/7001 processor
CPU-TDP
280W (Support by EPYC™ 7003 CPU)
UPI-Speeds
Socket-Type
Socket SP3
System-Memory
• DDR4 3200/2933MHz RDIMM/LRDIMM
• Total 8 memory slots; 8 channel
• Supports up to 2TB (support by EPYC™ 7003/7002 CPU)
• Total 8 memory slots; 8 channel
• Supports up to 2TB (support by EPYC™ 7003/7002 CPU)
Expansion-Slots
• 4 x Slimline x4 with PCI Express Gen4/Gen3 (Gen4 supported by EPYC™ 7003/7002 CPU)
• 2 x PCI Express Gen4/Gen3 x16 slots (Gen4 supported by EPYC™ 7003/7002 CPU)
• 2 x PCI Express Gen4/Gen3 x16 front side edge conn. (Gen4 supported by EPYC™ 7003/7002 CPU)
• 2 x NGFF(M.2) M Key(2280) support SATA
• 2 x PCI Express Gen4/Gen3 x16 slots (Gen4 supported by EPYC™ 7003/7002 CPU)
• 2 x PCI Express Gen4/Gen3 x16 front side edge conn. (Gen4 supported by EPYC™ 7003/7002 CPU)
• 2 x NGFF(M.2) M Key(2280) support SATA
System-BIOS
BIOS-Type
• For EPYC™ 7002/7001-Insyde UEFI BIOS
• For EPYC™ 7003-AMI UEFI BIOS
• For EPYC™ 7003-AMI UEFI BIOS
BIOS-Features
• ACPI
• PXE
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• PCIe Hotplug
• SRIOV
• iSCSI
• TPM
• PXE
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• PCIe Hotplug
• SRIOV
• iSCSI
• TPM
On-board-Devices
SATA
AMD CPU Integrated I/O
• 2 x M.2 SATA 6.0 Gb/s support RAID 0/1 (by ASMedia ASM1061R)
• 2 x M.2 SATA 6.0 Gb/s support RAID 0/1 (by ASMedia ASM1061R)
BMC
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish
• SMASH Support
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish
• SMASH Support
Network-Controller
• 2 x Intel I210 Ethernet Controller support dual ports 1GbE with RJ45 connectors on rear I/O
• Realtek RTL8211E for BMC dedicated management port
• Realtek RTL8211E for BMC dedicated management port
Graphics
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

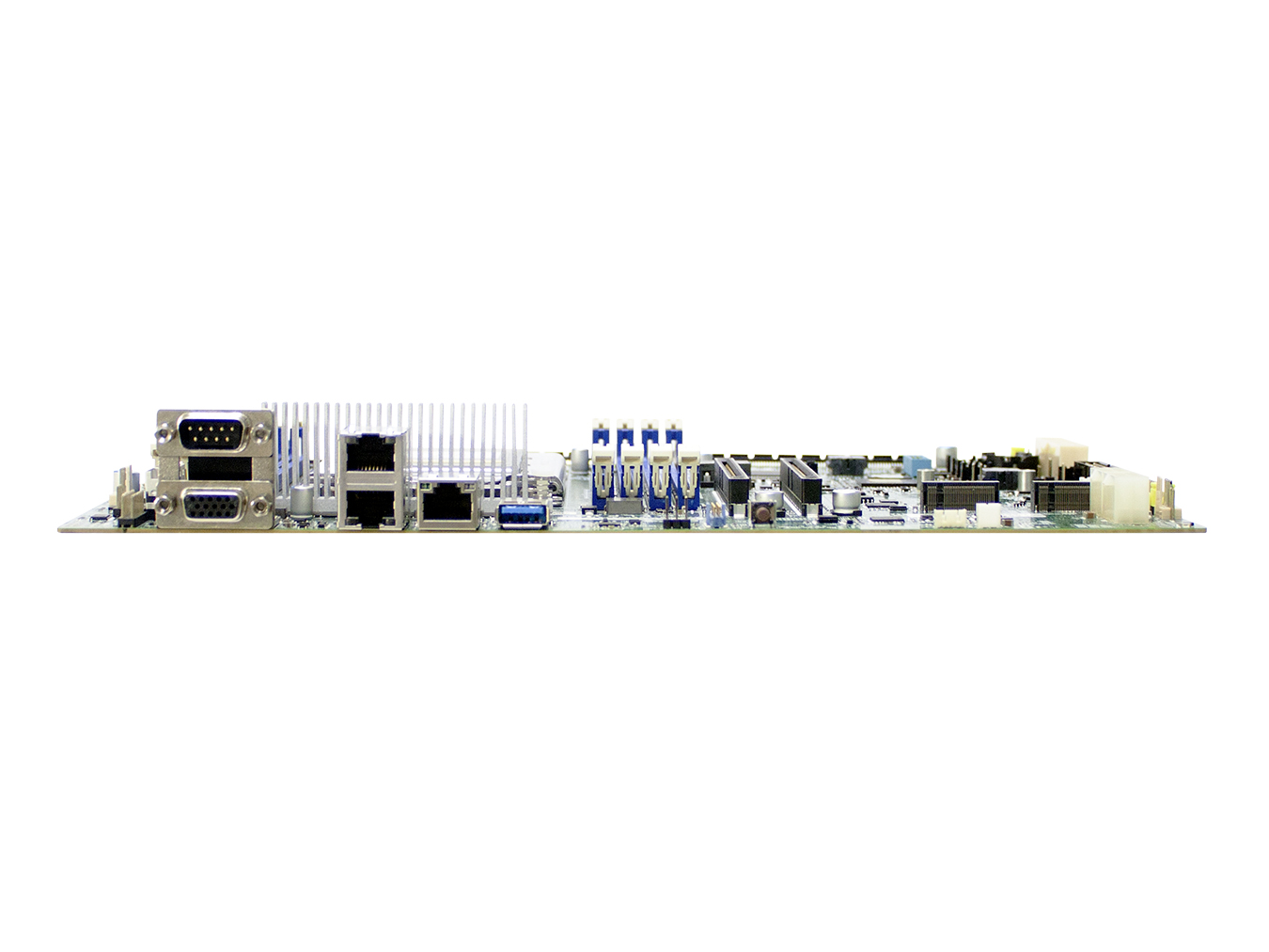

Input-Output
SATA
AMD CPU Integrated I/O
• 2 x M.2 SATA 6.0 Gb/s support RAID 0/1 (by ASMedia ASM1061R)
• 2 x M.2 SATA 6.0 Gb/s support RAID 0/1 (by ASMedia ASM1061R)
LAN
• 2 x GbE RJ45, and one within BMC shared management
• 1 x GbE RJ45 dedicated to BMC management
• 1 x GbE RJ45 dedicated to BMC management
USB
• 1 x USB 3.0 Type A connectors on rear I/O
• 2 x USB 3.0 by onboard by pin header
• 2 x USB 3.0 by onboard by pin header
Display
• 1 x external VGA port
• 1 x internal VGA pin-header (share with external VGA port)
• 1 x internal VGA pin-header (share with external VGA port)
Serial-Port
• 1 x DB-9 for COM port
• 1 x internal COM pin-header
• 1 x internal LCM (UART type) pin-header
• 1 x internal COM pin-header
• 1 x internal LCM (UART type) pin-header
Others
Additional-Information
Security
1 x TPM 2.0 onboard
* All specifications are subject to change without notice.
| Ordering Information | Description |
|---|---|
| BMB-UPE0003B | PCBA/MOTHER BOARD/MB-UPEP04/ELPIS/STANDARD SKU OSE/PCBA/2U/AMD CPU*1/MEMORY*8/PCIE 16 SLOT *4/SLIMX8*4/RJ45*2/USB3.0*1/VGA*1 Support Rome/Naples |
| BMB-UPE0003C | PCBA/MOTHER BOARD/MB-UPEP04/ELPIS/STANDARD MILAN SKU OSE/PCBA/2U/AMD MILAN CPU*1/BIOS AMI/MEMORY*8/PCIE 16 SLOT *4/SLIMX8*4/RJ45*2/USB3.0*1/VGA*1 Support Milan |
