CB502-NM

Home Products Server GPU Server PCIe Gen5

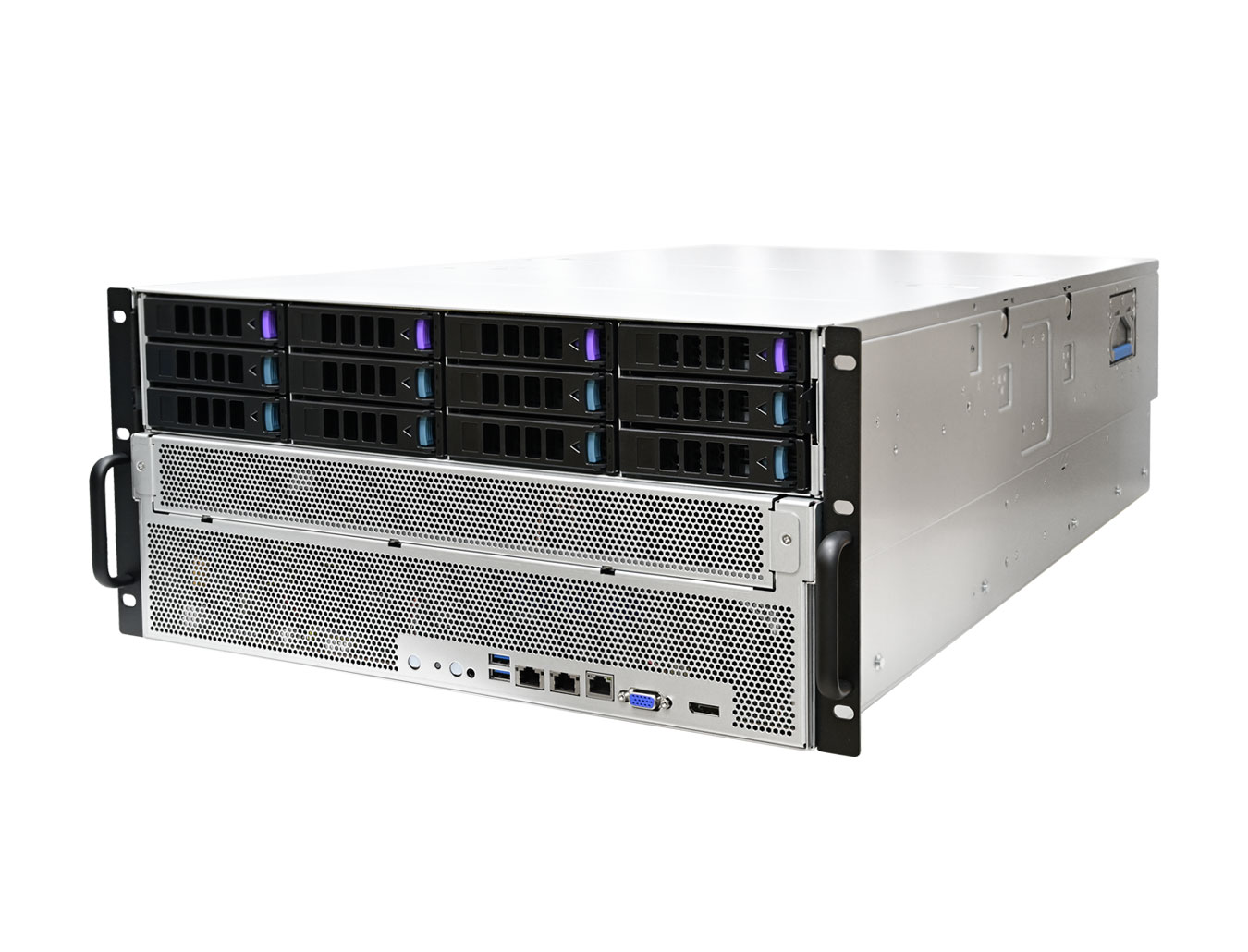

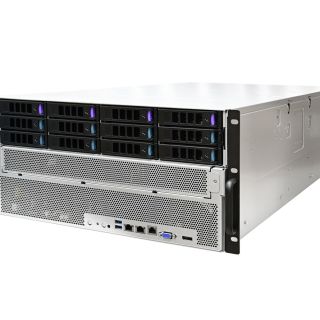

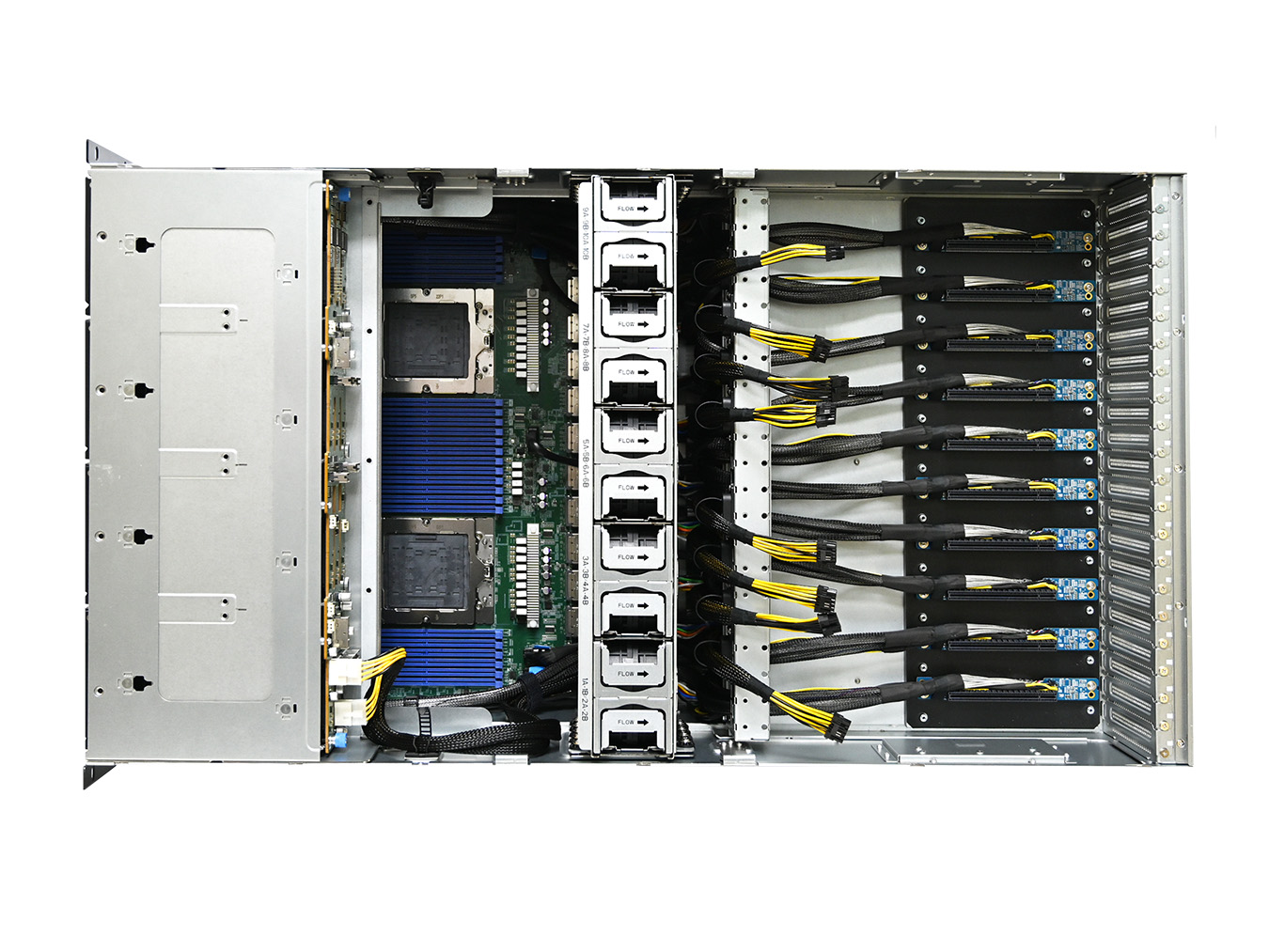

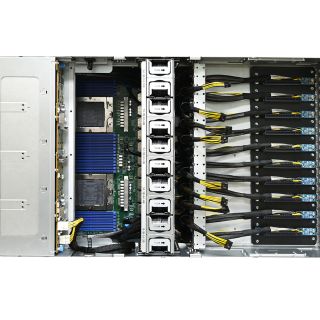

The CB502-NM is a high-performance 5U GPU server. Powered by dual AMD EPYC™ 9004/9005-series processors (Genoa/Turin) and supporting up to 24 DDR5 memory modules and PCIe Gen5 expansions, it delivers exceptional computing efficiency and scalability. The system provides 12 tri-mode storage bays for flexible data configurations and accommodates up to eight dual-slot GPUs. With up to 16000W(5+1 3200W modules) Titanium redundant power supply options, the CB502-NM ensures stable, reliable performance for enterprise-level deployments.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

5U 8 GPU server supports maximum 8 dual-slot GPU cards with up to 600W each

FEATURE

Supports dual AMD EPYC™ 9004/9005 SP5 CPU

FEATURE

Supports 12 x DDR5 memory DIMM per processor

FEATURE

16000W(5+1 3200W modules) Titanium redundant power supply

Specification

Specification

SPECIFICATION

Main

Sub

Details

Dimensions

435 x 831 x 218

inches

17.1 x 32.7 x 8.6

Motherboard

AIC Server Board Norma

Processor

Processor Support

• Dual AMD EPYC™ 9004/9005-series processor - Genoa/Turin

• Supports CPU TDP 400W

(Please contact AIC Technical Support for more info/details about optimized...)

CPU Interconnection

QPI Speed : 32 GT/s xGMI

Socket Type

Socket SP5

Chipset Support

System Memory

• DDR5 4800 MT/s(1DPC) by Genoa; DDR5 6000 MT/s(1DPC) by Turin

• Total 24 memory slots; 12 channel per CPU (1DPC)

Front Panel

System power on/off, System reset, ID button

LEDs

Power status, Drive activity, LAN activity, System alert, System ID

Drive Bays

External

3.5" hot swap x 12 Tri-mode

Internal

Backplane

Expansion Slots

PCIe 5.0

Rear PCIe 5.0 :

• 9 x16 FHFL, (21 slots space)

• (Cable CEM is flexibly applied depending on the dual slots or triple slots)

PCIe 4.0

System BIOS

BIOS Type

AMI UEFI BIOS

BIOS Features

• ACPI

• PXE

• WOL

• AC loss recovery

• IPMI 2.0 KCS mode interface

• SRIOV

• SMBIOS

• TPM

• Serial console redirection

• PCIe hotplug

On-board Devices

SATA

2 x SATA 7-pin

IPMI

Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor

• Baseboard Management Controller

• Intelligent Platform Interface 2.0 (IPMI 2.0)

• iKVM, Media Redirection, IPMI over LAN, Serial over LAN

• HTML5

• Redfish

Network Controllers

• Realtek RTL8211FS 1GbE for BMC dedicated management port

• Broadcom BCM5720 dual port 1GbE (NCSI for share NIC)

Graphics

• Integrated VGA support by ASPEED AST2600

• Resolution up to 1920x1200 @60Hz 32bpp

Rear I/O

LAN

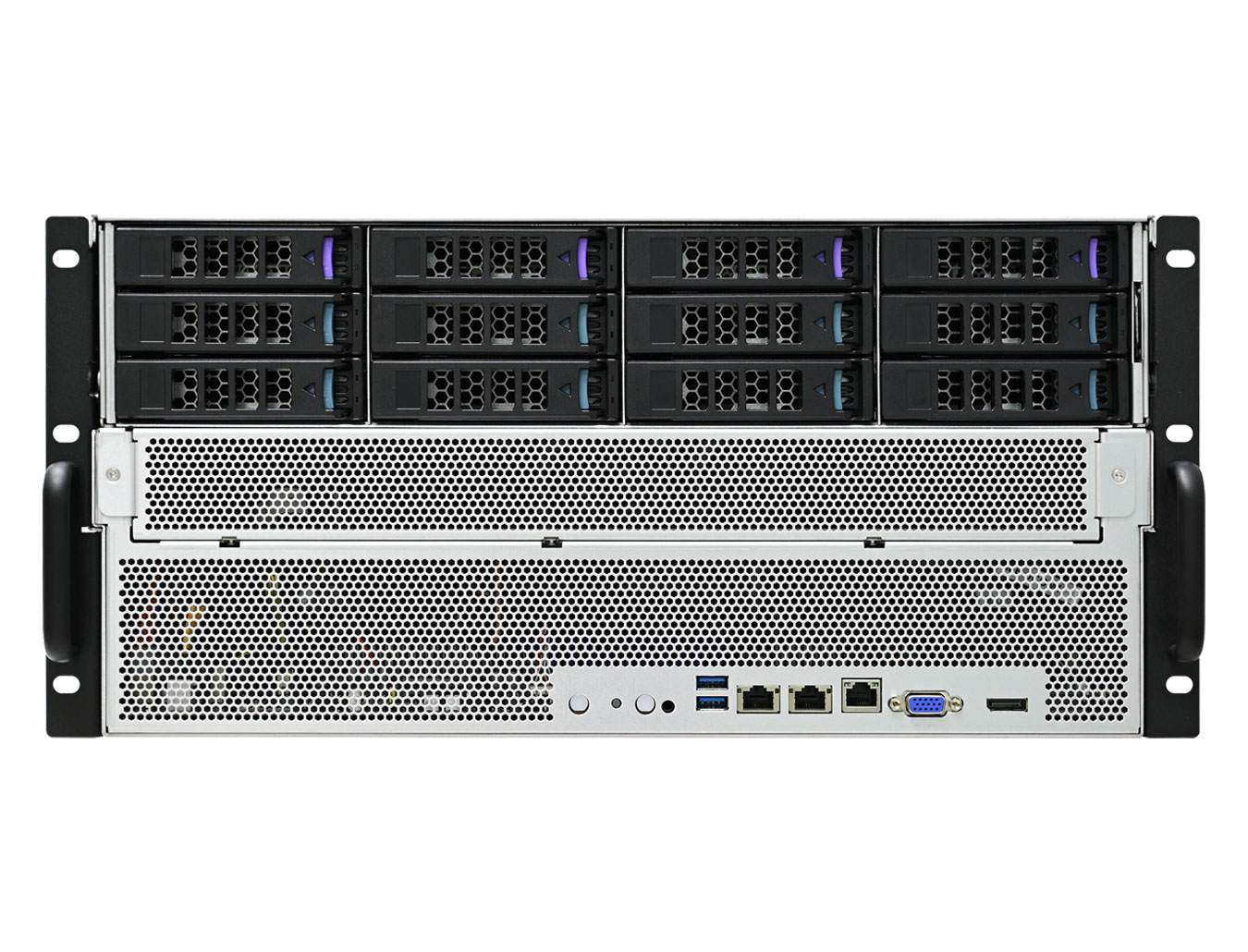

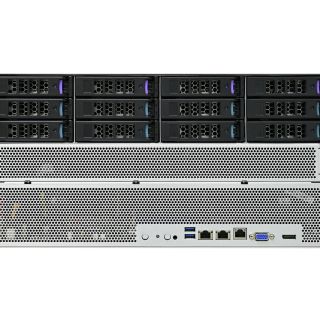

[Front I/O]

• 1 x RJ45 GbE connector for BMC dedicate management port

• 2 x RJ45 1GbE connectors

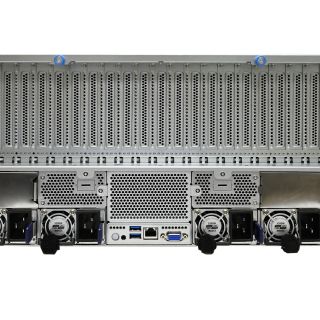

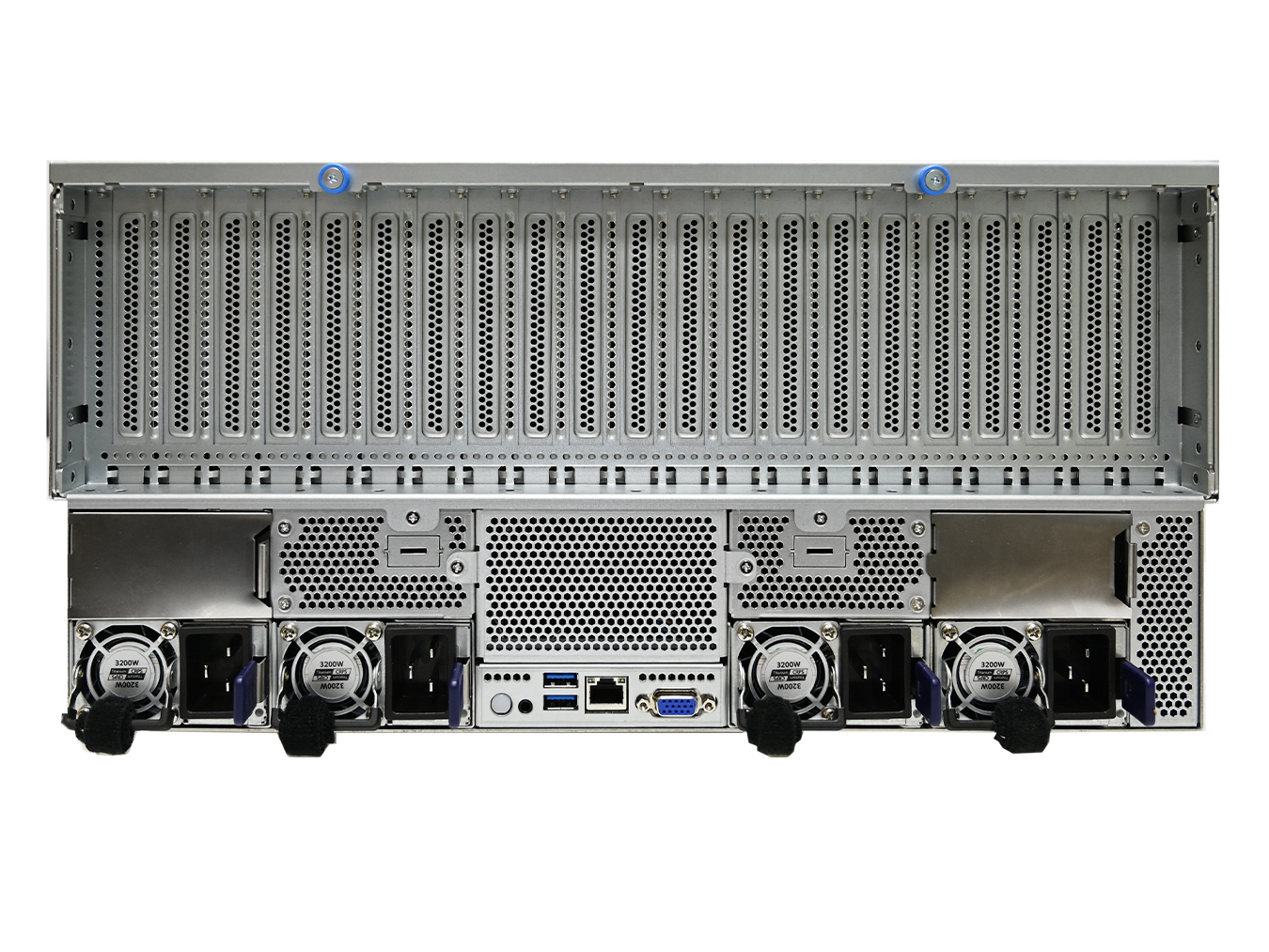

[Rear I/O]

• 2 x RJ45 1GbE connectors

USB

[Front I/O]

2 x USB 3.2 Gen 1 Type A

[Rear I/O]

2 x USB 3.0 Type-A connectors

Video Output

[Front I/O]

• 1 x DB-15 VGA connector

• 1 x Mini display port

[Rear I/O]

• 1 x DB-15 VGA connector

Serial Port

[Rear I/O]

• 1 x COM connector (Audio Jack)

Power Supply

16000W(5+1 3200W modules) Titanium redundant power supply

System Cooling

10 x 8056mm hot swap fans

System Management

• IPMI 2.0

• KVM over IP

• Media redirection

• Temperature, fan, voltage, PSU sensor monitor

• System temperature

• System ID / System fail indicator

• Remote power on/off/reset

• SEL message alarm through mail

• SNMP support

Environmental Specifications

• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)

• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)

• Storage operating humidity : 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

51.85

lbs

114.3

Packaging Dimensions (W x D x H)

625 x 1130 x 430

inches

24.6 x 44.5 x 17

Mounting (Standard)

37” tool-less slide rail

* All specifications are subject to change without notice.
