CB403-VA

Home Products Server GPU Server PCIe Gen5

The CB403-VA is a 4U high-performance GPU server. It supports dual 4th and 5th Gen Intel® Xeon® Scalable processors (Sapphire Rapids / Emerald Rapids) and offers 16 DDR5 DIMM slots. The system provides 8x3.5" hot-swappable SAS/SATA drive bays, 4x2.5" hot-swappable NVMe/SAS/SATA drive bays, ensuring flexible storage expansion. With support for up to four dual-slot GPU cards, the CB403-VA delivers strong acceleration capabilities within a compact 4U chassis. Powered by a 2000W 1+1 redundant 80+ Platinum PSU (with an optional 3200W upgrade), it ensures stable and efficient operation for a wide range of enterprise workloads.

COMPARE REQUEST A QUOTE DOWNLOAD

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

Dimensions

438 x 658 x 175

inches

17.25 x 25.9 x 6.9

Motherboard

AIC Server Board Vega

Processor

Processor Support

• Dual 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids CPU)
• Dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU)
*Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system

CPU Interconnection

16/20GTs

Socket Type

Socket E1 (LGA-4677-X)

Chipset Support

Intel® C741

System Memory

• DDR5 5600/4800MHz RDIMM (1DPC)
• Total 16 memory slots; 8 slots per CPU (1DPC)
• Supports up to 4TB (3DS RDIMM)

Front Panel

System power on/off, System reset

LEDs

Power status, Drive activity, LAN activity

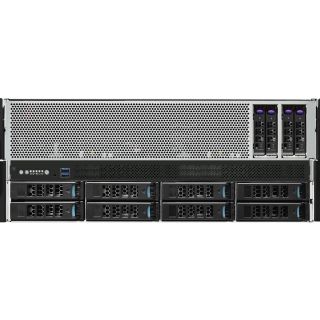

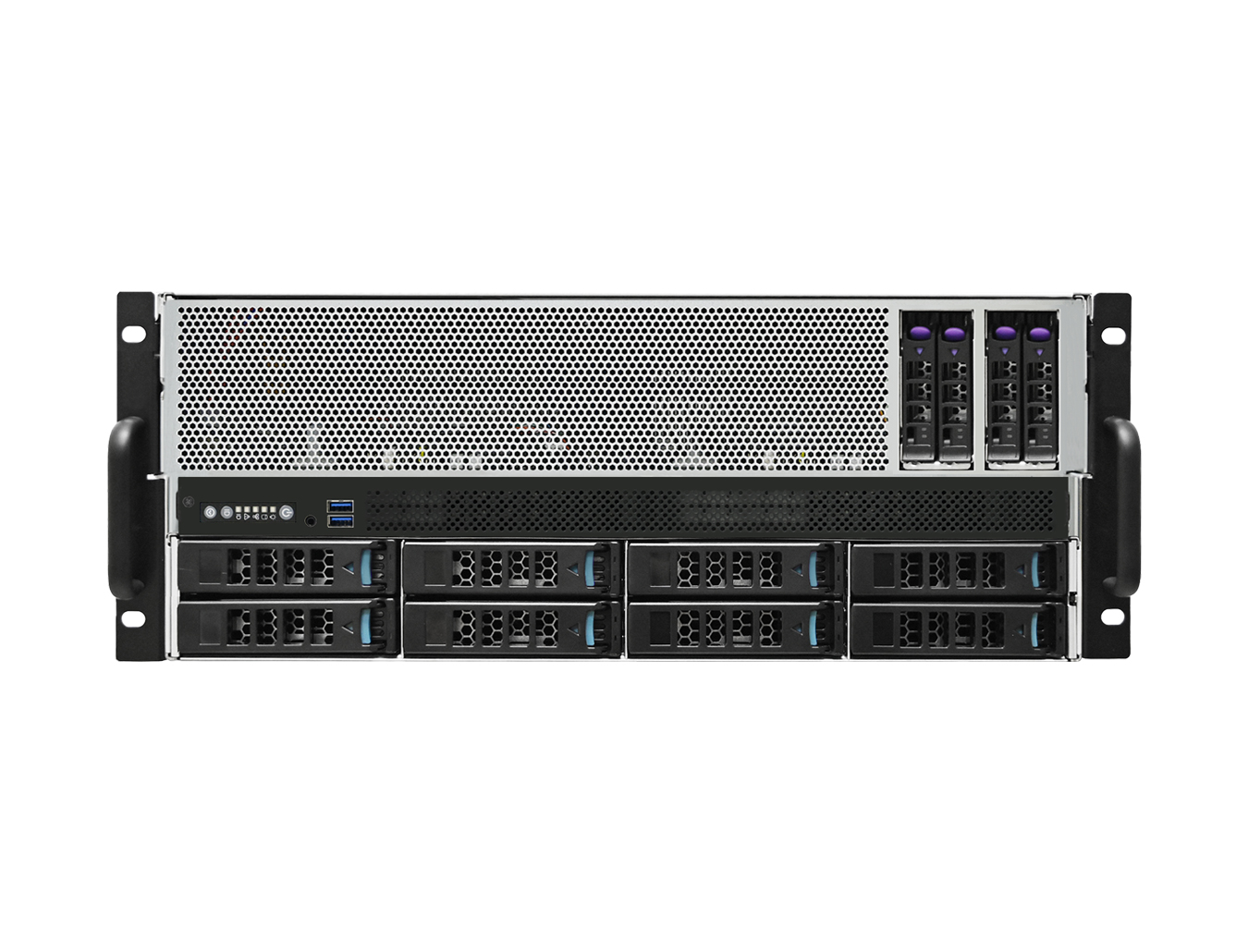

Drive Bays

External

• 3.5" hot swap x 8 (SAS/SATA)
• 2.5" hot swap x 4 (NVMe/SAS/SATA)

Internal

2 x M.2/M-Key/2280 (PCIe Gen4)

Backplane

• 1 x 8-port 12G SAS
• 2 x 2-port PCIe Gen5 NVMe/SAS/SATA Tri-mode (optional)

Expansion Slots

PCIe 5.0

• 5 x PCIe x16 slots
• 1 x PCIe x8 slot

PCIe 4.0

System BIOS

BIOS Type

AMI UEFI BIOS

BIOS Features

• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug

On-board Devices

SATA

Emmitsburg PCH on-chip solution
• 1 x Slimline connector (up to 8 SATA ports)

IPMI

Aspeed AST2600 Advanced PCIe Graphics &
Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN,
Serial over LAN
• HTML5
• Redfish

Network Controllers

Realtek RTL8211FS 1GbE for BMC
dedicated management port
• Broadcom BCM5720 dual-port 1GbE
(NCSI for share NIC)

Graphics

• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920x1200 @60Hz 32bpp

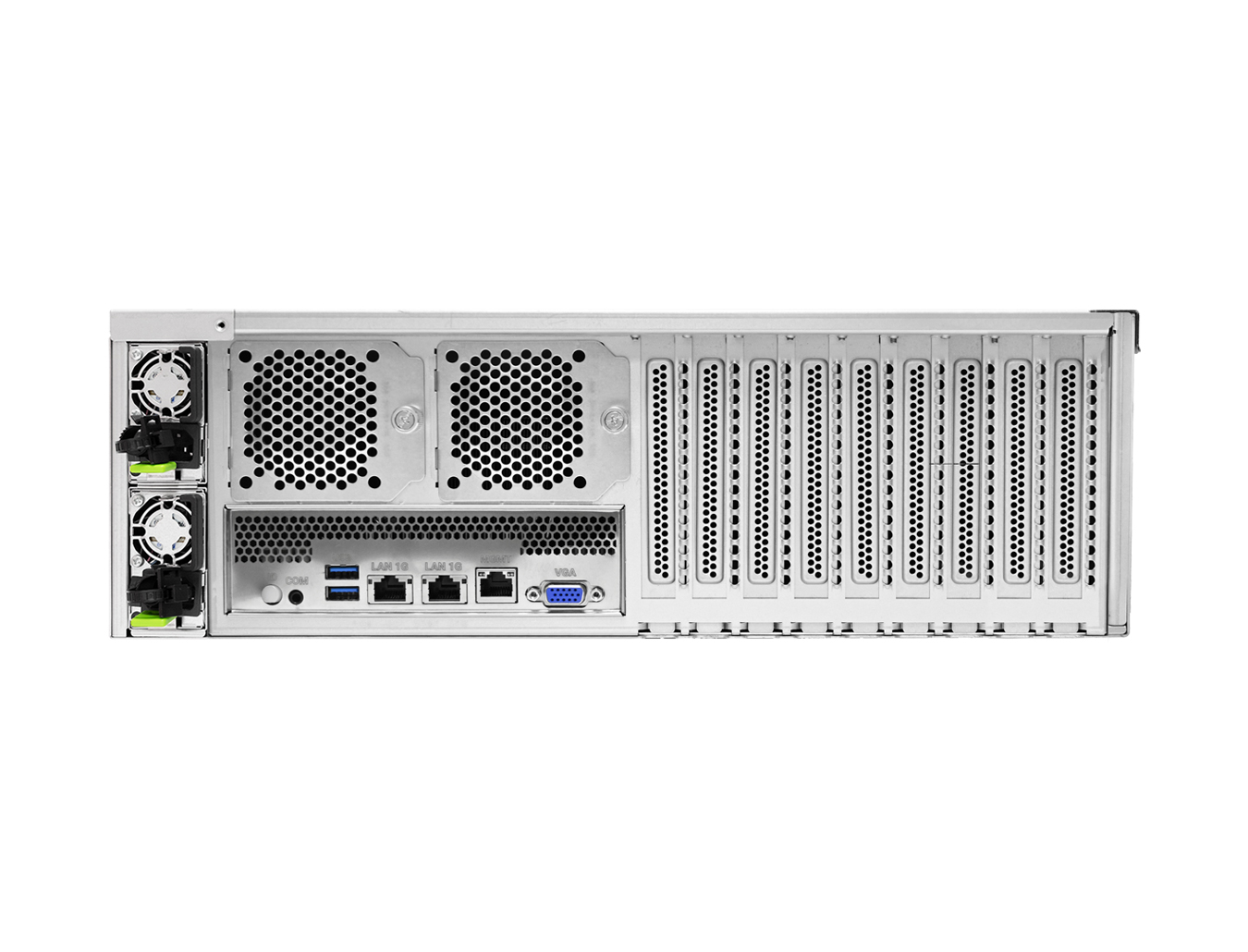

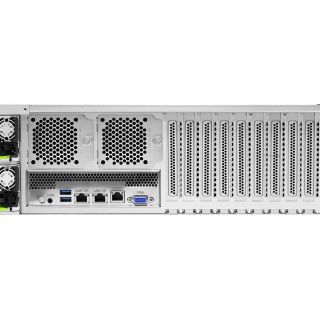

Rear I/O

LAN

• 1 x RJ45 GbE connector for BMC dedicated management port
• 2 x RJ45 1GbE connectors

USB

4x USB3.2 Gen1 Type-A

Video Output

1 x DB-15 VGA connector

Serial Port

Power Supply

2000W 1+1 redundant power supply 80+ Platinum
(3200W optional)

System Cooling

3 x 120x38mm + 4 x 80x56mm easy swap fans

System Management

• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH support
• HTML5
• Redfish

Environmental Specifications

• Storage temperature: -10°C(14°F) ~ 60°C(140°F)
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

50.7

Packaging Dimensions (W x D x H)

660 x 830 x 280

inches

26 x 32.7 x 11

Mounting (Standard)

28” tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XP1-C403VA01	4 GPU card server,8x 3.5"/2.5" SAS/SATA + 4x 2.5" SAS/SATA/NVMe Gen5 hot-swap (Passive BP),2000W 1+1 Titanium redundant power supply,3x 12038 easy-swap fan, 2x 8056 easy-swap fan,Vega motherboard,5x PCIe x16 FHFL Gen5, 1x PCIe x8 FHFL Gen5 ,1x PCIe 16 Gen5 CEM,2x active CPU heatsink
