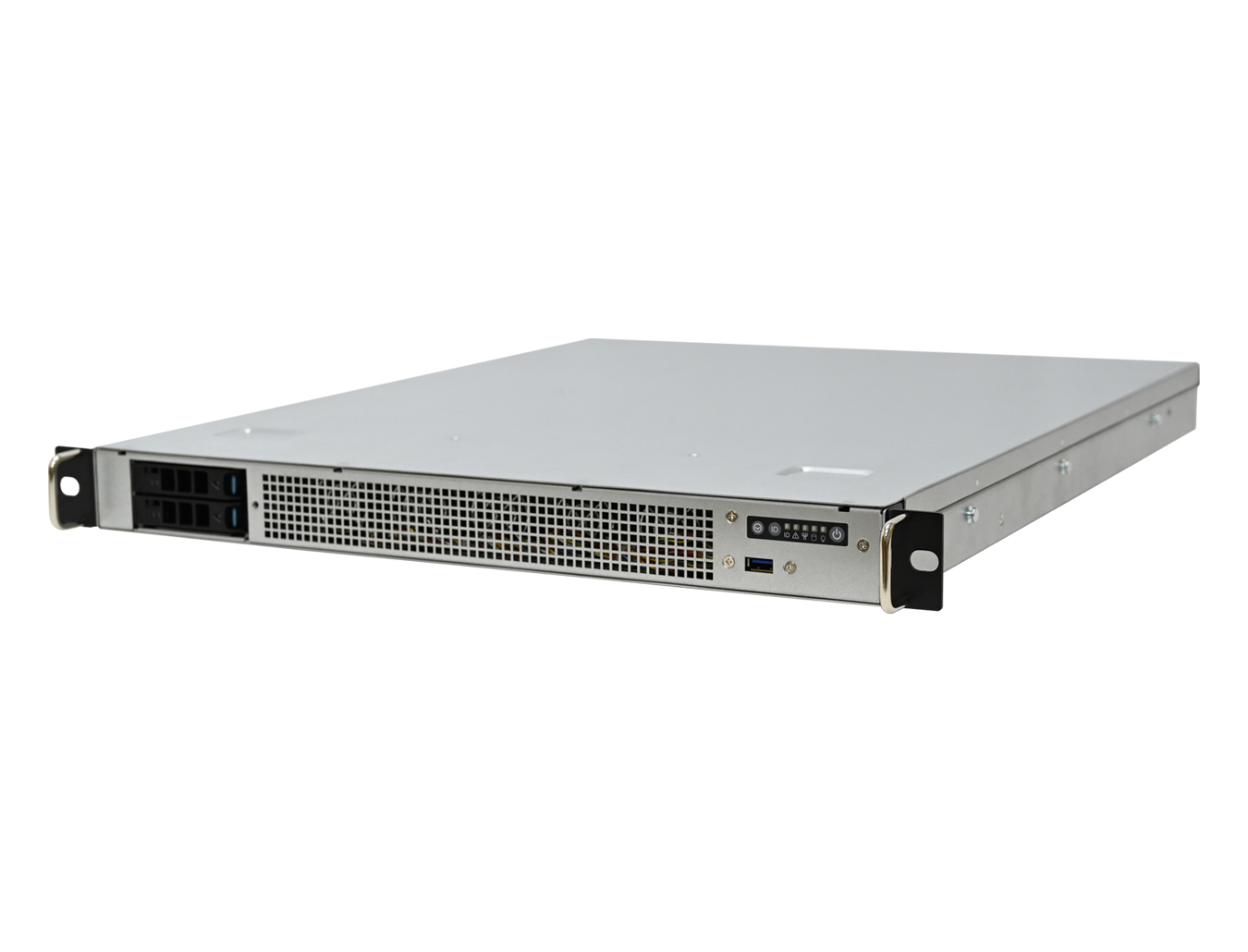

CB122-CP
CB122-CP, 1U edge server, equipped with Capella motherboard, supports AMD EPYC™ 9004/9005. Featuring 8 x high-speed DDR5 RDIMM (6400MT/s), 4 x tri-mode 2.5" hot-swappable drives. Supporting 1 x PCIe Gen5 X16 FHHL, 1 x PCIe Gen5 X16 OCP 3.0, and 1 x PCIe Gen5 X16 double slot width GPU.
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 550 x 43.5
inches
17.2 x 21.7 x 1.8

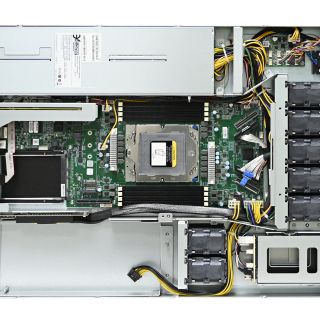

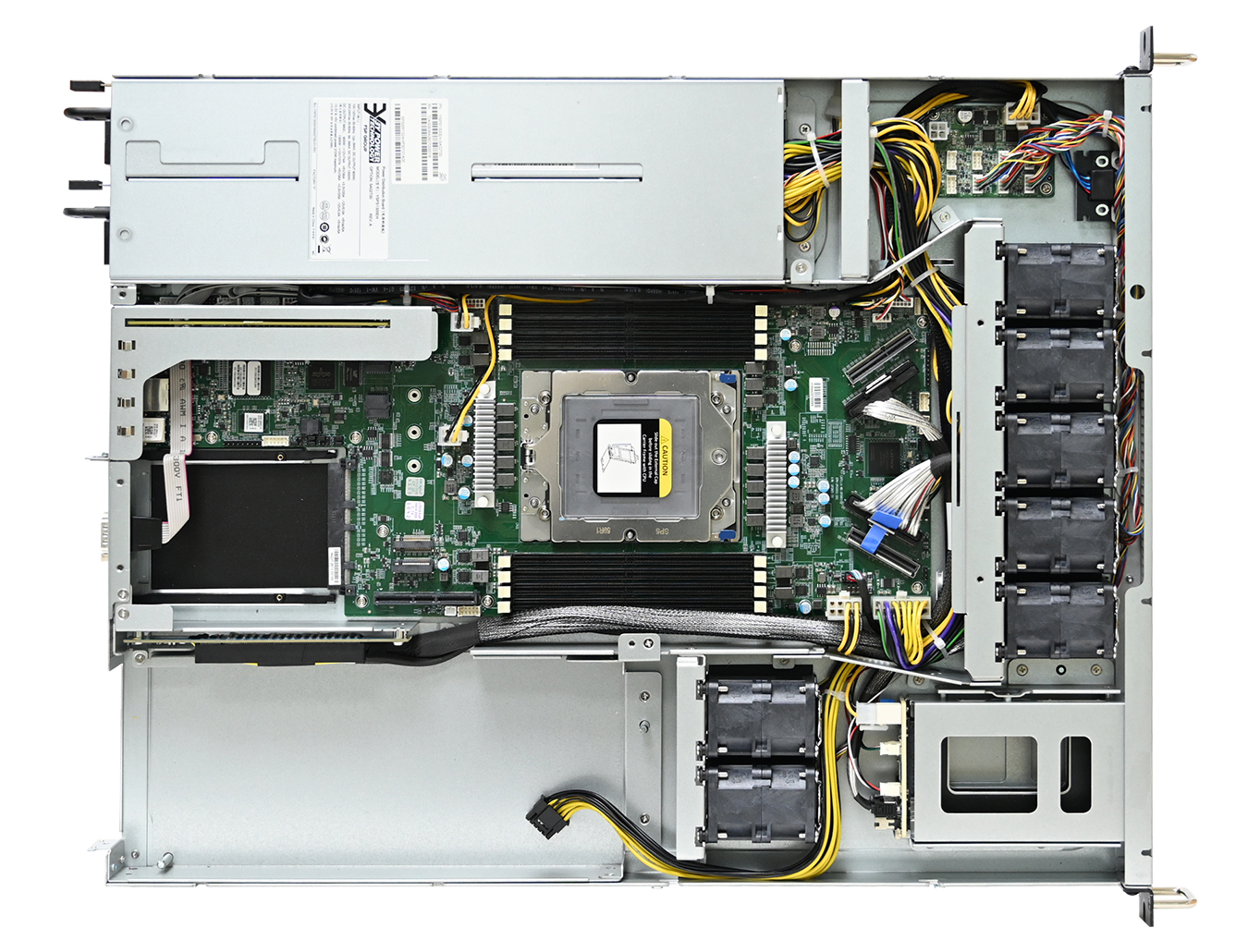

Motherboard
AIC Server Board Capella
Processor
Processor Support
AMD EPYC™ 9004/9005
*Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.
*Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.
CPU TDP
Up to 280W/400W
CPU Interconnection
Socket Type
SP5
Chipset Support
System Memory
8 x DDR5 RDIMM 6400MT/s

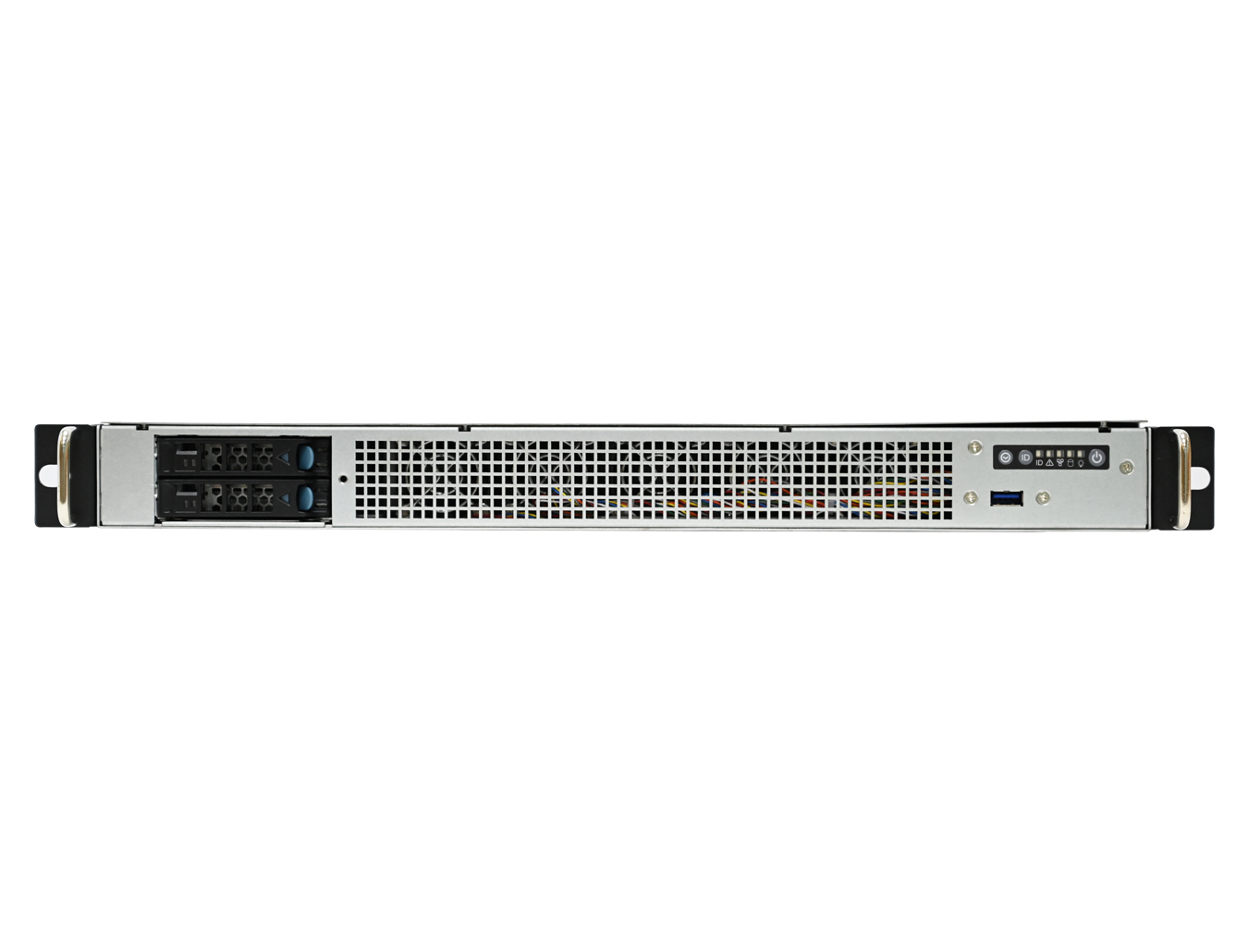

Front Panel
• System power on/off
• System ID
• System reset
• System ID
• System reset
LEDs
Power status, System alert, System ID, Drive activity, LAN activity
Drive Bays
External
2.5" hot swap x 4 (SATA/SAS)
Internal
Backplane
2 x 2-bay 2.5" Tri-mode
Expansion Slots
PCIe 5.0
• 1 x PCIe Gen5 X16 FHHL
• 1 x PCIe Gen5 X16 OCP 3.0
• 1 x PCIe Gen5 X16 double slot width GPU (optional 2 x single slot PCIe cards)
• 1 x PCIe Gen5 X16 OCP 3.0
• 1 x PCIe Gen5 X16 double slot width GPU (optional 2 x single slot PCIe cards)
PCIe 4.0
System BIOS
BIOS Type
AMI UEFI BIOS
BIOS Features
• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe hotplug
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe hotplug
On-board Devices
SATA
IPMI
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH support
• HTML5
• Redfish
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH support
• HTML5
• Redfish
Network Controllers
• Realtek RTL8211FS GbE Ethernet for BMC
dedicated management port
• Broadcom BCM5720 GbE for BMC shared NIC and data transfer by onboard header (NCSI shared NIC - reserved for OCP & BCM5720 by jumper setting)
dedicated management port
• Broadcom BCM5720 GbE for BMC shared NIC and data transfer by onboard header (NCSI shared NIC - reserved for OCP & BCM5720 by jumper setting)
Graphics
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

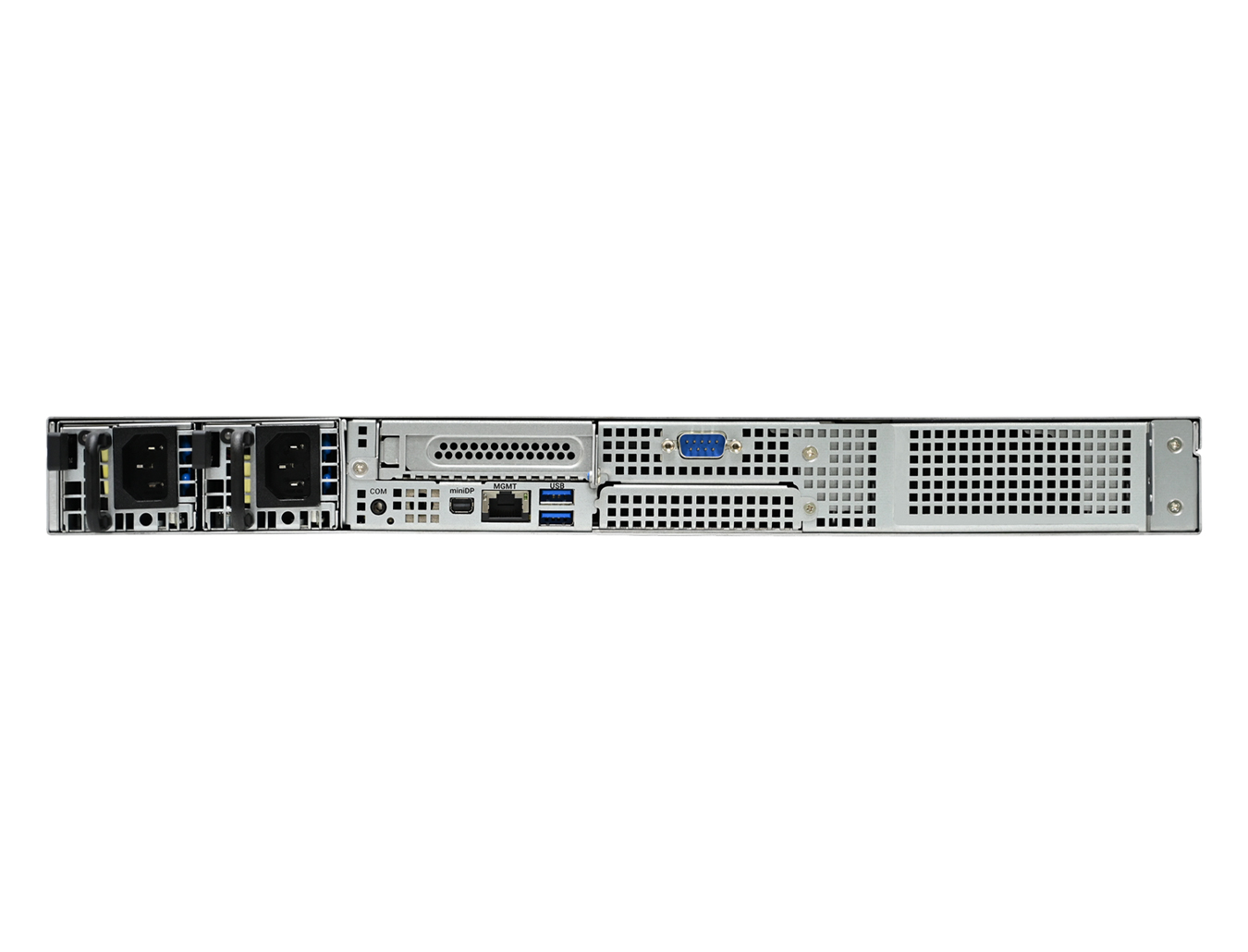

Rear I/O
LAN
1 x RJ45 GbE connector for BMC dedicated management port
USB
2 x USB 3.2 Gen 1 Type A
Video Output
1 x mini display port
Serial Port
1 x COM connector (Audio Jack)
ID
Power Supply
750W 1+1 redundant power supply 80+ (optional 1300W)
System Cooling
6 x 40x56mm easy swap system cooling fans
System Management
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH support
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH support
Environmental Specifications
• Storage temperature: -10°C(14°F) ~ 60°C(140°F)
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
22
lbs
48.5
Packaging Dimensions (W x D x H)
mm
590 x 850 x 343
inches
23.2 x 33.5 x 13.5
Mounting
Standard
20" fixed rail
* All specifications are subject to change without notice.
| SKU Information | Description |
|---|---|
|
XPC122CP6801 |
1U, 4x 2.5” NVMe drive bay, AMD EPYC™ 9004/9005, 1x PCIe Gen5 X16 PCIe slot expansions (FHHL), 1x Gen5 x16 PCIe slot expansions(HHHL),1x Gen5 x16 OCP 3.0, 5x 4056 fans for System + 4x 4056 fans for GPU(2x 4056 fans are additional on the rear of system) |
