ES1-424-E0

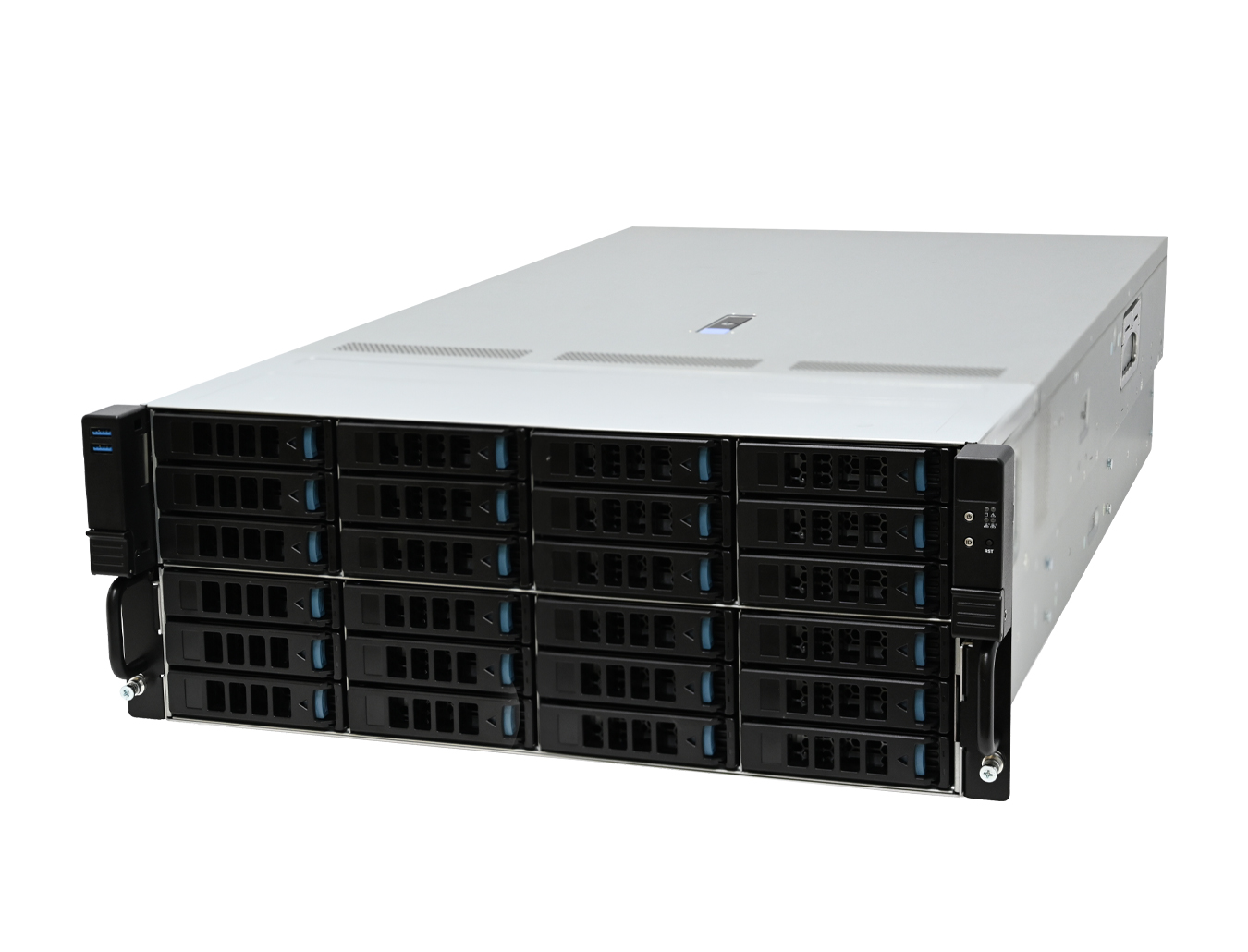

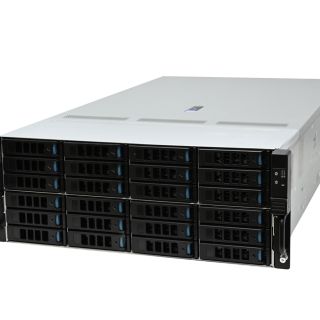

AIC new generation ES1-424-E0 is a standardized 4U storage chassis designed to SSI-EEB/EATX form factor standards and optimized for serviceability.
Supporting 24 3.5"/2.5" drives, it serves as a high-density foundation for backup, media processing, and software-defined storage. Hot-swapable modules and optimized airflow ensure easy maintenance and reliable operation.
Supporting 24 3.5"/2.5" drives, it serves as a high-density foundation for backup, media processing, and software-defined storage. Hot-swapable modules and optimized airflow ensure easy maintenance and reliable operation.
主要な特徴

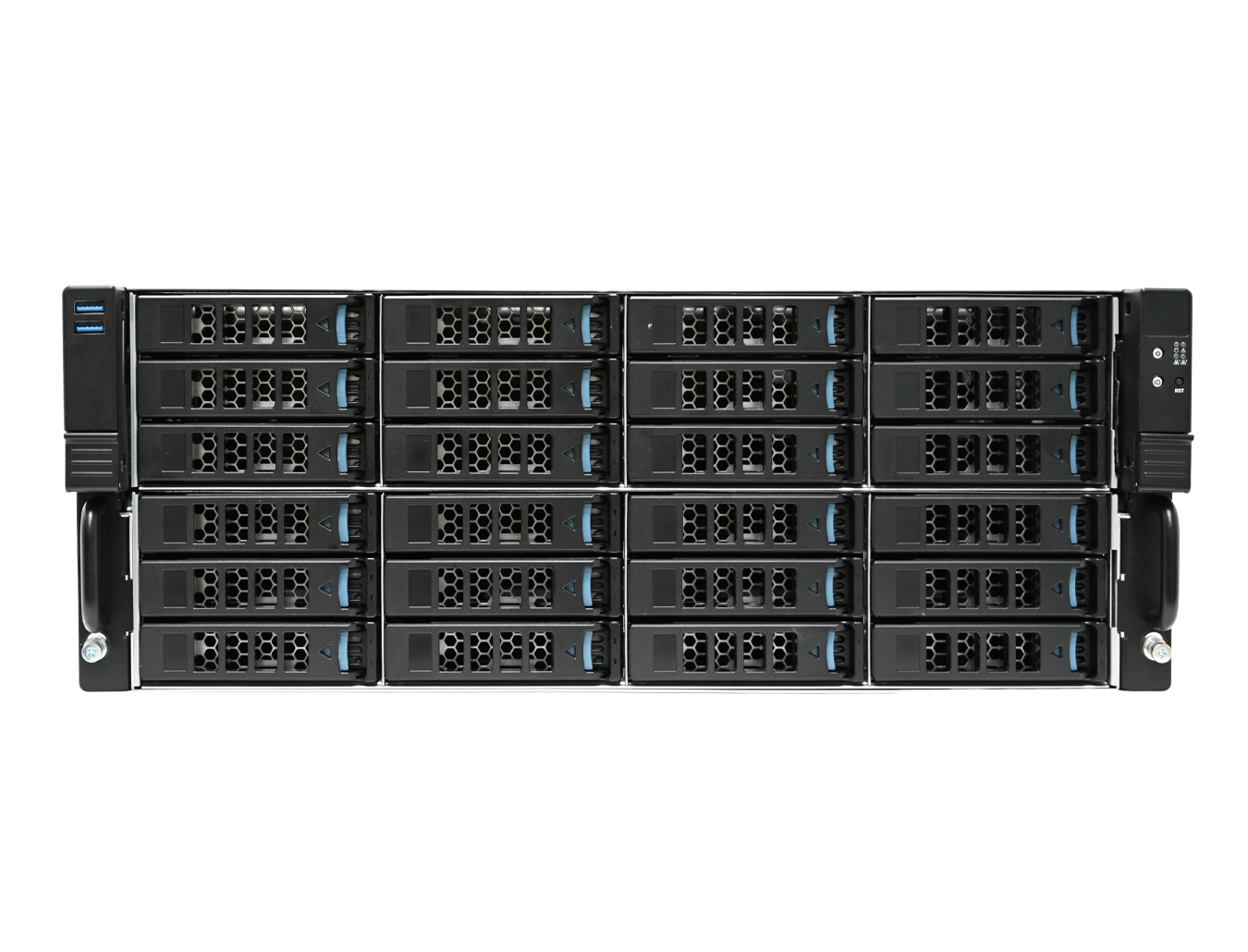

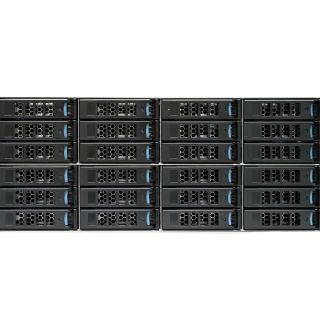

External 24 x 3.5" hot -swap tray / External 2 x 2.5" hot -swap tray (up to 4 x 2.5")
特長External 24 x 3.5" hot -swap tray / External 2 x 2.5" hot -swap tray (up to 4 x 2.5")
Support SSI-EEB/EATX form factors and modular architecture.
特長Support SSI-EEB/EATX form factors and modular architecture.
High-performance 8038 fan modules deliver consistent cooling.
特長High-performance 8038 fan modules deliver consistent cooling.
Tool-less, hot-swappable drive trays, top cover, fans, backplanes.
特長Tool-less, hot-swappable drive trays, top cover, fans, backplanes.
仕様
Main
Sub
Details
寸法
mm
435 x 720 x 174.5
Dimensions
inches
17.1 x 28.35 x 6.9
業界標準
EIA-RS310D
材料
SGCC
色
Front Panel: Black
冷却
Standard: 6 x 80x38mm PWM hot swap fans
Option: up to 8 x 80x56mm for heavy workloads (fan board needed)
Option: up to 8 x 80x56mm for heavy workloads (fan board needed)
電源
• 1300W/1600W 1+1 redundant CRPS PSU
• 2000W redundant CRPS power supply modules
• 2000W redundant CRPS power supply modules
拡張スロット
7 full hight slots
フロントパネル
System power on/off, System reset, System ID and
2 x USB 3.0 ports
2 x USB 3.0 ports
LEDインジケーター
Power, ID, System alert, HDD, LAN
システムボード
E-ATX + MB 12.3"(W) x 14"(D)
ドライブベイ
外部
• 24 x 3.5” hot swap
• 2 x SAS3/SATA or 2 x Tri-mode PCIe Gen5 (Option)
• 2 x E1.S PCIe Gen6 (Option)
• 2 x SAS3/SATA or 2 x Tri-mode PCIe Gen5 (Option)
• 2 x E1.S PCIe Gen6 (Option)
内部
Up to 2 x 2.5”(optional)
バックプレーン
Front :
• 1 x 24-port SAS3/SATA EOB backplane

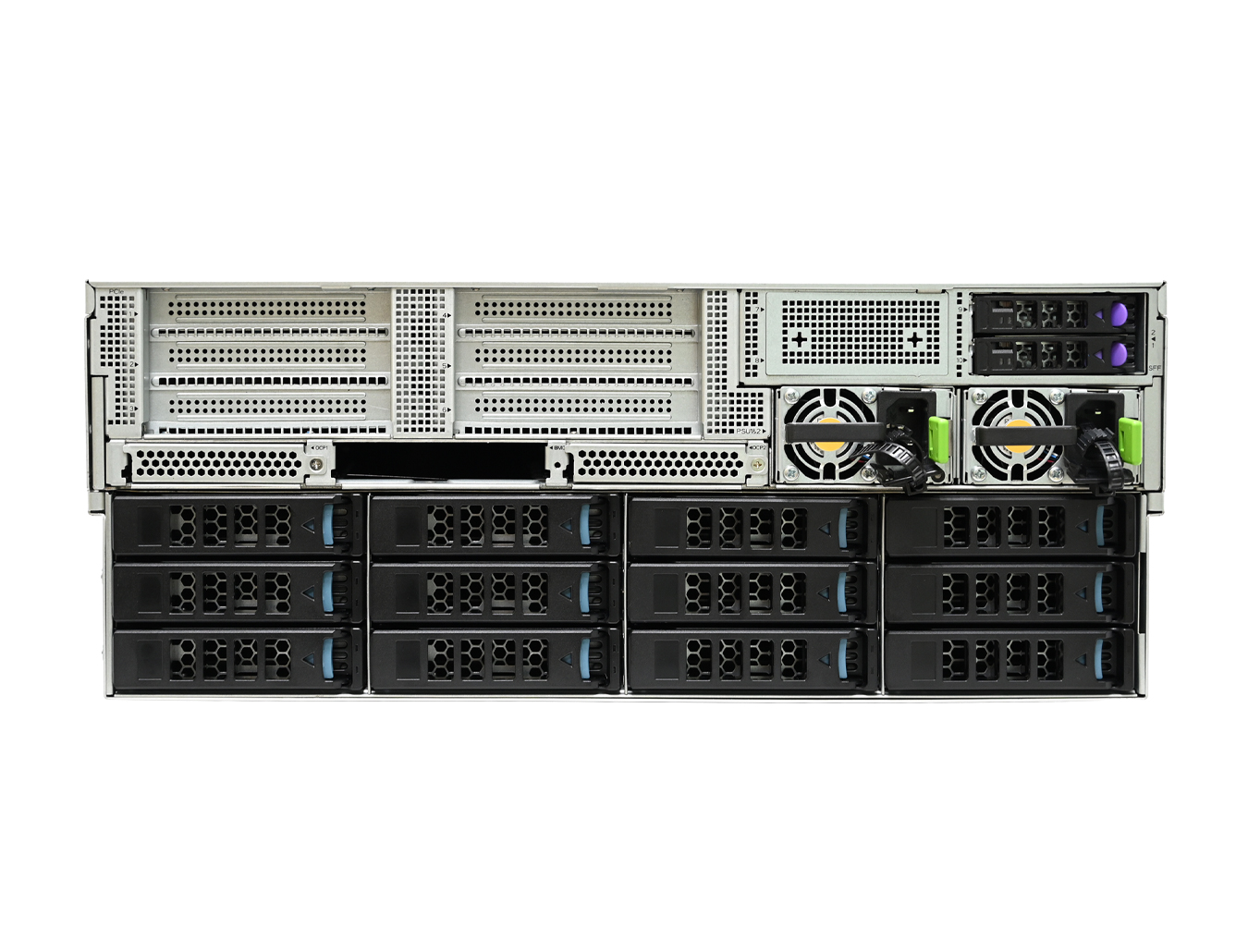

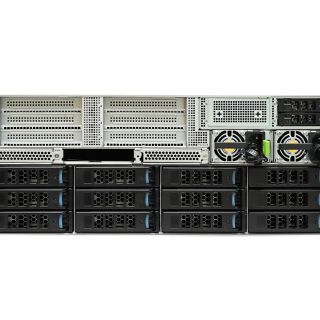

Rear :
• Up to 2 x 2-port SATA
• Up to 2 x 2-port SAS3/SATA/PCIe Gen5 NVMe Tri-mode
• Up to 2 x 2-port E1.S PCIe Gen6 NVMe
• 1 x 24-port SAS3/SATA EOB backplane
Rear :
• Up to 2 x 2-port SATA
• Up to 2 x 2-port SAS3/SATA/PCIe Gen5 NVMe Tri-mode
• Up to 2 x 2-port E1.S PCIe Gen6 NVMe
保管温度
0ºC(32ºF) ~ 50ºC(122ºF)
湿度
5%~95% non-condensing
総重量 (W/PSU＆レール)
kgs:
40
総重量（W/PSU＆レール）
ポンド:
88.2
パッケージ寸法（W x D x H）
mm
600 x 960 x 400
パッケージ寸法 (W x D x H)
インチ
23.6 x 37.8 x 15.7
立方フィート
9.25
コンテナ積載数量
20'
110
コンテナ積載量
40'
220
コンテナ積載数量
40' H
265
マウンティング
Tool-less slide rail
* 仕様変更の際は、予告なく変更する場合があります。
| SKU Information | Description |
| XE1-424E0-01 | 24x 3.5” hot-swap bays, tool-less 3.5" and 2.5" HDD tray, front ear USB 3.0, 2x 2.5" hot-swap OS SATA, 3x (8038+8038) hot-swap FAN (17000RPM+18300RPM), 24 port + 12 port SAS/SATA EOB hot-swap backplane. Redundant power supply CRPS 1200W Platinum |
| XE1-424E0-02 | 24x 3.5” hot-swap bays, tool-less 3.5" and 2.5" HDD tray, front ear USB 3.0, 2x 2.5" hot-swap OS SATA, 3x (8038+8038) hot-swap FAN (17000RPM+18300RPM), 24 port + 12 port SAS/SATA EOB hot-swap backplane. Redundant power supply CRPS 1300W Titanium |
