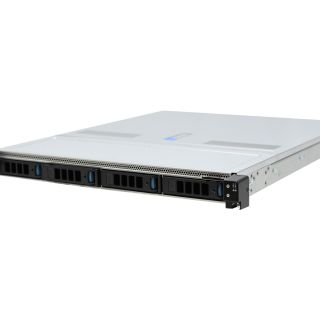

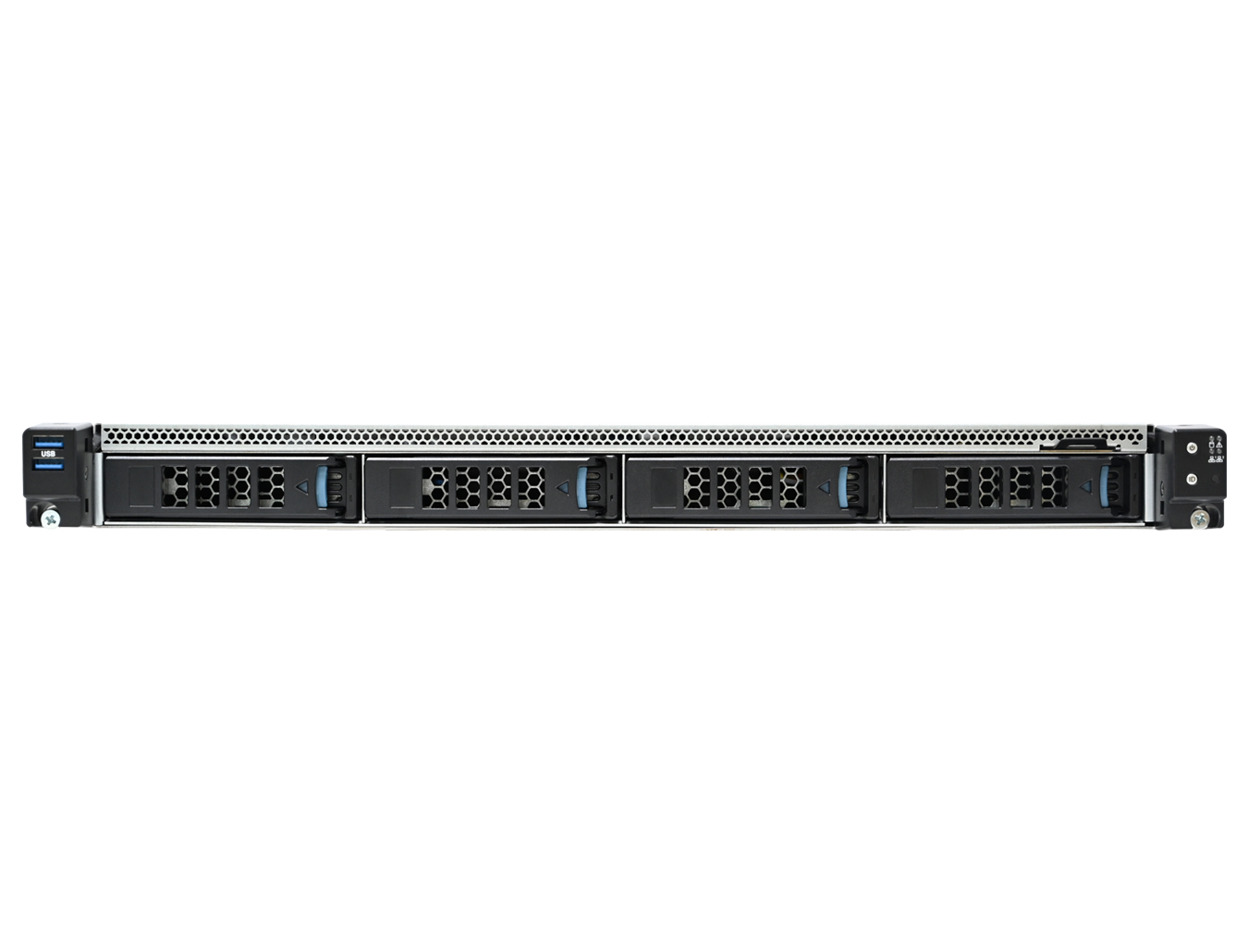

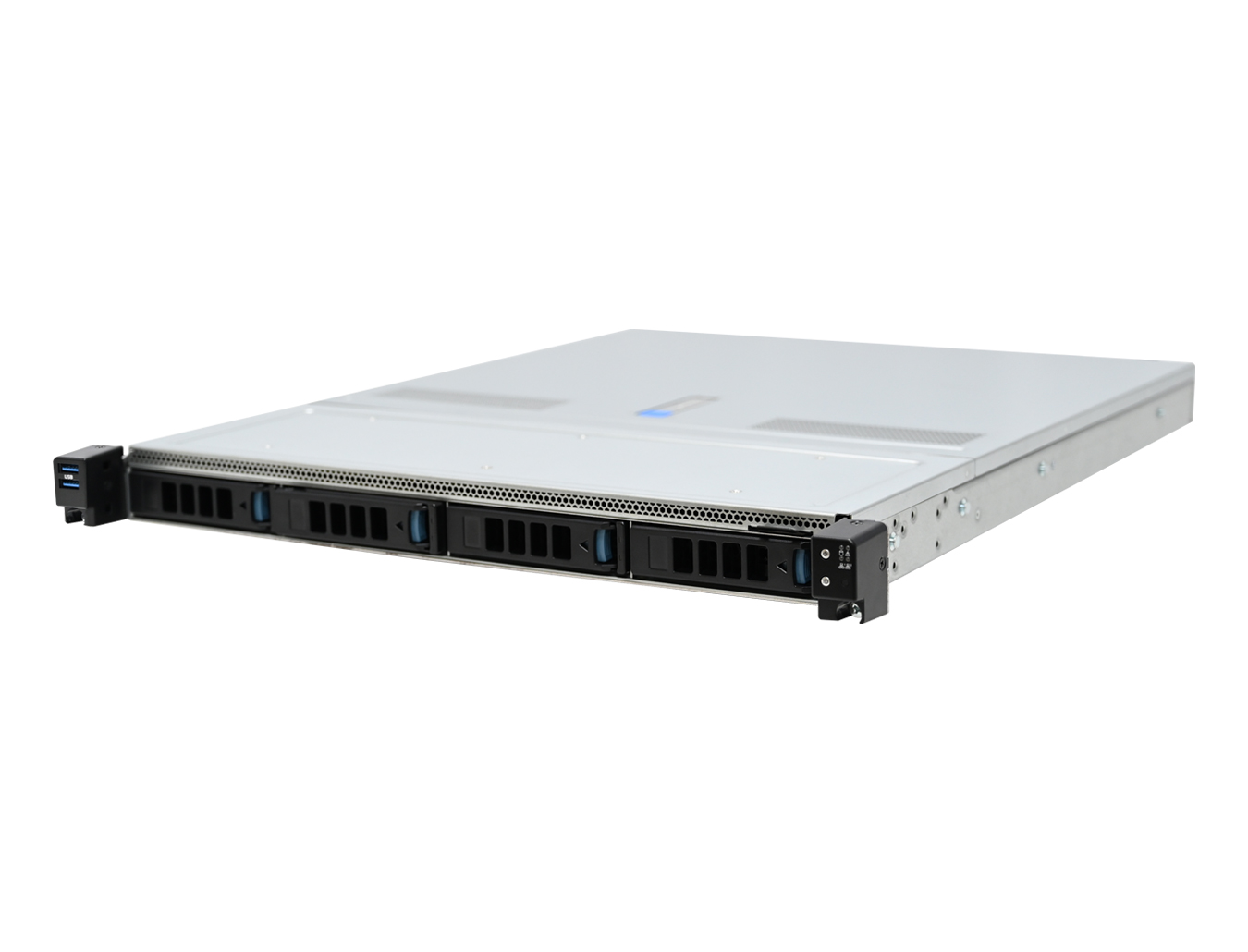

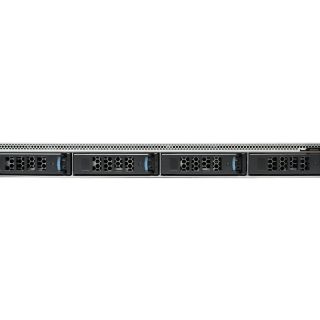

ES1-104-S0
AIC new generation 1U short storage chassis with mother board size up to CEB/ATX, external 4 x 3.5" hot swap and internal 2 x 2.5" (9mm) drive bays supporting. It features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, easy-swap PWM fans, and overall short depth, offering a cost-effective solution ideally suited for a broad range of applications, and especially space-concerned users. (Power supply is included. Motherboard is not included.)
主要な特徴
1U 22.8" depth server storage
特長1U 22.8" depth server storage
Support CEB/ATX M/B
特長Support CEB/ATX M/B
External 4 x 3.5"/2.5" hot-swap tray, internal 2 x 2.5"
特長External 4 x 3.5"/2.5" hot-swap tray, internal 2 x 2.5"
800W redundant PSU or 500W FLEX single power
特長800W redundant PSU or 500W FLEX single power
仕様
Main
Sub
Details
寸法
mm
438 x 580 x 43.5
Dimensions
inches
17.2 x 22.8 x 1.7
業界標準
EIA-RS310D
材料
SGCC
色
Front Panel: Black
冷却
Standard: 4 x 40x28mm easy swap fans
Option: 5 x 40x56mm (maximum)
Option: 5 x 40x56mm (maximum)
電源
• 800W 1U 1+1 redundant PSU 80+ Titanium
• 500W 1U FLEX single PSU 80+ Gold
• 500W 1U FLEX single PSU 80+ Gold
拡張スロット
1 x FHHL
フロントパネル
System power on/off, System reset, System ID and
2 x USB 3.0 ports
2 x USB 3.0 ports
LEDインジケーター
Power, ID, LAN 1, LAN 2, Drive and Alert
システムボード
Up to 12”(W) x 10.5”(D) CEB/ATX MB
ドライブベイ
外部
4 x 3.5” hot swap
内部
2 x 2.5”
バックプレーン
• 1 x 4-bay 3.5" 12Gb SAS & 6Gb SATA
• 1 x 4-bay 3.5" Tri-mode NVMe PCIe Gen5, 12Gb SAS & 6Gb SATA
• 1 x 4-bay 3.5" Tri-mode NVMe PCIe Gen5, 12Gb SAS & 6Gb SATA
保管温度
0ºC(32ºF) ~ 50ºC(122ºF)
湿度
5%~95% non-condensing
総重量 (W/PSU＆レール)
kgs:
16
総重量（W/PSU＆レール）
ポンド:
35.3
パッケージ寸法（W x D x H）
mm
580 x 820 x 225
パッケージ寸法 (W x D x H)
インチ
22.8 x 32.2 x8.9
立方フィート
3.78
コンテナ積載数量
20'
210
コンテナ積載量
40'
430
コンテナ積載数量
40' H
520
マウンティング
27” tool-less slide rail
* 仕様変更の際は、予告なく変更する場合があります。
| SKU Information | Description |
| XE1-104S0-01 | 1U 4x 3.5" hot-swap bays, tool-less 3.5" and 2.5" SDD tray, 800W Titanium redundant power supply, front ear 2x USB 3.0, 2x 9mm 2.5" internal, 4x 4028 easy-swap FAN, rail, 1U 4x 3.5"/2.5" 12G SAS/SATA hot-swap (Passive BP), w/ RC bracket, w/o bezel |
| XE1-104S0-02 | 1U 4x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1U Flex 500W single Gold power supply, front ear 2x USB 3.0, 2x 9mm 2.5" internal, 4x 4028 easy-swap FAN, rail, 1U 4x 3.5"/2.5" 12G SAS/SATA hot-swap (Passive BP), w/ RC bracket, w/o bezel |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| 1U riser card x16 | BRC-PE10065A | PCIE GEN5 x16 riser card |
| 1U 4 bay 3.5" tri-mode BP | BBP2FB10002A | 1U 3.5" 4 port tri-mode PCIe Gen 5 NVMe backplane (BP-FB1U08-TY) |
| 1U 4 bay 3.5" SAS/SATA BP | BBP2HD10023A | 1U 3.5" 4 port SAS/SATA backplane (BP-HD1S11-TY) |
