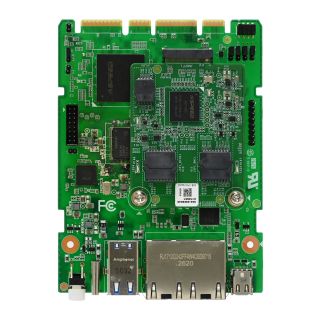

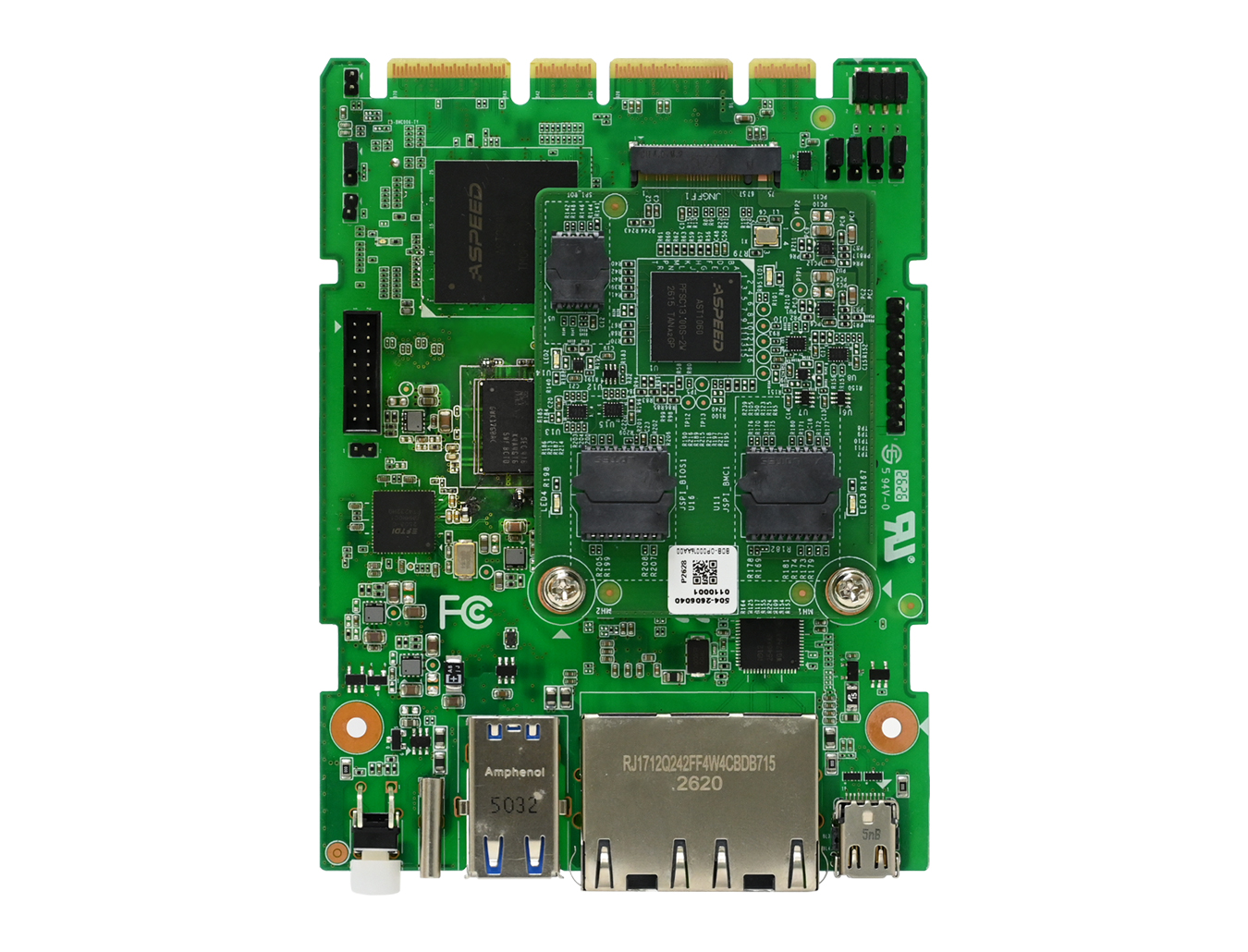

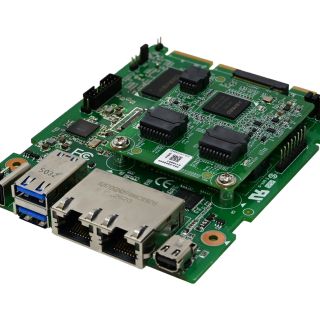

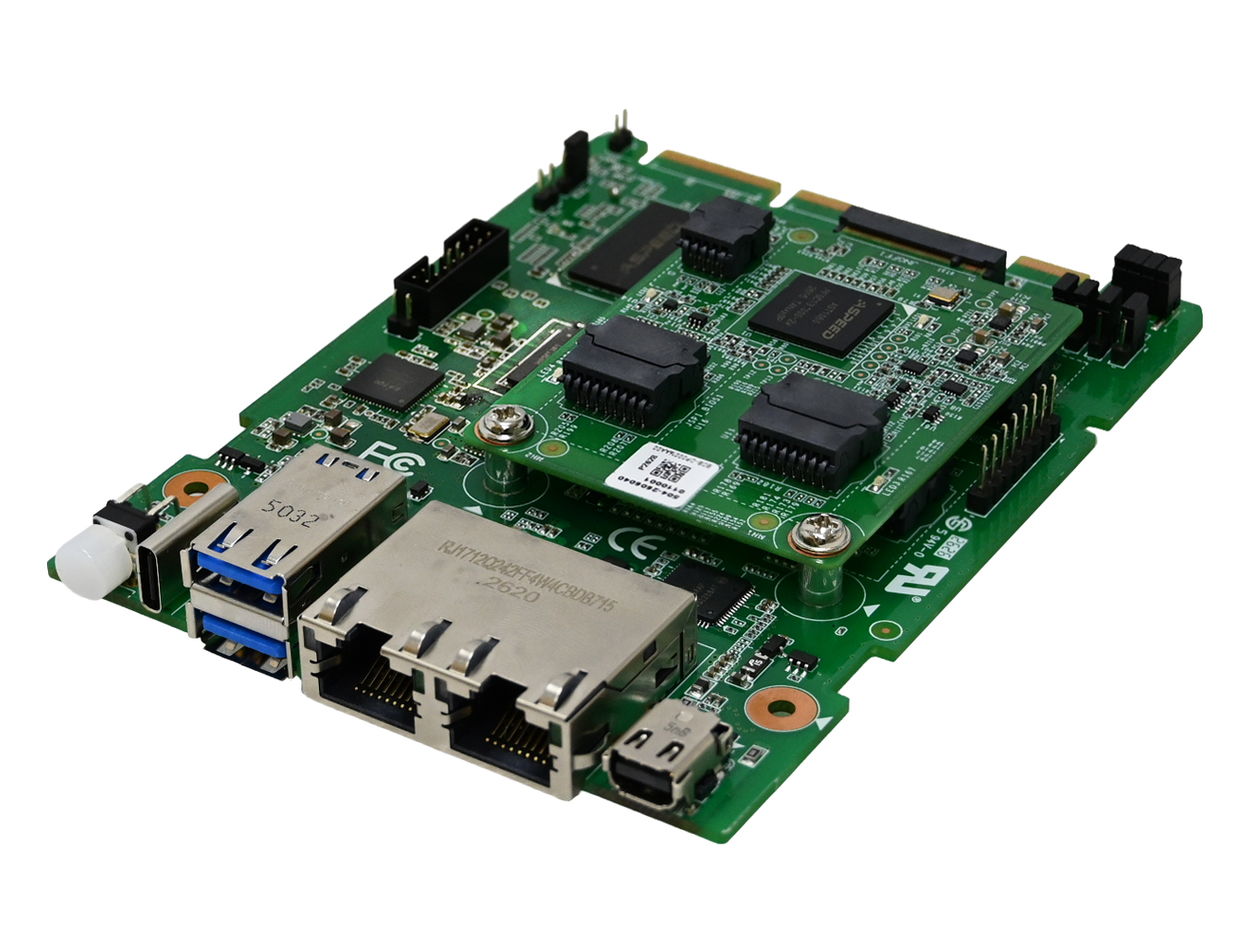

DC-SCM (Add-on Card)
DC-SCM 2.1 hardware management module based on the OCP design specification, embedded with Aspeed AST2700 and the RoT module by
AST1060/1080. Open BMC with Insyde firmware supporting IPMI 2.0 and Redfish, and well accompany with AIC Jupiter, M-DNO motherboard.
*Provided with the Jupiter motherboard
AST1060/1080. Open BMC with Insyde firmware supporting IPMI 2.0 and Redfish, and well accompany with AIC Jupiter, M-DNO motherboard.
*Provided with the Jupiter motherboard
主要な特徴
Follow DC-MHS DC SCM2.1
特長Follow DC-MHS DC SCM2.1
Aspeed AST2700 with OpenBMC Insyde firmware supporting IPMI 2.0 and Redfish API
特長Aspeed AST2700 with OpenBMC Insyde firmware supporting IPMI 2.0 and Redfish API
1 x RJ45 GbE dedicated server management port
特長1 x RJ45 GbE dedicated server management port
1 x RJ45 GbE LAN port
特長1 x RJ45 GbE LAN port
Dual USB3.2 Gen1 TypeA and 1 x mini-DP supported
特長Dual USB3.2 Gen1 TypeA and 1 x mini-DP supported
RoT module with AST1060/1080 supported (optional)
特長RoT module with AST1060/1080 supported (optional)
仕様
仕様
Main
Sub
Details
System
Dimensions
• mm : 120 x 90
• inches : 4.7 x 3.5
• inches : 4.7 x 3.5
On-board-Devices
BMC
Aspeed AST2700
Network-Controller
• 1 x Intel® I210 GbE Controller (NCSI w/BMC)
• 1 x RTL8211 GbE Controller for BMC Management
• 1 x RTL8211 GbE Controller for BMC Management
Graphics
1 x VGA pin header (1920x1200 @60Hz)
Additional Information
• 1 x BMC reset header
• 1 x CPLD JTAG programming header
• 1 x BMC enable/disable jumper
• 1 x RoT module with Aspeed AST1060/1080 (optional)
• 1 x CPLD JTAG programming header
• 1 x BMC enable/disable jumper
• 1 x RoT module with Aspeed AST1060/1080 (optional)

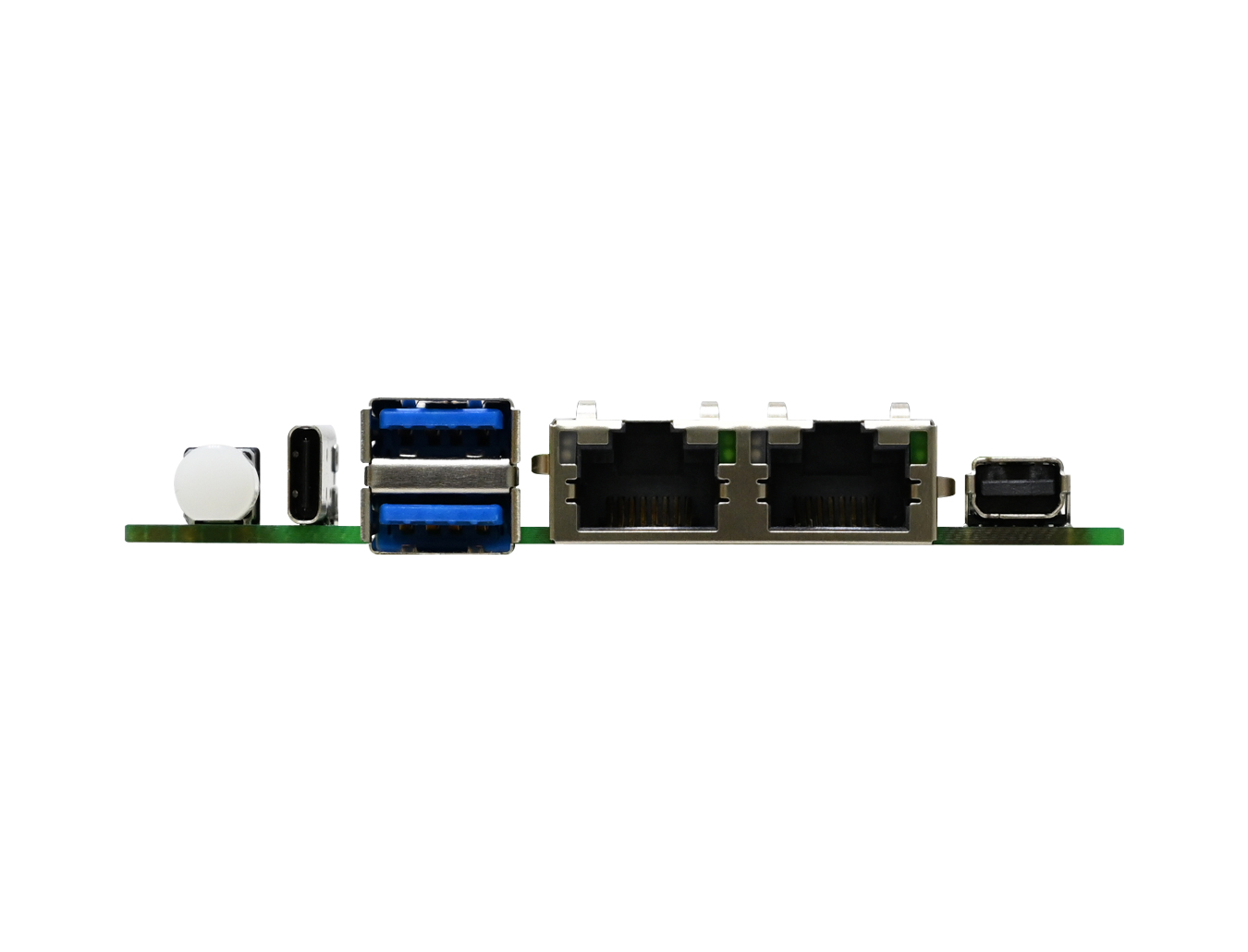

Input-Output
LAN
• 1 x RJ45 GbE LAN (NCSI w/BMC)
• 1 x RJ45 GbE for BMC management port
• 1 x RJ45 GbE for BMC management port
USB
• 2 x USB3.2 Gen1 double-stack Type-A
• 1 x USB2.0 Type-C for console
• 1 x USB2.0 Type-C for console
Display
1 x mini-DP port (1920x1200 @60Hz)
Others
1 x UID LED button
* 仕様変更の際は、予告なく変更する場合があります。
