SB202-VA

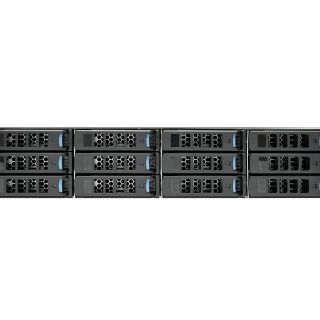

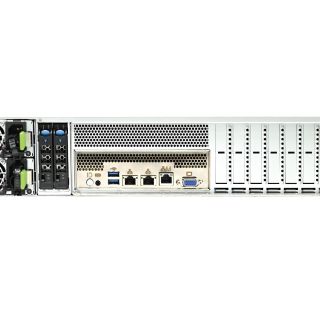

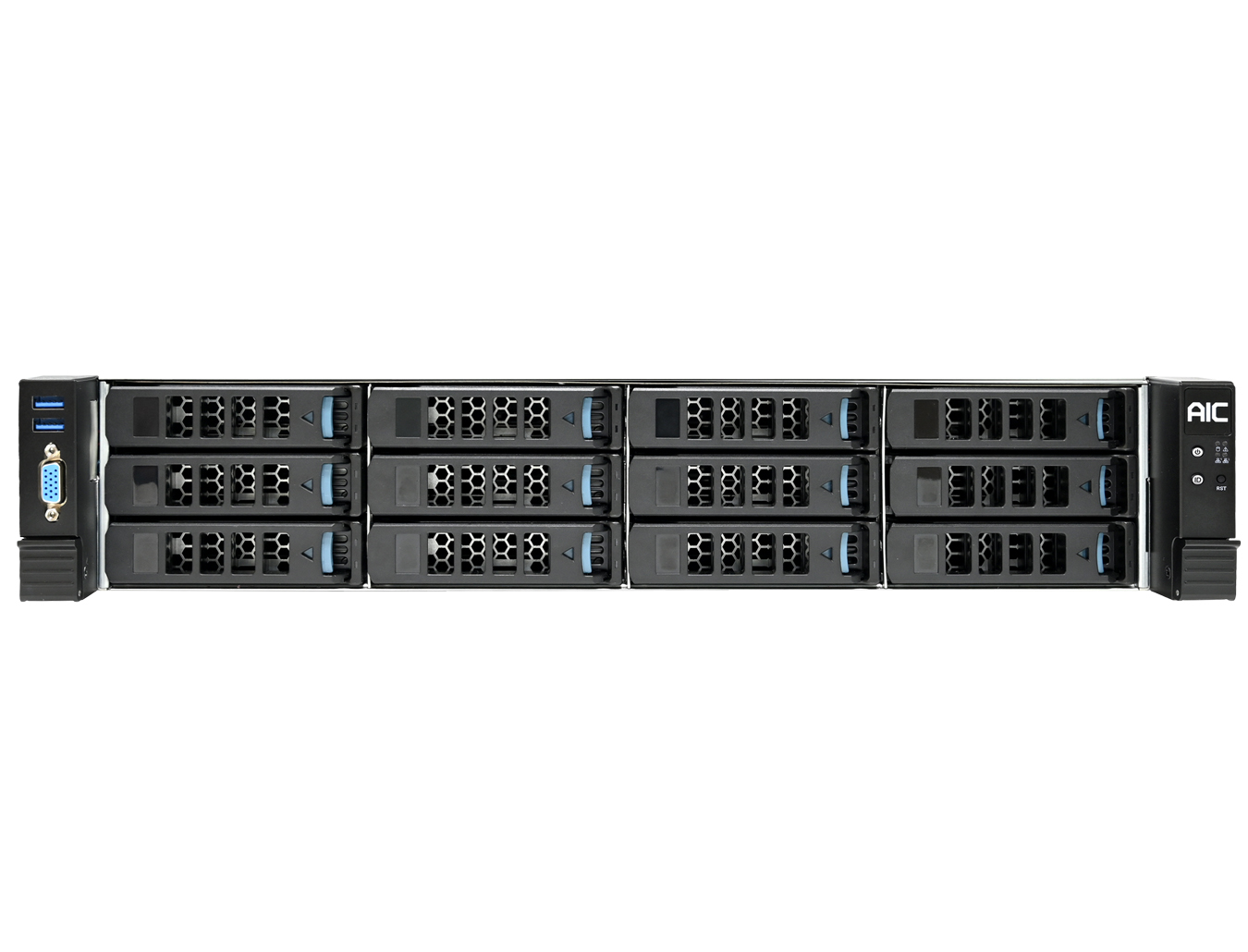

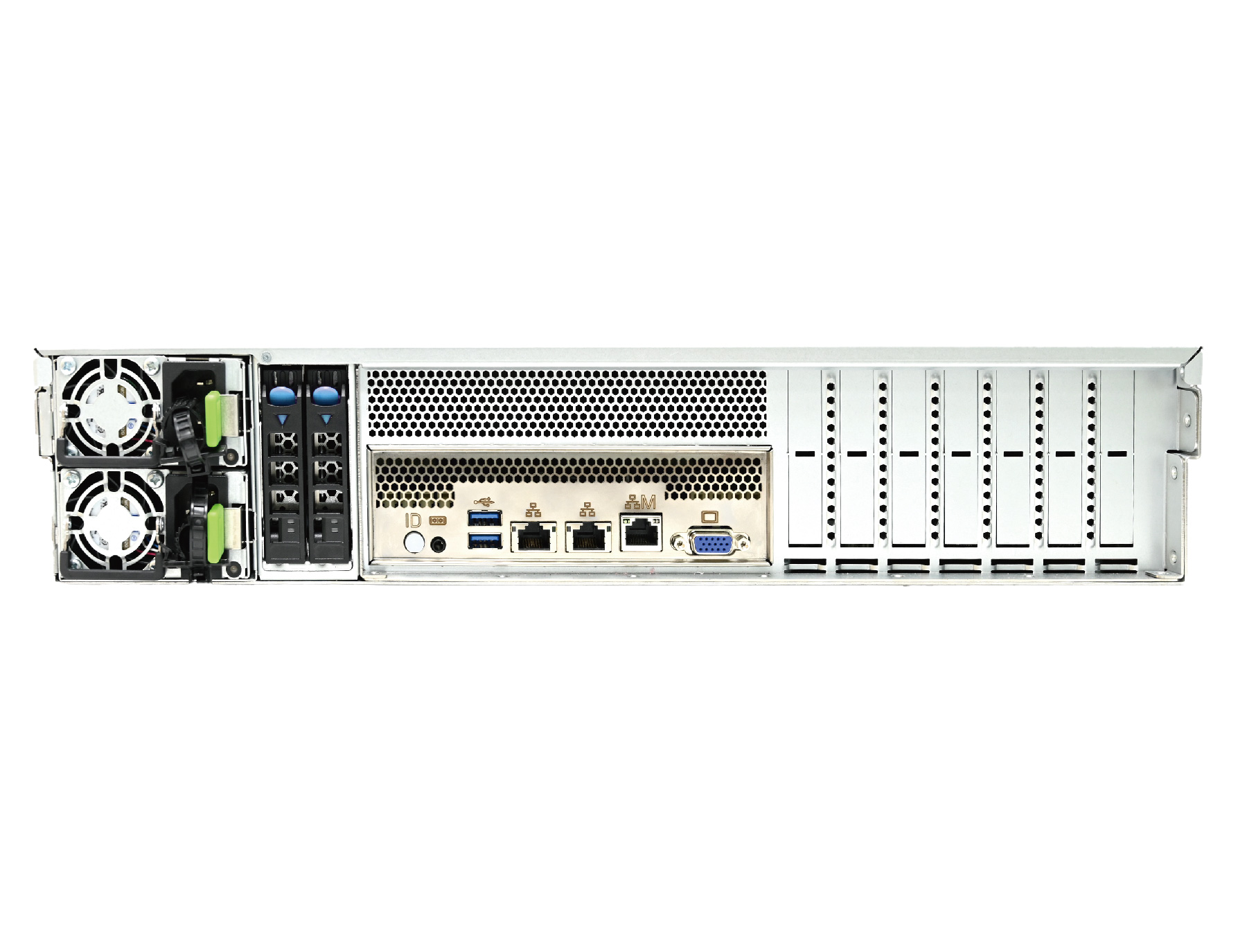

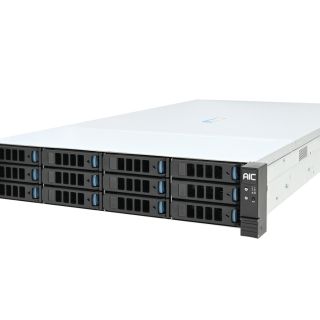

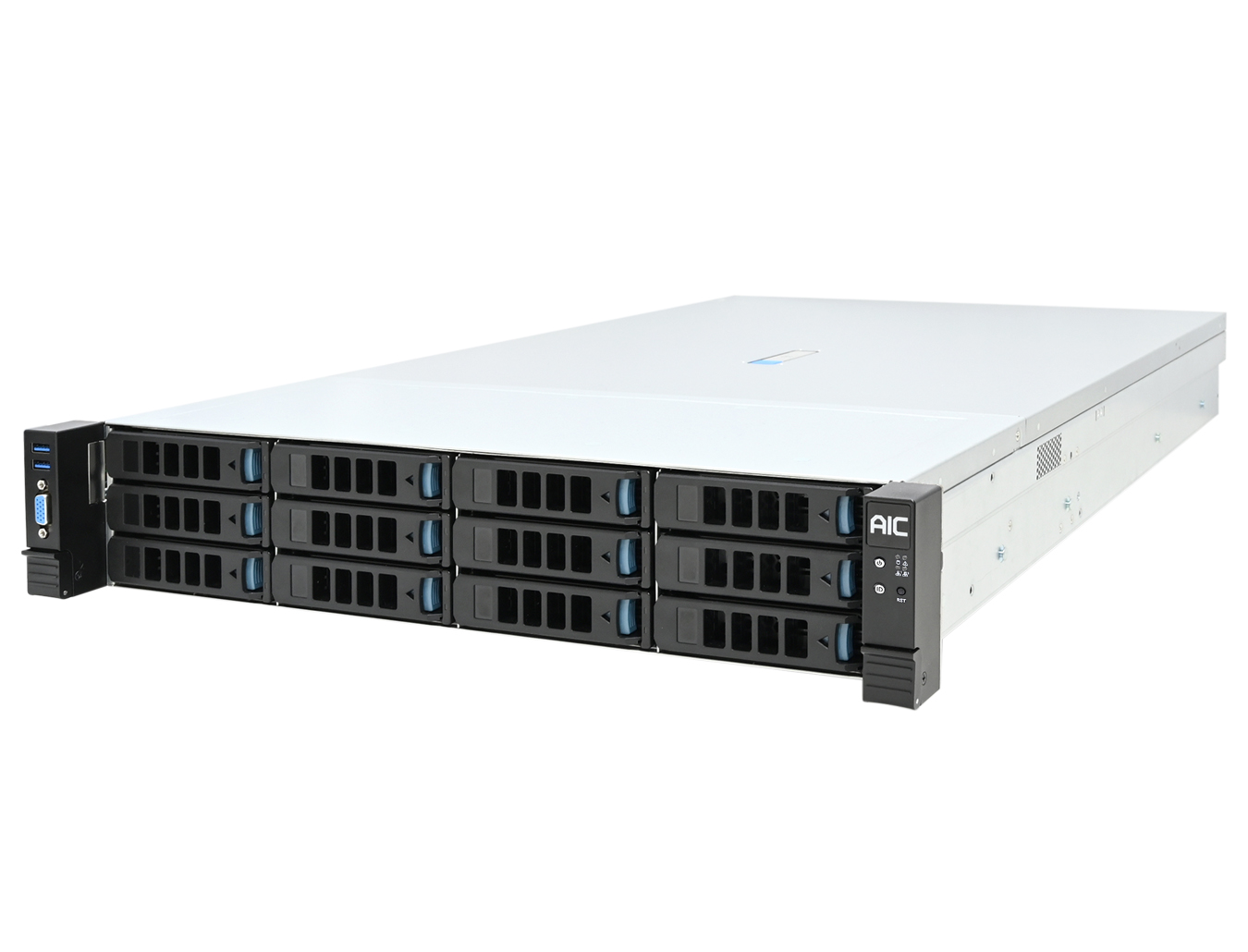

SB202-VA, a 2U general purpose server supports Intel® 4th/5th GEN Xeon® scalable processors, 16x DDR5 RDIMM, and 6x PCIe GEN5 extension slots. SB202-VA has 12 x 3.5”NVMe/SATA/SAS (front) and 2x2.5" SATA (rear) hot-swappable bays to provide highest storage density and optimized performance for the applications.

比較索取報價下載

KEY FEATURE

特色

2U 12-Bay storage server with SATA/SAS/NVMe drives support

特色

Supports dual 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids CPU)

特色

Supports dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU)

特色

Supports DDR5 RDIMM and PCIe Gen5 extensions

特色

Intel® C741 Chipset to provide 5+ years product life cycle

特色

Onboard Baseboard Management Controller for system management and IPMI control

特色

Dedicated BMC management port

特色

Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions

規格

規格
SKU
FRU

規格

Main

Sub

Details

Dimensions

438 x 728 x 87

inches

17.2 x 28.7 x 3.4

Motherboard

AIC Server Board Vega

Processor

Processor Support

• Supports dual 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids CPU)

• Supports dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU)

CPU Interconnection

CPU Interconnection : 16/20GTs

(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)

Socket Type

Socket E1 (LGA-4677-X)

Chipset Support

Intel® C741

System Memory

• DDR5 5600/4800MHz RDIMM (1DPC)

• Total 16 memory slots; 8 slots per CPU (1DPC)

• Supports up to 4TB (3DS RDIMM)

Front Panel

System power on/off, System ID, System reset, 2 x USB3.2 Gen1 ports, and VGA port (optional)

LEDs

Power, ID, LAN 1, LAN 2, Drive, and Alert

Drive Bays

External

• 12 x 3.5”NVMe/SATA/SAS (front)

• 2 x 2.5” SATA (rear)

Internal

2 x M.2/M-Key/2280 (PCIe Gen4)

Backplane

Front:

• 1 x 12-port 3.5” Gen4 Tri-mode

Rear:

• 1 x 2-port 2.5” Tri-mode

Expansion Slots

• 5 x16 PCIe 5.0/CXL1.1

• 1 x8 PCIe 5.0/CXL1.1

• 2 M.2 2280-D5-M PCIe Gen4 x4

(Different SKU may require additional cables and PCIe slot for retimer cards)

Expander Board:

Retimer card

System Bios

Bios Type

AMI UEFI BIOS

Bios Features

• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug

On Board

Devices

SATA :
Emmitsburg PCH on-chip solution
• 2 x SATA3.0 (6 Gb/s) 7-pin connectors
• 1 x Slimline connector (up to 8 SATA ports)

Devices BMC

Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish

Devices Network Controllers

• Realtek RTL8211FS 1GbE for BMC dedicated management port
• Broadcom BCM5720 dual port 1GbE (NCSI for share NIC)

Devices Graphics

• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920x1200 @60Hz 32bpp

Rear I/O

LAN

• 1 x RJ45 GbE connector for BMC dedicate management port

• 2 x RJ45 1GbE connectors

USB

2 x USB3.2 Gen1 Type-A

Video Output

1 x DB-15 VGA connector

Serial Port

1 x COM connector (Audio Jack)

TPM Support

Power Supply

1600W 1+1 redundant power supply 80+ Platinum/Titanium

System Cooling

4 x 8038mm hot-swap fans (Air cooling)

System Management

• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support

Environmental Specifications

• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)

• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)

• Storage operating humidity : 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

Packaging Dimensions (W x D x H)

615 x 1060 x 328
