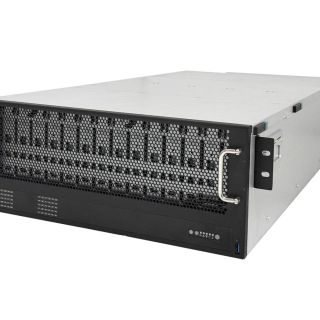

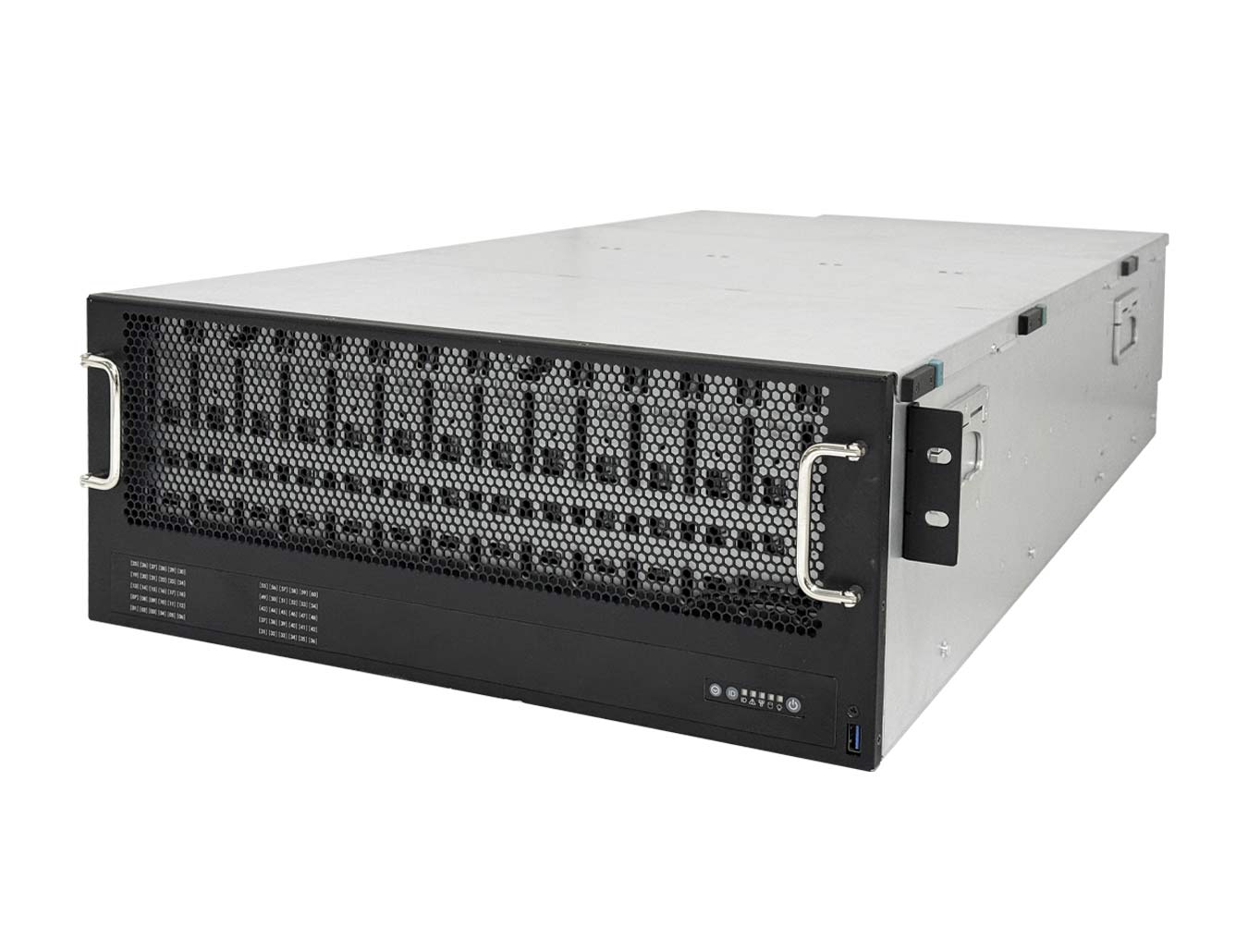

RSC-4H1

RSC-4H1 is a new 4U 60-Bay high-density storage server chassis with tool-less design features. Unlike typical 4U server chassis which accommodate 24 or 36 drives, RSC-4H1 supports 60 top-loading 3.5” drive trays to save rack space, and option in 2/4/6/8 bay 2.5” SATA/SAS or 8bay 2.5” NVMe for OS or cache. It is suitable for cold storage which requires the capacity for vast amount of data but allows slower data retrieval and response time. Some suitable applications include media storage, medical imaging, email archiving, public or private cloud storage and data warehousing. Tool-less features on drive trays, top cover and sliding mechanism make assembly and maintenance quick and easy. (Power supply is included. Motherboard is not included.)

比較索取報價下載

KEY FEATURE

特色

High-density storage server chassis

特色

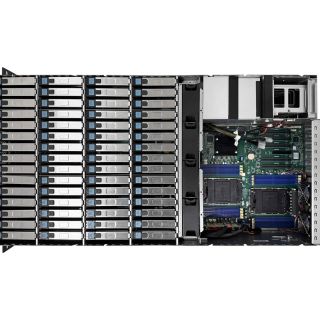

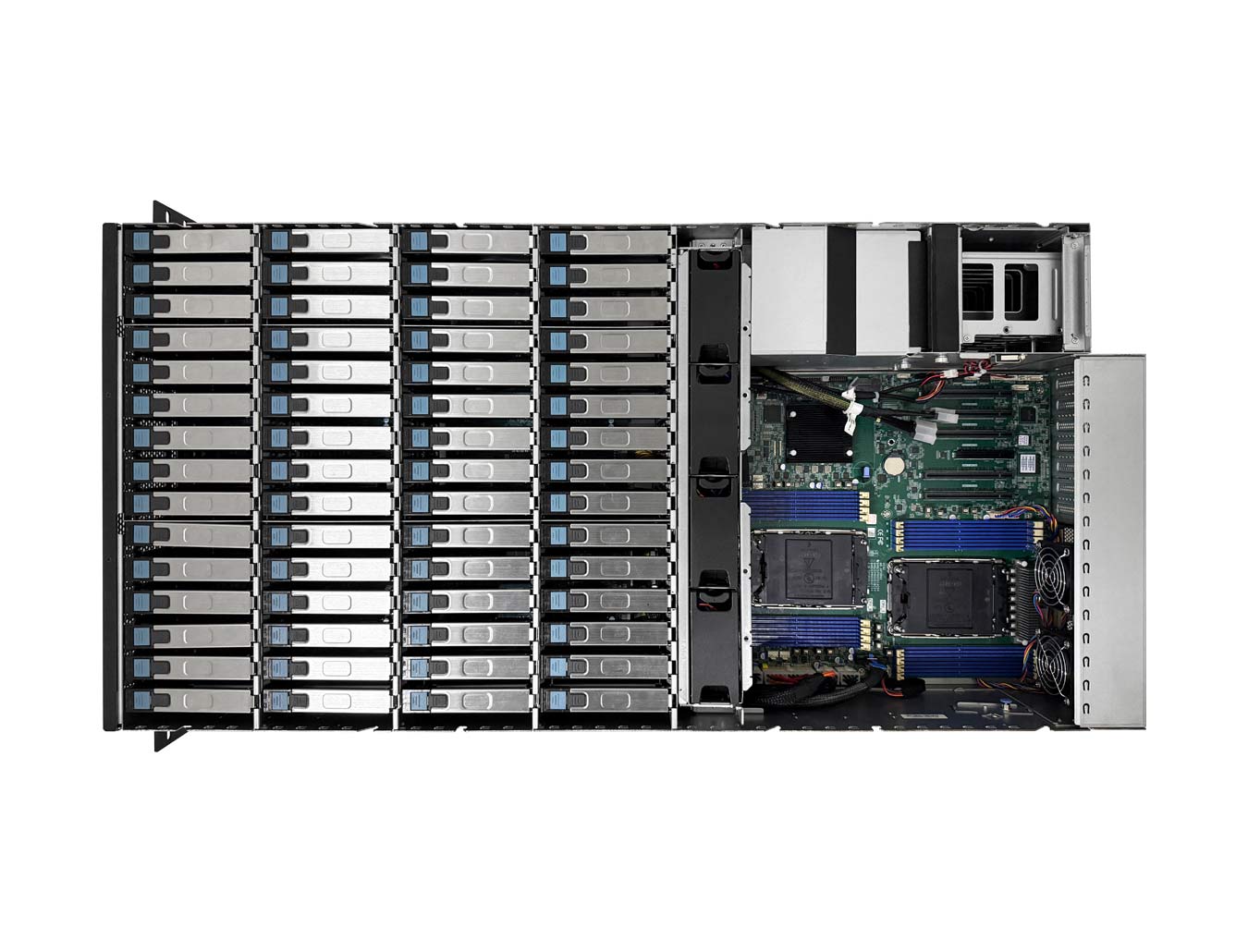

Tool-less design for easy maintenance - Tool-less top cover

特色

60 tool-less top-loading 3.5” drive trays with built-in light pipe for drive status LED

特色

Hot-swap cooling fans and 80+ redundant power supply

特色

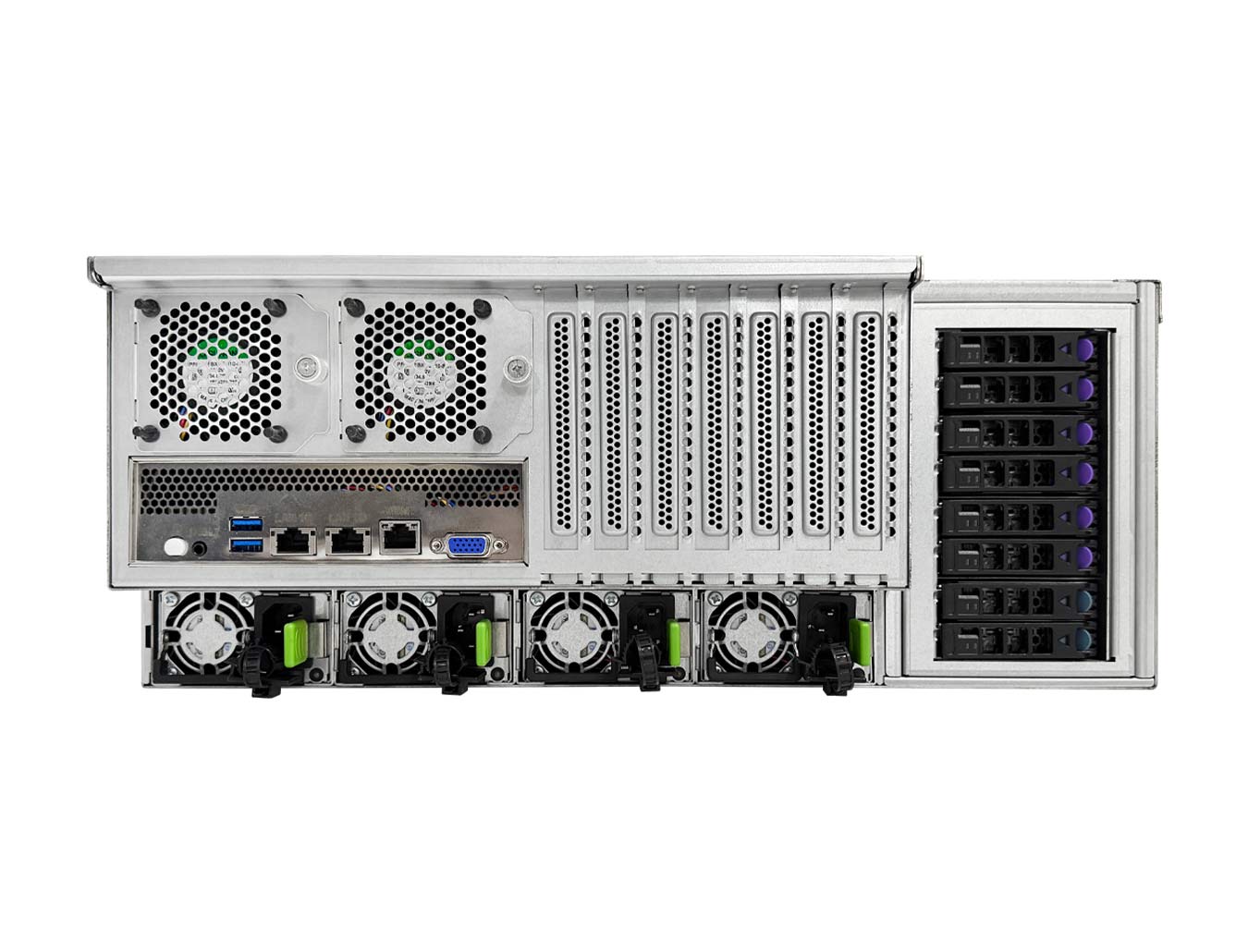

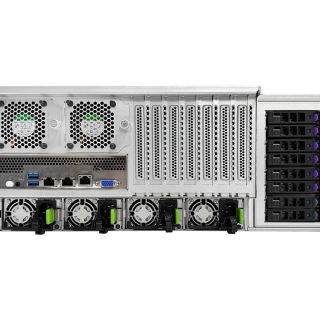

Supports up to 2/4/6/8 x 2.5” hot swap drives for OS

特色

Flexible Motherboard plate design for E-ATX form factor in the market

規格

規格
SKU

規格

Main

Sub

Details

Dimensions

434 x 853 x 176

inches

17.1 x 33.5 x 6.9

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SGCC cold-rolled steel

Color

Front Panel : Black

Cooling

Standard :

• Middle : 4 x 80x38mm hot-swap fans

• Optional : up to 2 x 60x38mm easy-swap fans

Power Supply

Option(s) :

• 800W 2+2 redundant

• 1600W 1+1 redundant

Expansion Slots

7 full height

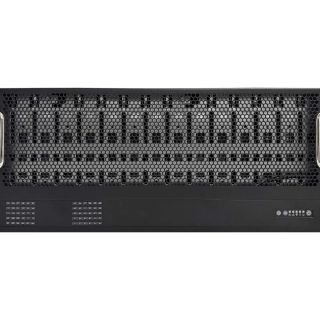

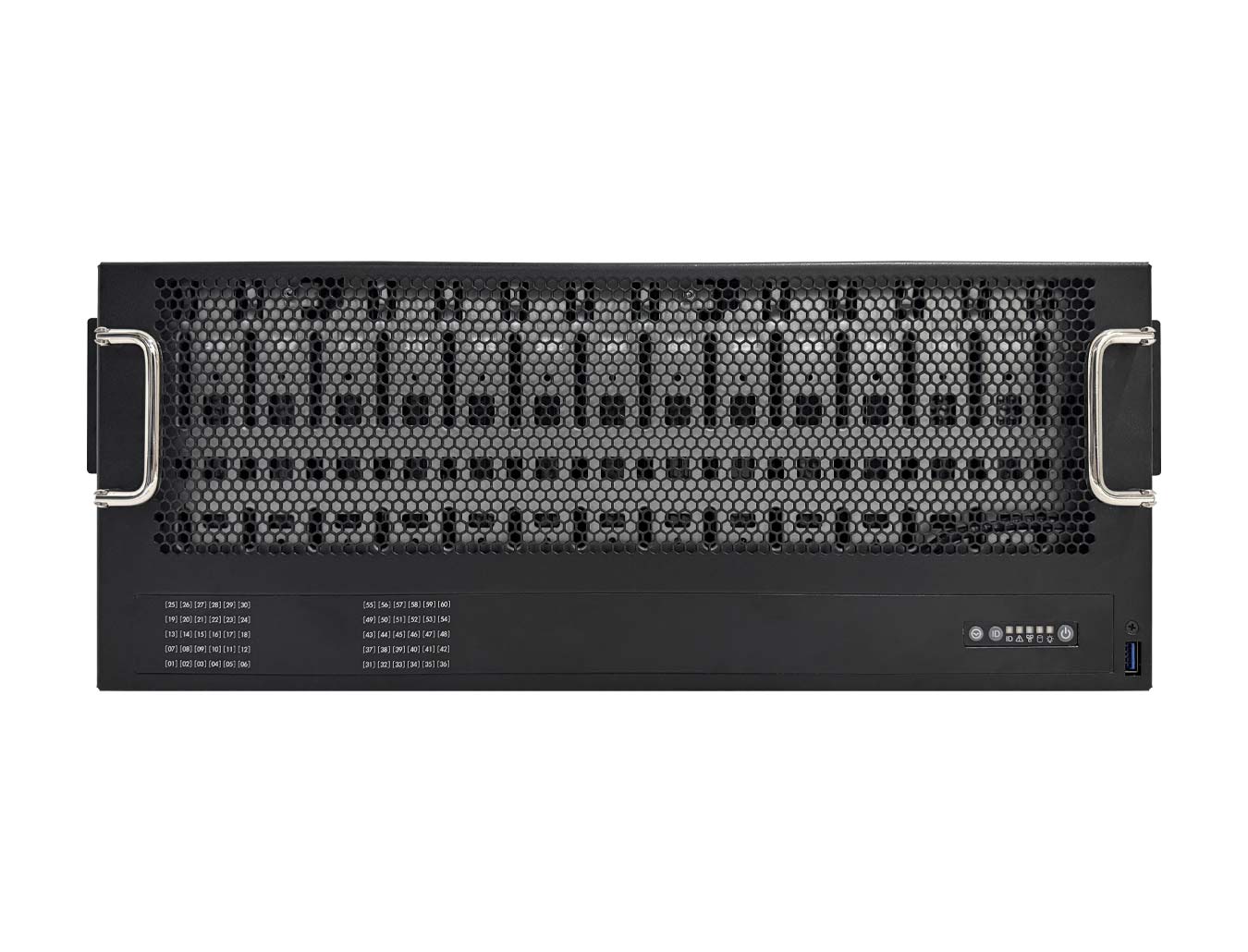

Front Panel

System power on/off, System reset

LED Indicators

Power, ID, Drive

System board

12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays

External

2/4/6/8 x 2.5” hot-swap

Internal

60 x 3.5” hot-swap

Backplane

• 2 x 30-port 12G SAS backplanes with 40-PHY expander

• 2 x 30-port 24G SAS backplanes with 40-PHY expander (TBD)

Storage Temparature

0ºC(32ºF) ~ 50ºC(122ºF)

Humidity

5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

99.2

Packaging Dimensions (W x D x H)

586 x 1110 x 400

inches

23 x 43.7 x 15.7

Cubic Feet

9.25

Container Load Quantity

20'

100

40'

212

40' H

255

Mounting

Standard : 37” tool-less slide rail

Option : Cable Management Kit

* 所有規格如有變更，恕不另行通知。

SKU Information	Description
XE1-4H002-01	4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 2x 2.5" SATA hot-swap OS (with SATA cable x 2), 800W 2+2 redundant power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 37" slide rail (for 1M and over 1M rack or post to post 671~940mm rack), pallet
XE1-4H002-02	4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 2x 2.5" SATA hot-swap OS (with SATA cable x 2), 1600W 1+1 redundant power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 37" slide rail (for 1M and over 1M rack or post to post 671~940mm rack), pallet
XE1-4H002-03	4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 8x 2.5" tri-mode hot-swap (without data cable), 800W 2+2 redundant power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 37" slide rail (for 1M and over 1M rack or post to post 671~940mm rack), pallet
XE1-4H002-07	4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 8x 2.5" tri-mode hot-swap (without data cable), 1600W 1+1 redundant power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 37" slide rail (for 1M and over 1M rack or post to post 671~940mm rack), pallet
XE1-4H002-08	4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 2x 2.5" SATA hot-swap OS (with SATA cable x 2), 800W 2+2 Titanium redundant power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 37" slide rail (for 1M and over 1M rack or post to post 671~940mm rack), pallet
